STARTER MOTOR Connector End View (F28)

Connector Color: -

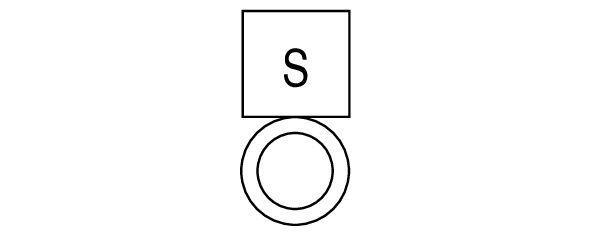

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

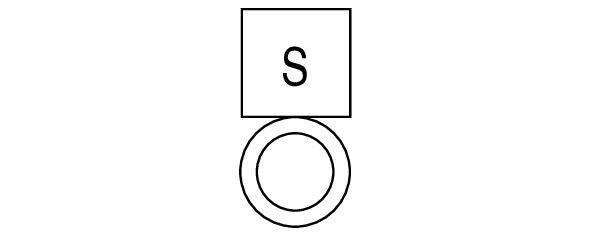

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
S	W	- (M/T WITHOUT INTELLIGENT KEY SYSTEM)
S	R	- (WITH CVT OR M/T WITH INTELLIGENT KEY SYSTEM)

Circuit Diagram

Fig 3: STARTING SYSTEM - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: STARTING SYSTEM - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

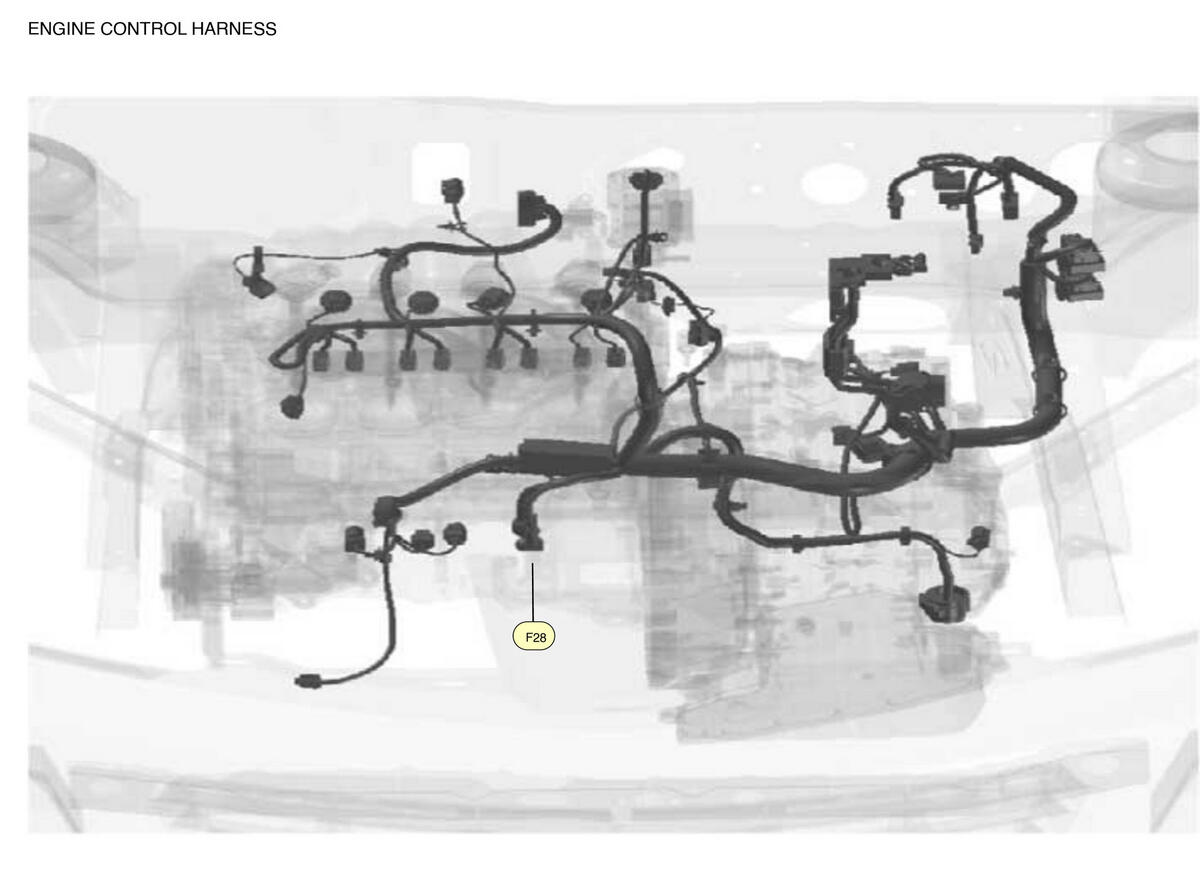

Fig 5: ENGINE CONTROL HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 6: IGNITION POWER SUPPLY

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: 24340 ED023
