PRIMARY SPEED SENSOR Connector End View (F50)

Connector Color: BLACK

Fig 1: Terminal-side

GNSW82995

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

GNSW82994

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	-
2	LG/R	-
3	R	-

Circuit Diagram

Fig 3: CVT CONTROL SYSTEM

GNSW82788

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

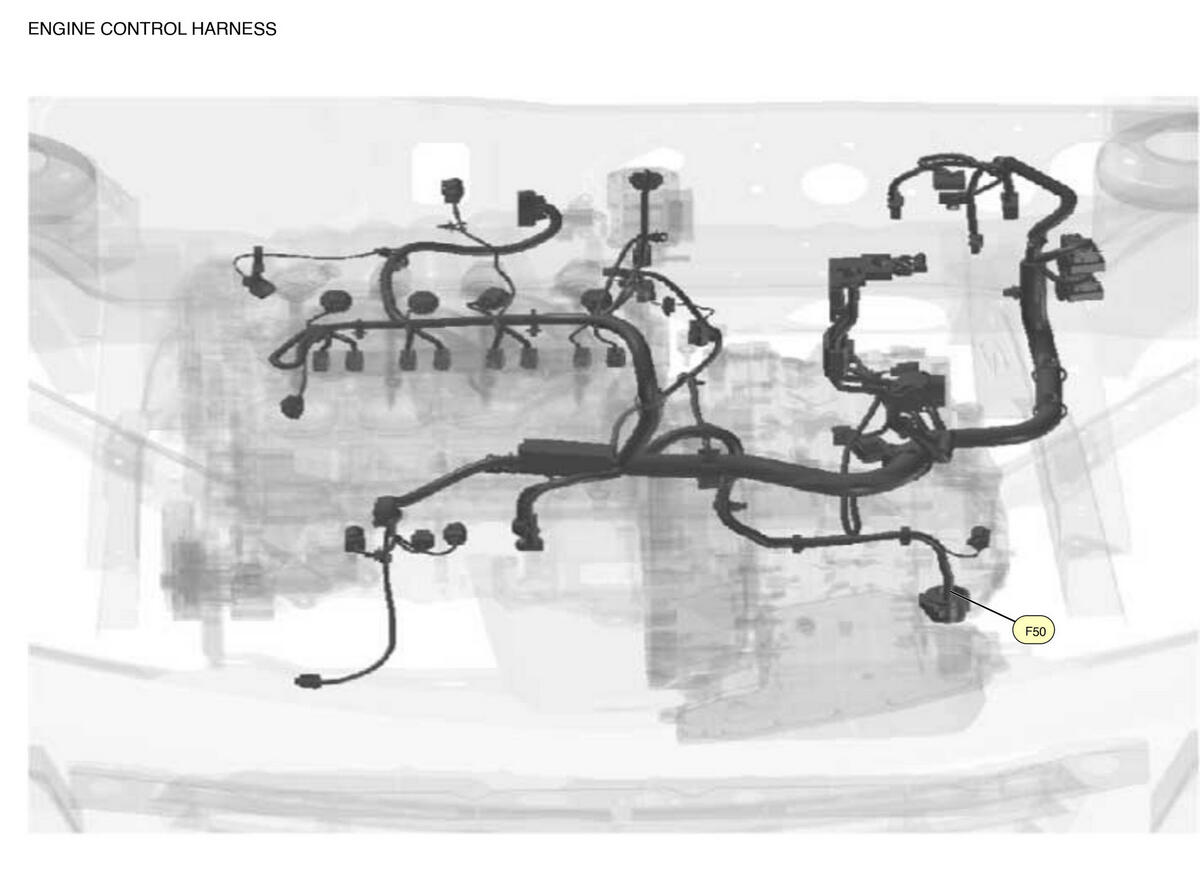

Fig 4: ENGINE CONTROL HARNESS

GNSW83164_LK_F050

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 5: IGNITION POWER SUPPLY

GNSW83180

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: IGNITION POWER SUPPLY FUSE No. 49

GNSW83189

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: RK03FB
