KEY SWITCH Connector End View (M27)

Connector Color: BROWN

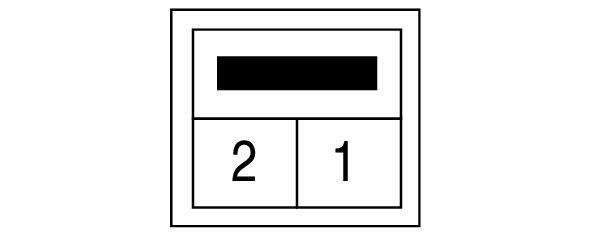

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

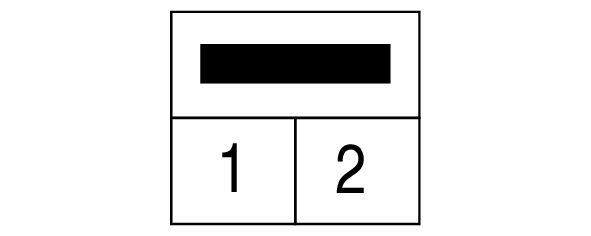

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	Y	-
2	LG	-

Circuit Diagram

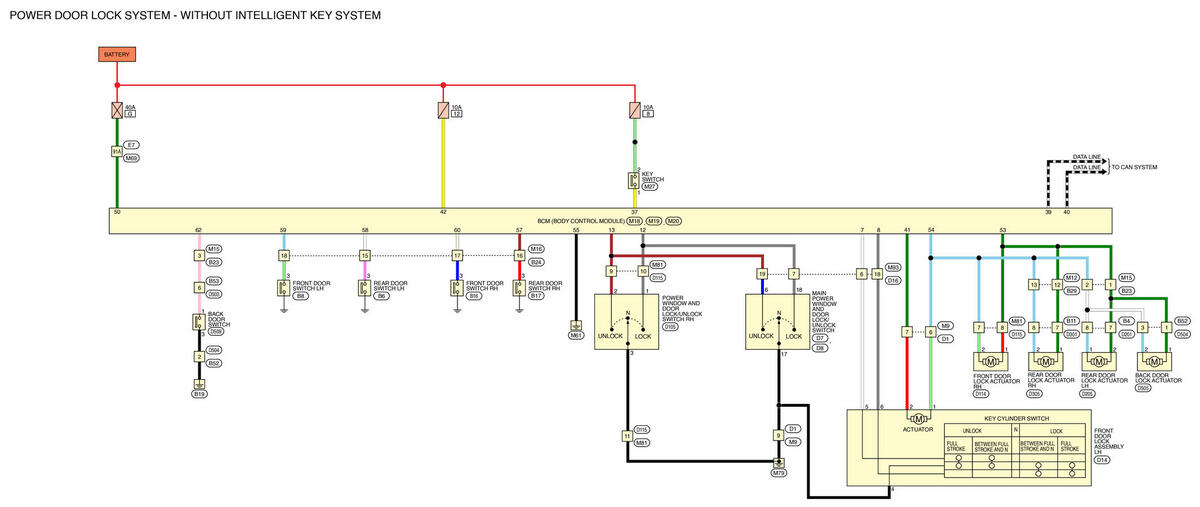

Fig 3: POWER DOOR LOCK SYSTEM - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

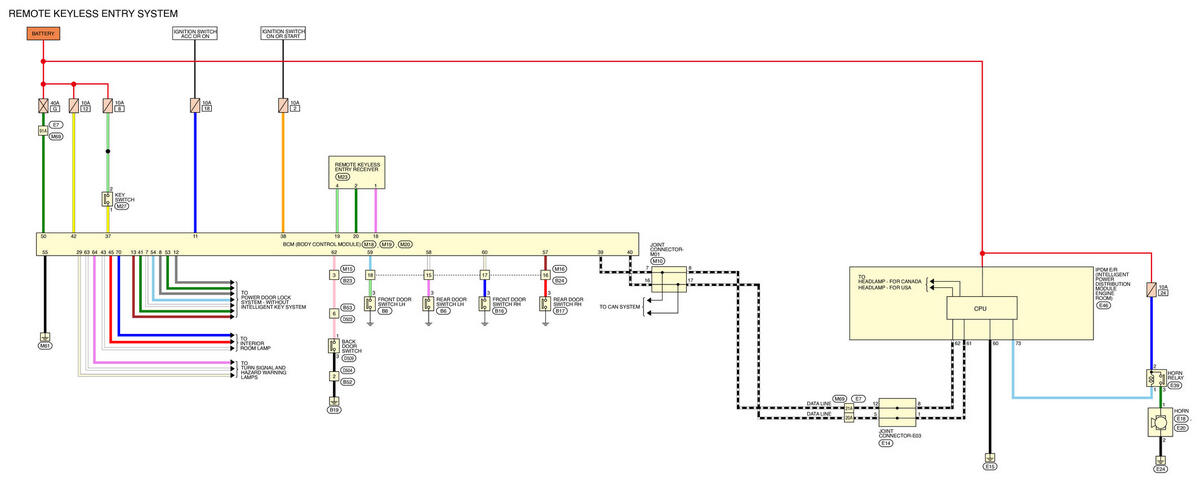

Fig 4: REMOTE KEYLESS ENTRY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: BCM (BODY CONTROL MODULE) - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: WARNING CHIME SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

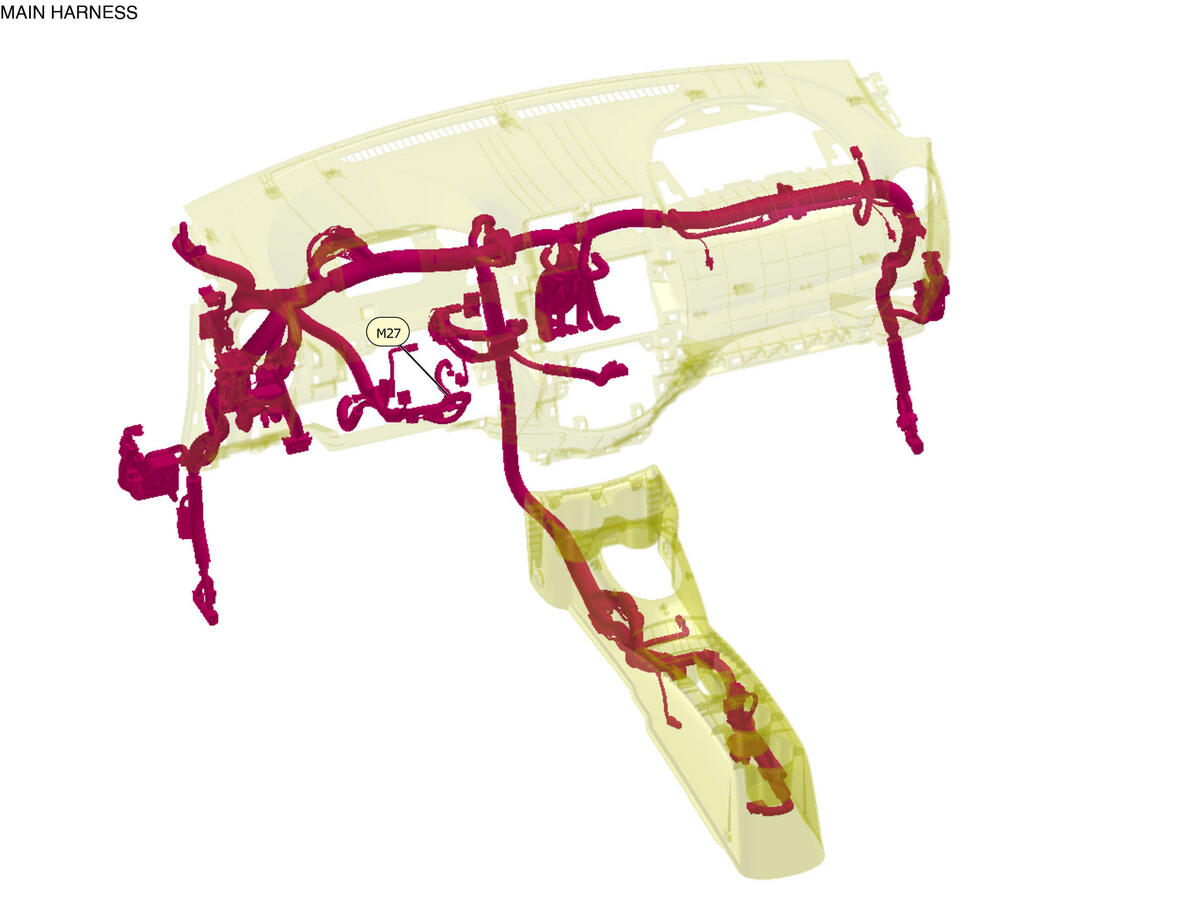

Fig 7: MAIN HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 8: BATTERY POWER SUPPLY

Courtesy of NISSAN NORTH AMERICA, INC.

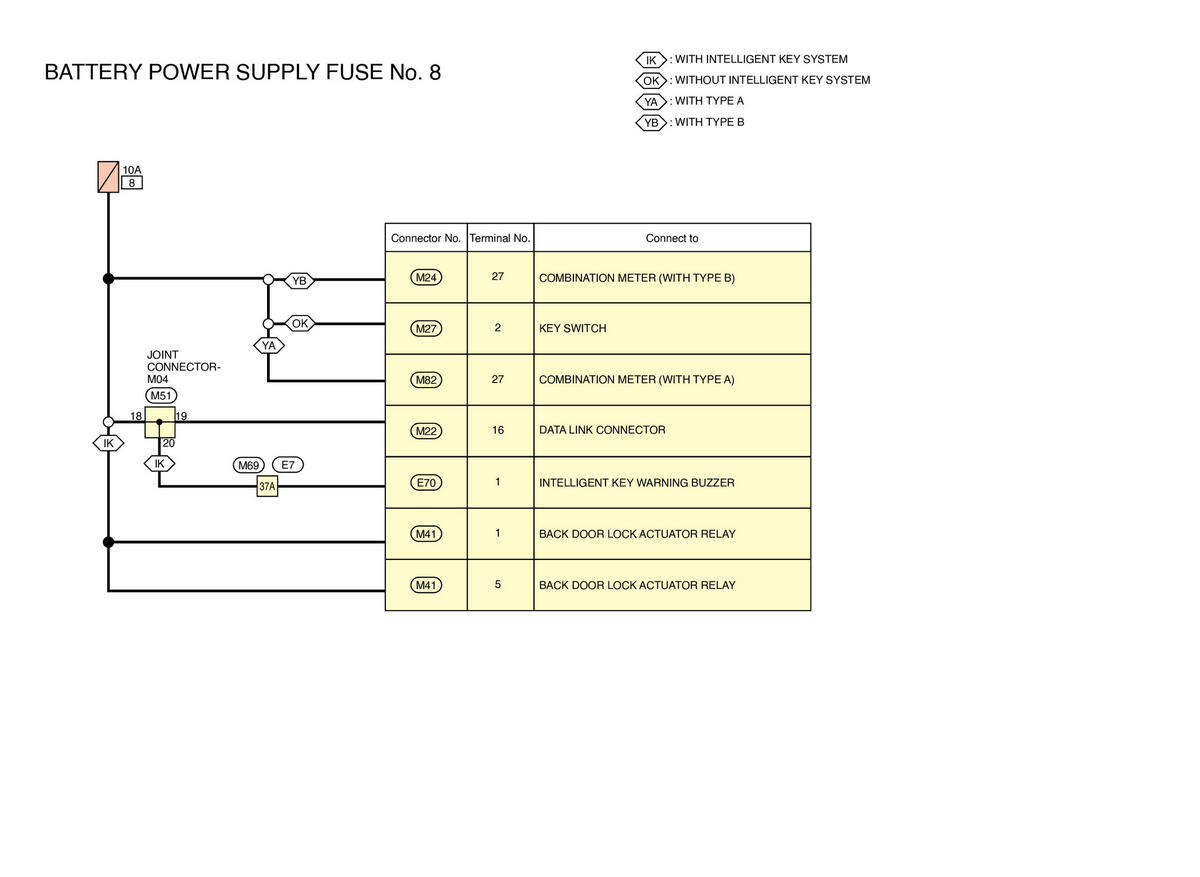

Fig 9: BATTERY POWER SUPPLY FUSE No. 8

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: TK02MBR-P
