JOINT CONNECTOR-M03 Connector End View (M5)

Connector Color:  WHITE

Fig 1: Terminal-side
GNSW82911Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Harness-side
GNSW82910Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 GR -
2 - -
3 GR -
4 B -
5 B -
6 B -
7 LG -
8 R -
9 R -
10 BG -
11 L -
12 G -
13 P -
14 BG -
15 - -
16 - -
17 BG -
18 Y -
19 - -
20 BG -

Circuit Diagram

Fig 3: ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM
GNSW82746Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: SRS AIR BAG CONTROL SYSTEM
GNSW82747Courtesy of NISSAN NORTH AMERICA, INC.

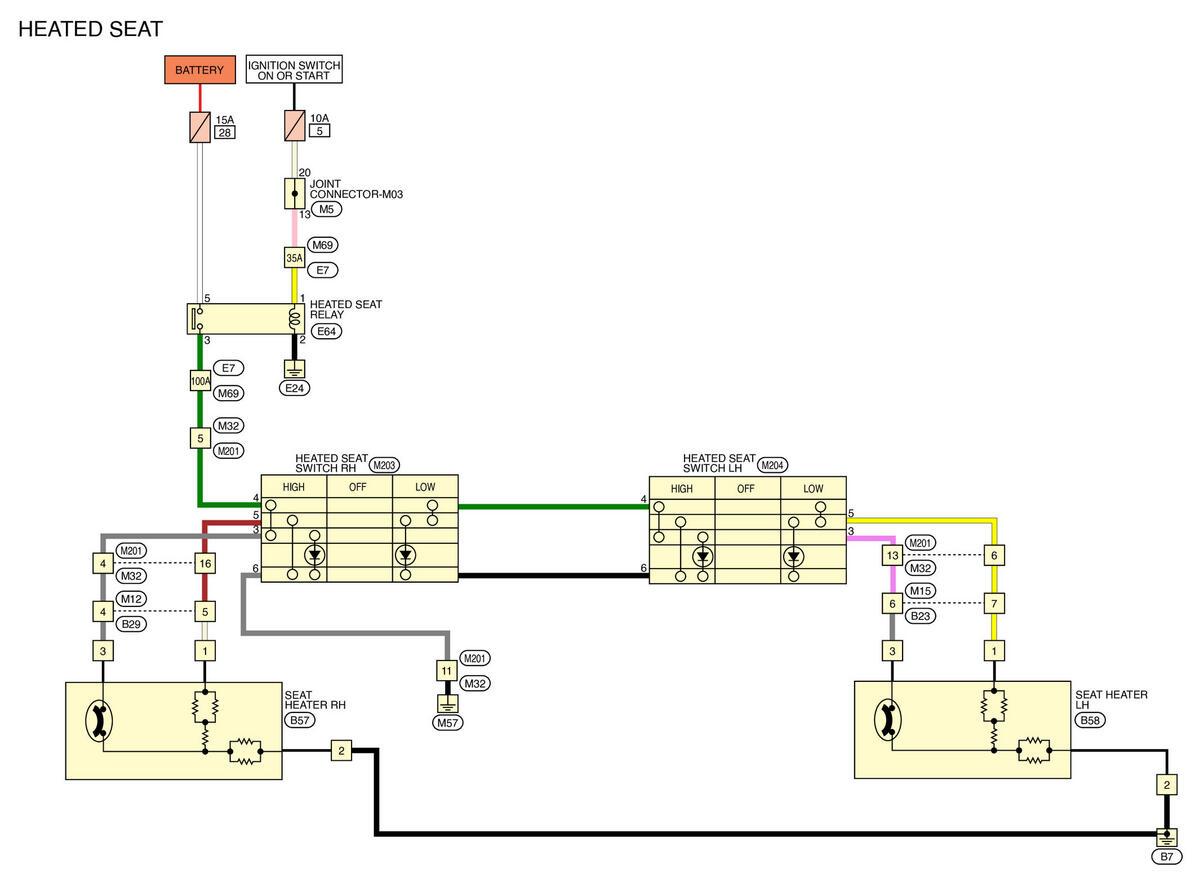

Fig 5: HEATED SEAT
GNSW82749Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: INTELLIGENT KEY SYSTEM
GNSW82751Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
GNSW82755Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: NVIS - WITH INTELLIGENT KEY SYSTEM
GNSW82756Courtesy of NISSAN NORTH AMERICA, INC.

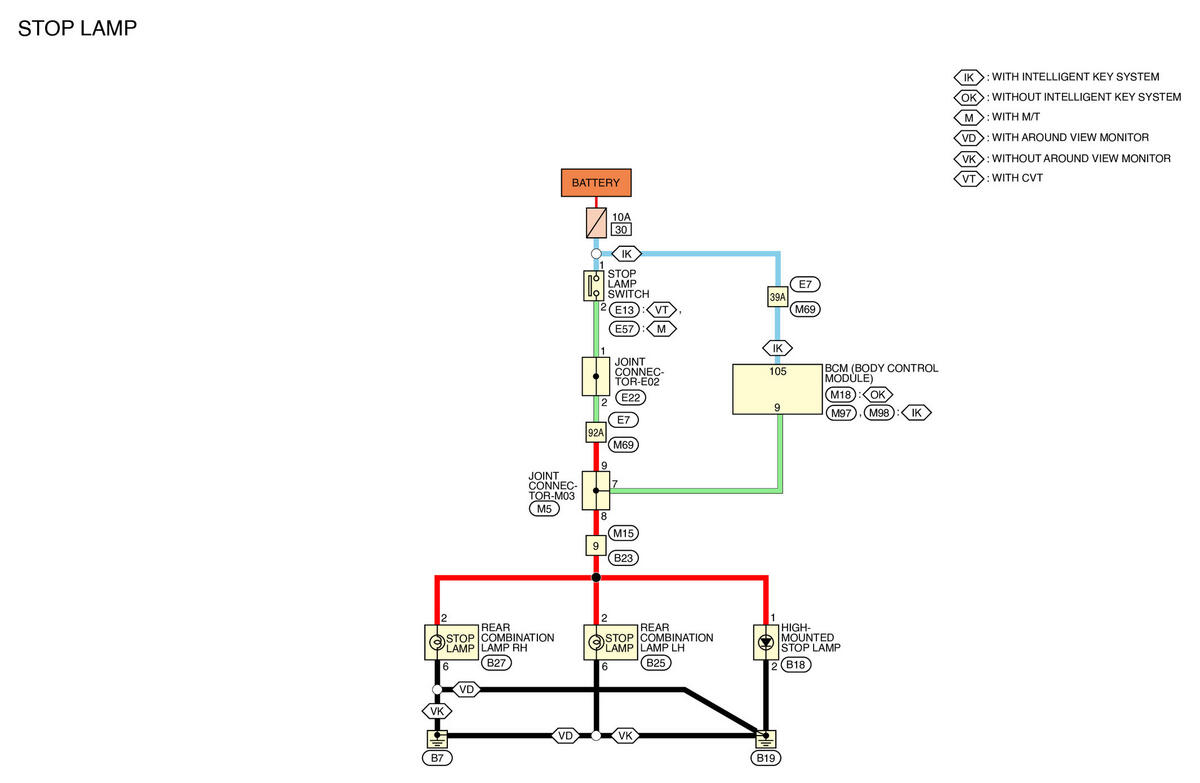

Fig 9: STOP LAMP
GNSW82758Courtesy of NISSAN NORTH AMERICA, INC.

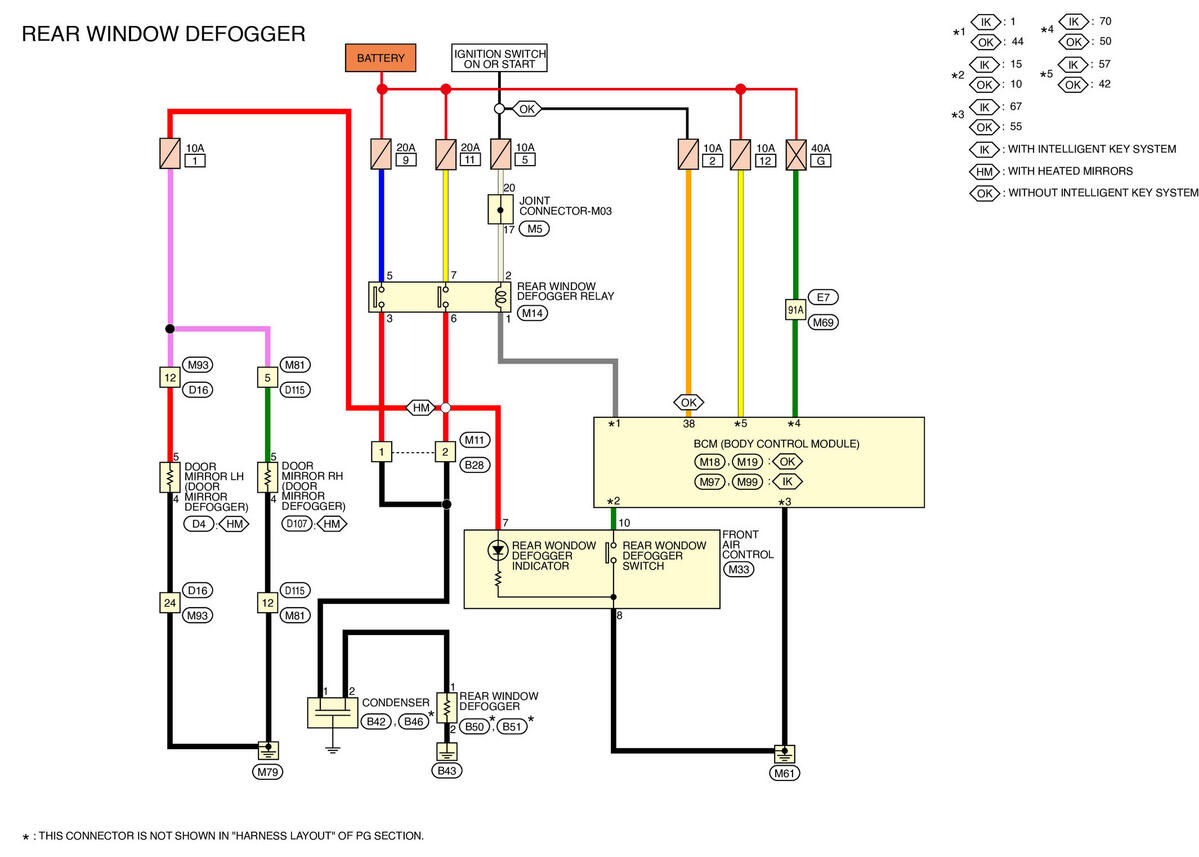

Fig 10: REAR WINDOW DEFOGGER
GNSW82760Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: POWER DISTRIBUTION SYSTEM
GNSW82777Courtesy of NISSAN NORTH AMERICA, INC.

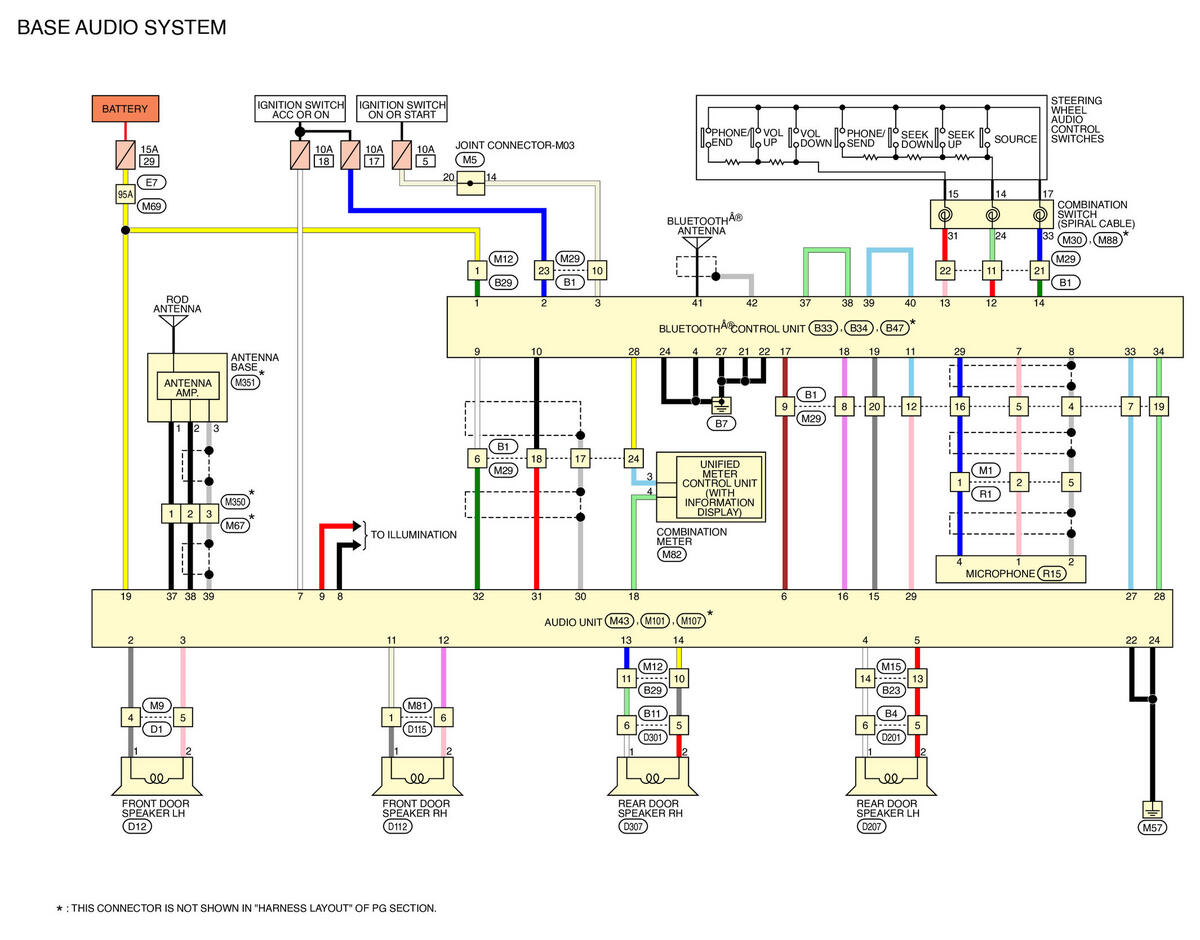

Fig 12: BASE AUDIO SYSTEM
GNSW82783Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: NAVIGATION SYSTEM
GNSW82785Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: ENGINE CONTROL SYSTEM
GNSW82787Courtesy of NISSAN NORTH AMERICA, INC.

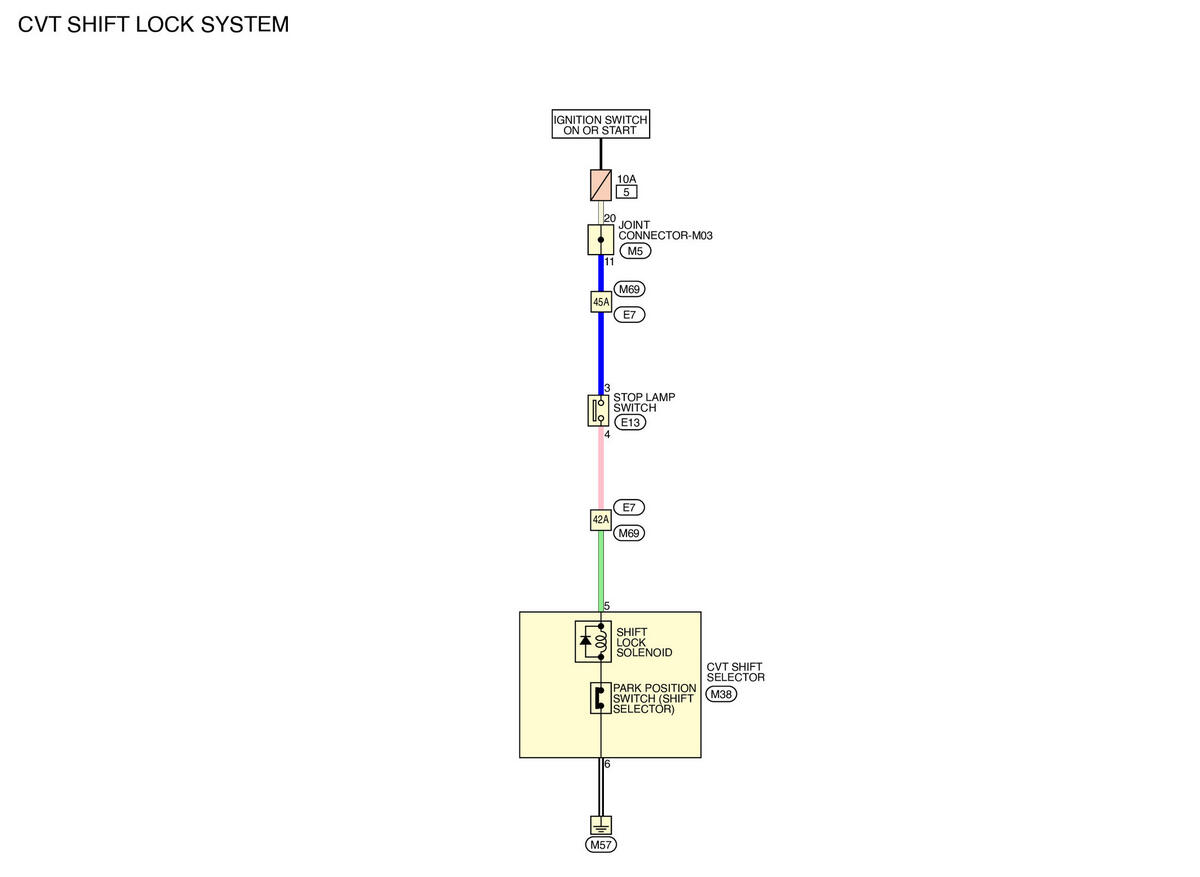

Fig 15: CVT SHIFT LOCK SYSTEM
GNSW82789Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

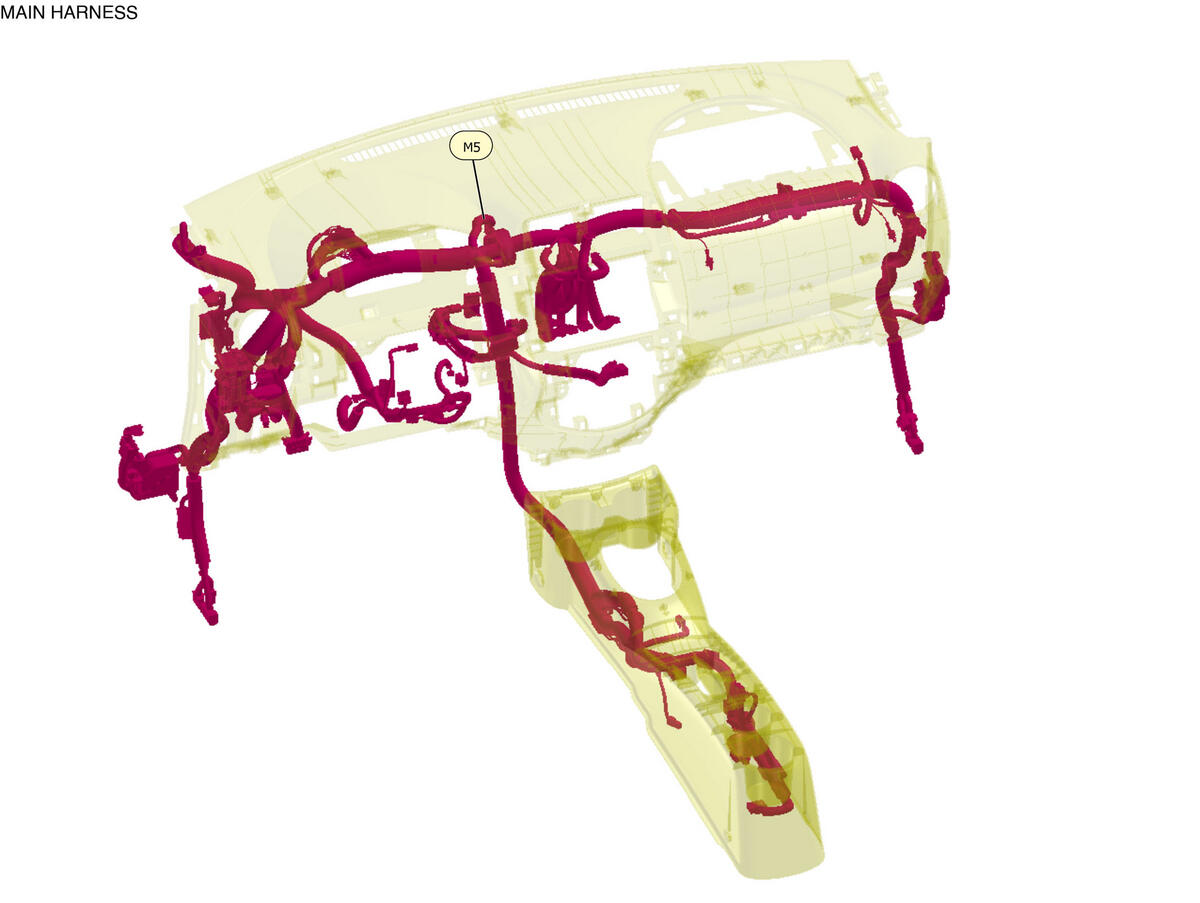

Fig 16: MAIN HARNESS
GNSW83162_LK_M005Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

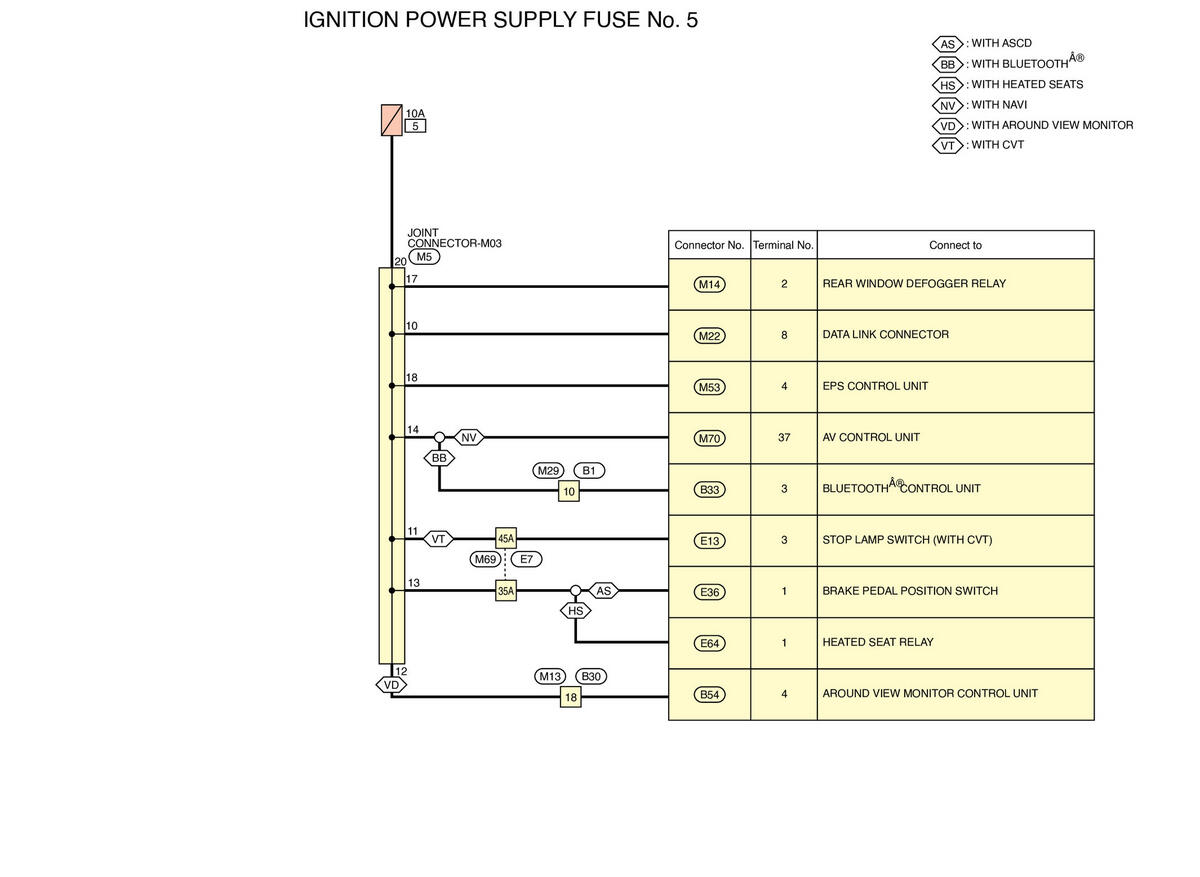

Fig 17: IGNITION POWER SUPPLY FUSE No. 5
GNSW83186Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  NH20FW-DC
