JOINT CONNECTOR-M02 Connector End View (M8)

Connector Color: GREEN

Fig 1: Terminal-side

GNSW82911

Courtesy of NISSAN NORTH AMERICA, INC.

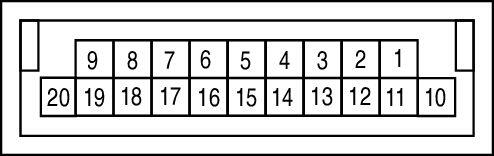

Fig 2: Harness-side

GNSW82910

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	-	-
2	-	-
3	-	-
4	-	-
5	-	-
6	-	-
7	L	-
8	L	-
9	L	-
10	-	-
11	-	-
12	-	-
13	-	-
14	-	-
15	-	-
16	-	-
17	-	-
18	P	-
19	P	-
20	P	-

Circuit Diagram

Fig 3: BRAKE CONTROL SYSTEM

GNSW82745

Courtesy of NISSAN NORTH AMERICA, INC.

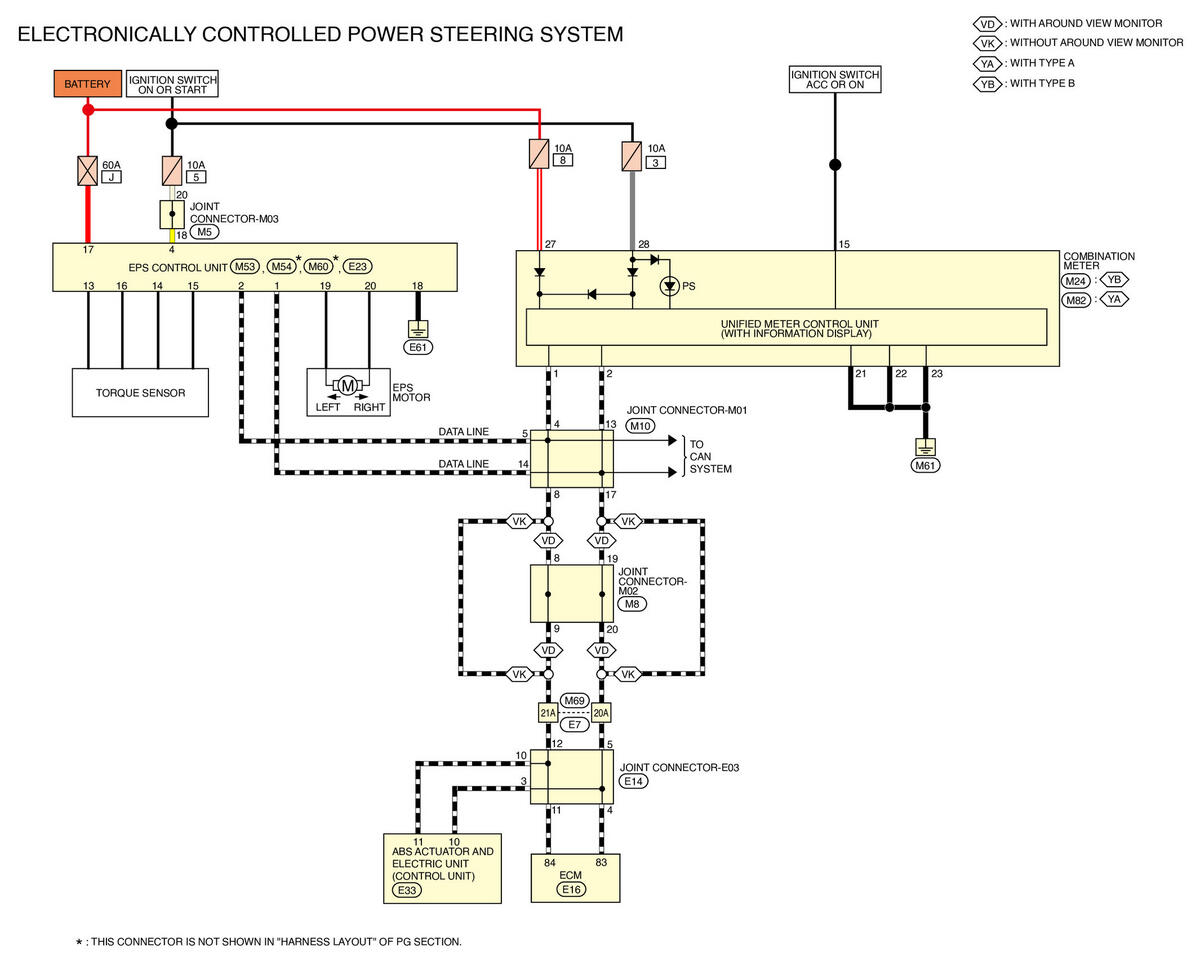

Fig 4: ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM

GNSW82746

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: AIR CONDITIONER CONTROL

GNSW82748

Courtesy of NISSAN NORTH AMERICA, INC.

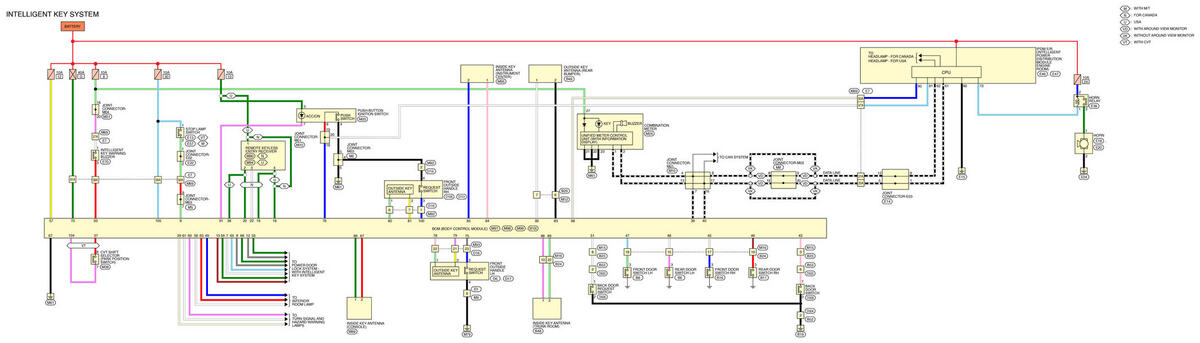

Fig 6: INTELLIGENT KEY SYSTEM

GNSW82751

Courtesy of NISSAN NORTH AMERICA, INC.

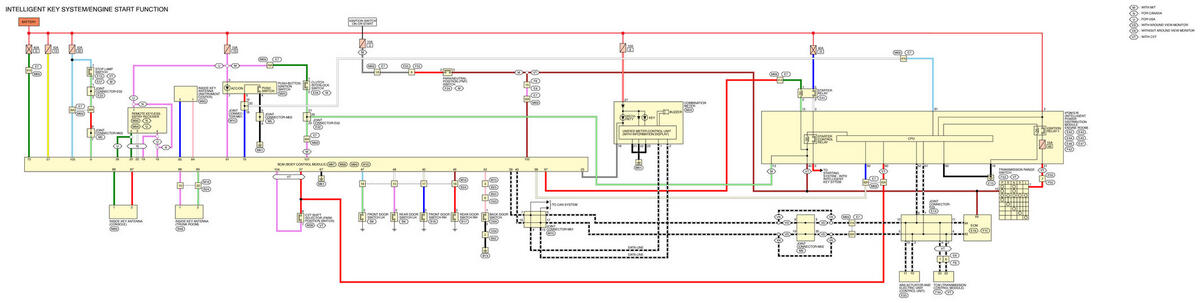

Fig 7: INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

GNSW82755

Courtesy of NISSAN NORTH AMERICA, INC.

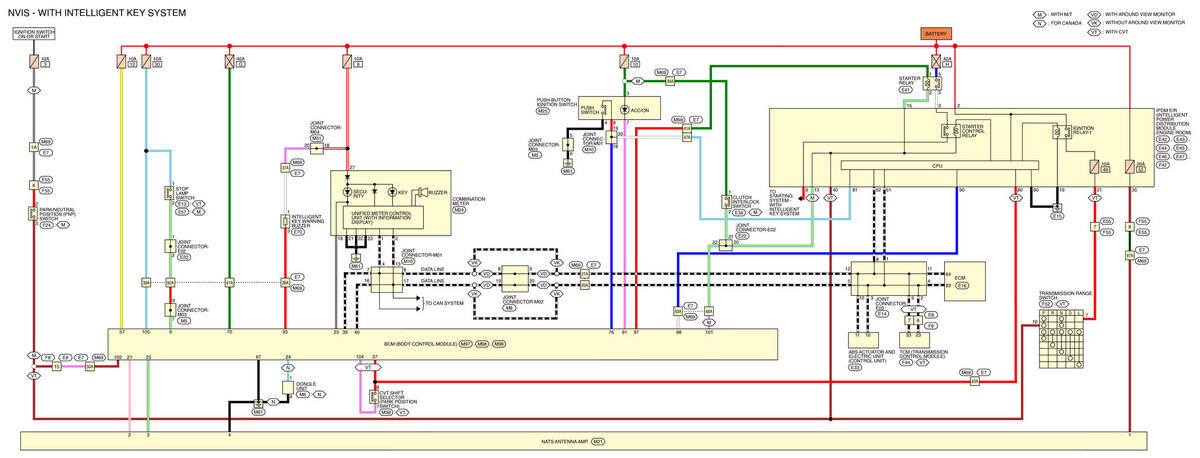

Fig 8: NVIS - WITH INTELLIGENT KEY SYSTEM

GNSW82756

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: HEADLAMP - FOR USA

GNSW82761

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: DAYTIME RUNNING LIGHT SYSTEM

GNSW82762

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: FRONT FOG LAMP

GNSW82763

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: ILLUMINATION

GNSW82766

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: PARKING, LICENSE PLATE AND TAIL LAMPS

GNSW82768

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: FRONT WIPER AND WASHER SYSTEM

GNSW82770

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: HEADLAMP - FOR CANADA

GNSW82772

Courtesy of NISSAN NORTH AMERICA, INC.

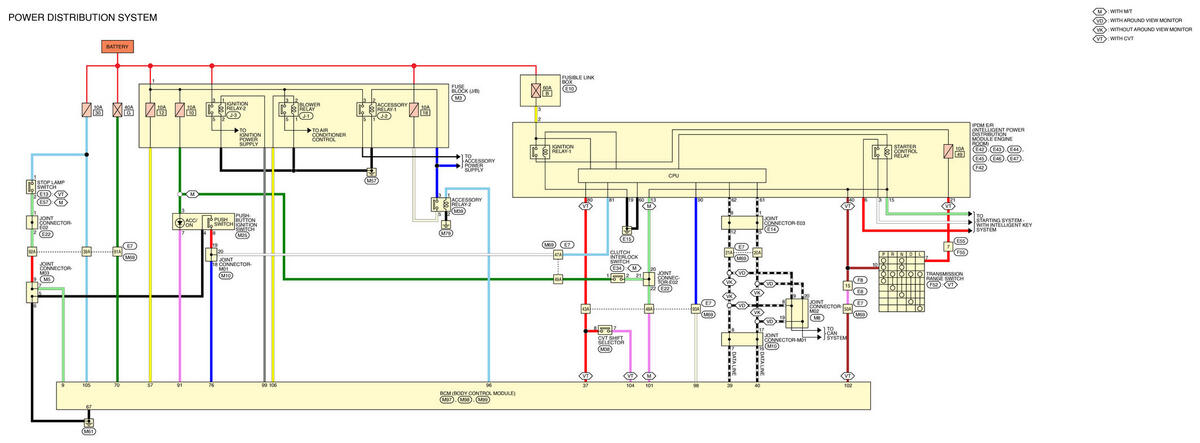

Fig 16: POWER DISTRIBUTION SYSTEM

GNSW82777

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: WARNING CHIME SYSTEM

GNSW82781

Courtesy of NISSAN NORTH AMERICA, INC.

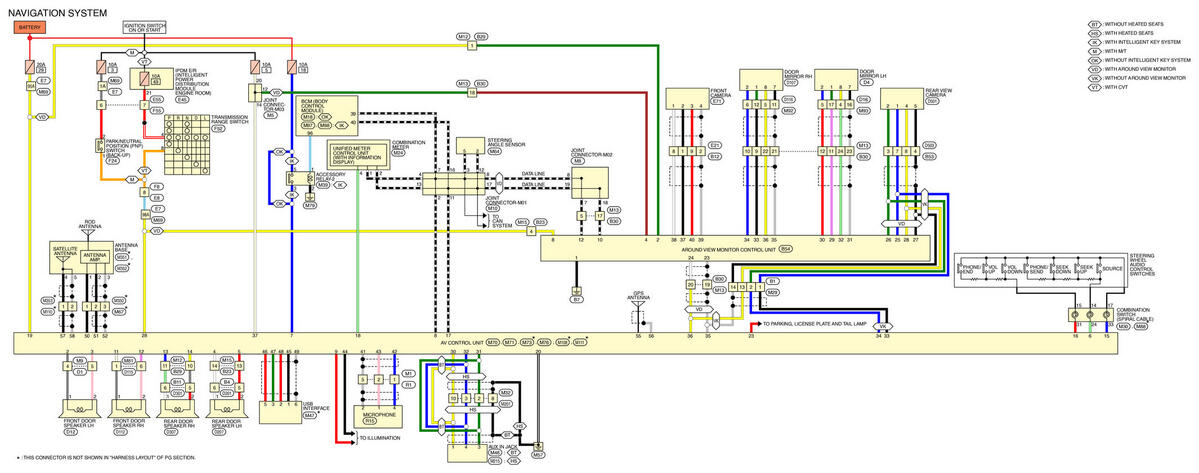

Fig 18: NAVIGATION SYSTEM

GNSW82785

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: METER - TYPE B

GNSW82786

Courtesy of NISSAN NORTH AMERICA, INC.

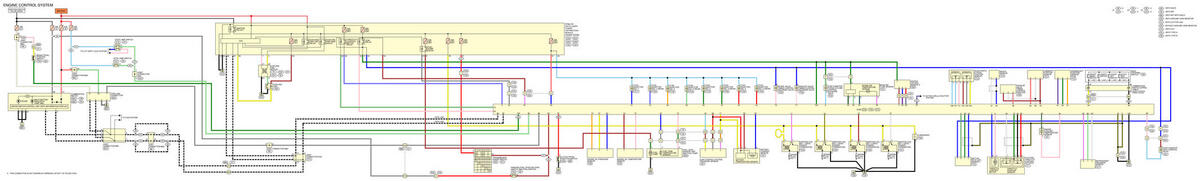

Fig 20: ENGINE CONTROL SYSTEM

GNSW82787

Courtesy of NISSAN NORTH AMERICA, INC.

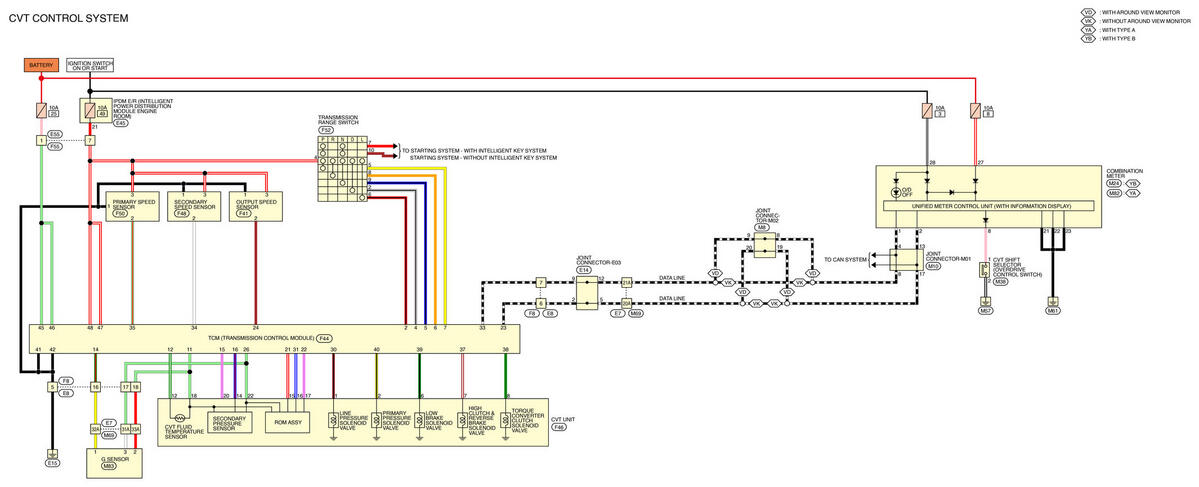

Fig 21: CVT CONTROL SYSTEM

GNSW82788

Courtesy of NISSAN NORTH AMERICA, INC.

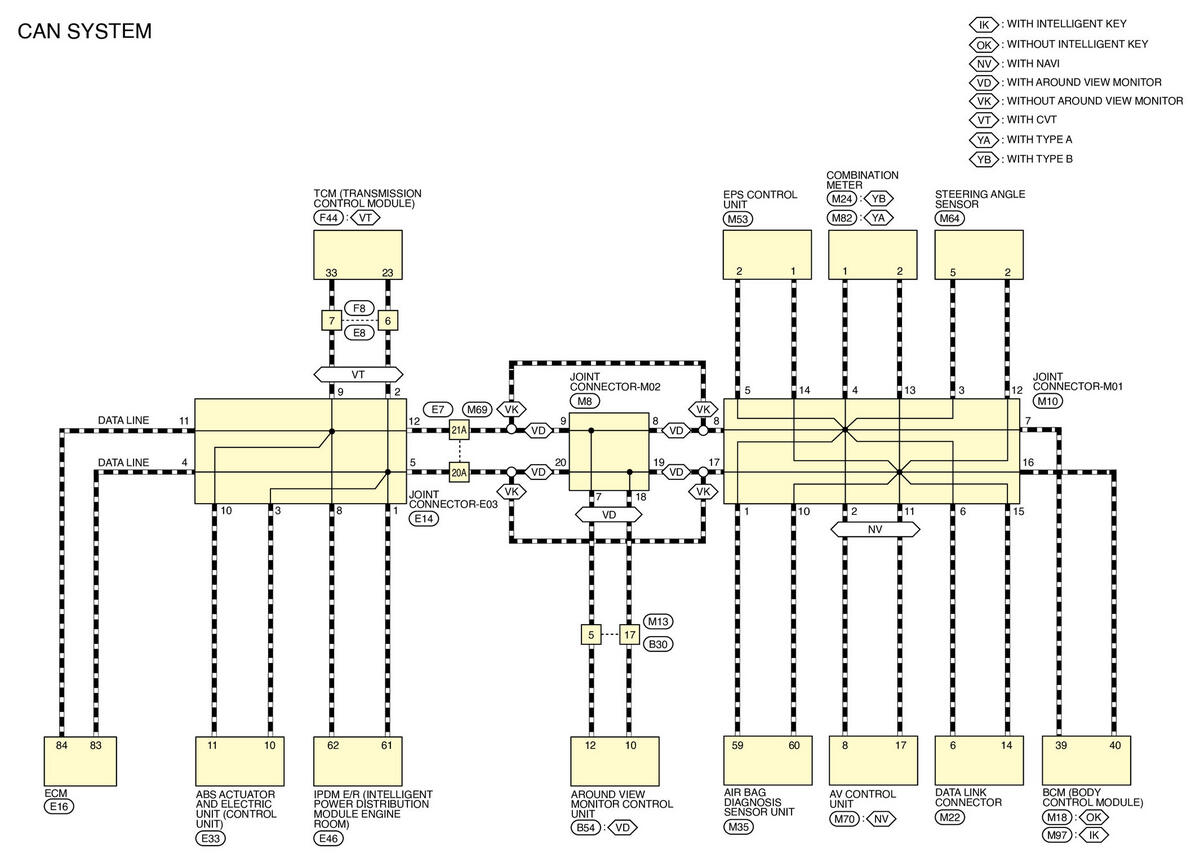

Fig 22: CAN SYSTEM

GNSW83196

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

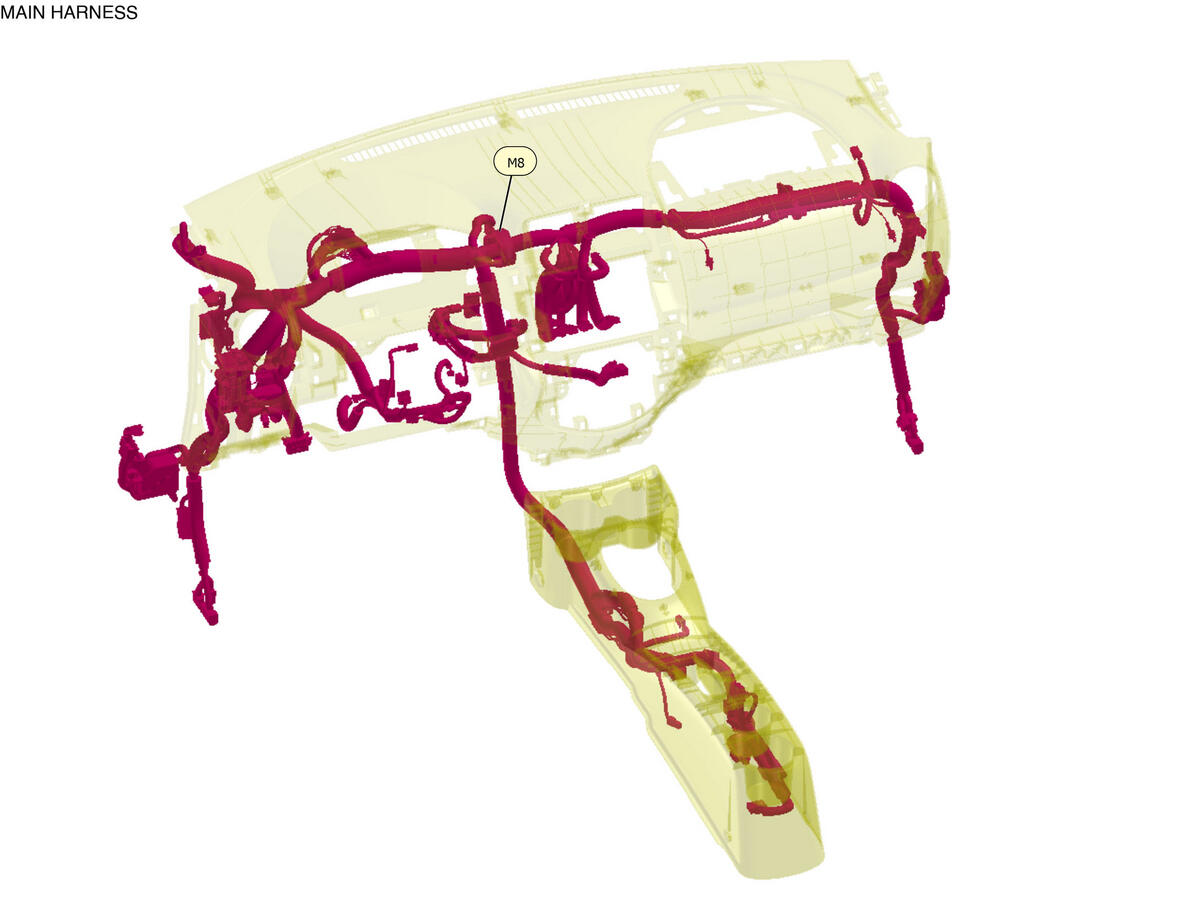

Fig 23: MAIN HARNESS

GNSW83162_LK_M008

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 24: IGNITION POWER SUPPLY

GNSW83180

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: NH20FG-DC
