ECM Connector End View (E16)

Connector Color: BLACK

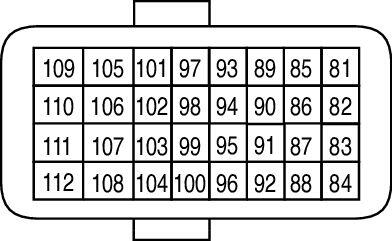

Fig 1: Terminal-side

GNSW82979

Courtesy of NISSAN NORTH AMERICA, INC.

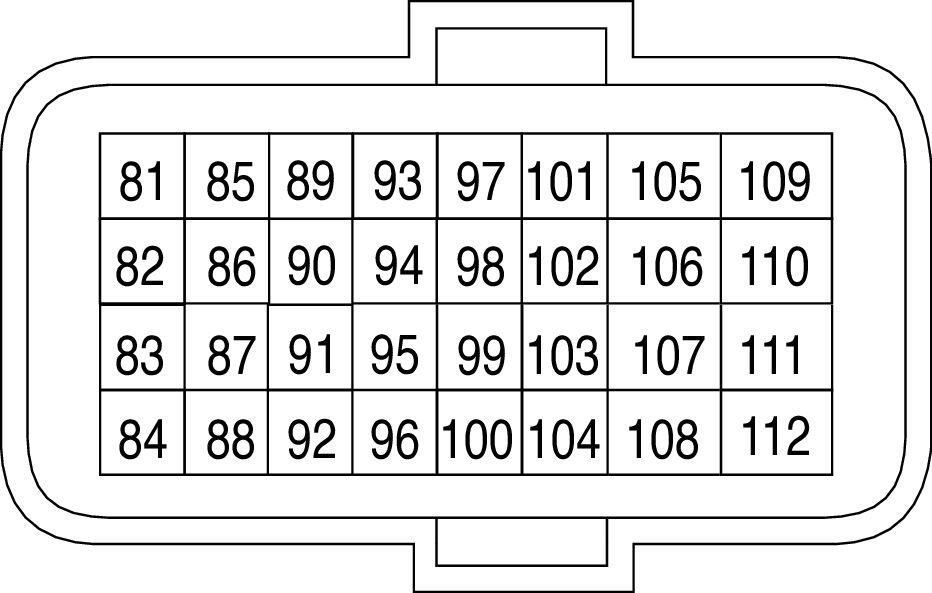

Fig 2: Harness-side

GNSW82978

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
81	V	POWER SUPPLY FOR ECM (BACK-UP)
82	-	-
83	P	CAN-L
84	L	CAN-H
85	V	REFRIGERANT PRESSURE SENSOR
86	-	-
87	-	-
88	GR	DATA LINK CONNECTOR
89	-	-
90	-	-
91	-	-
92	R	CLUTCH PEDAL POSITION SWITCH
93	L	IGNITION SWITCH
94	Y	ASCD STEERING SWITCH
95	B	SENSOR GROUND (ASCD STEERING SWITCH)
96	-	-
97	-	-
98	LG	SENSOR GROUND (REFRIGERANT PRESSURE SENSOR)
99	LG	STOP LAMP SWITCH
100	G	BRAKE PEDAL POSITION SWITCH
101	W	SENSOR POWER SUPPLY (REFRIGERANT PRESSURE SENSOR)
102	BR	SENSOR POWER SUPPLY (APP SENSOR 2)
103	GR	ACCELERATOR PEDAL POSITION SENSOR 2
104	Y	SENSOR GROUND (APP SENSOR 2)
105	G	POWER SUPPLY FOR ECM
106	V	SENSOR POWER SUPPLY (APP SENSOR 1)
107	-	-
108	B	ECM GROUND
109	-	-
110	SB	ACCELERATOR PEDAL POSITION SENSOR 1
111	P	SENSOR GROUND (APP SENSOR 1)
112	-	-

Circuit Diagram

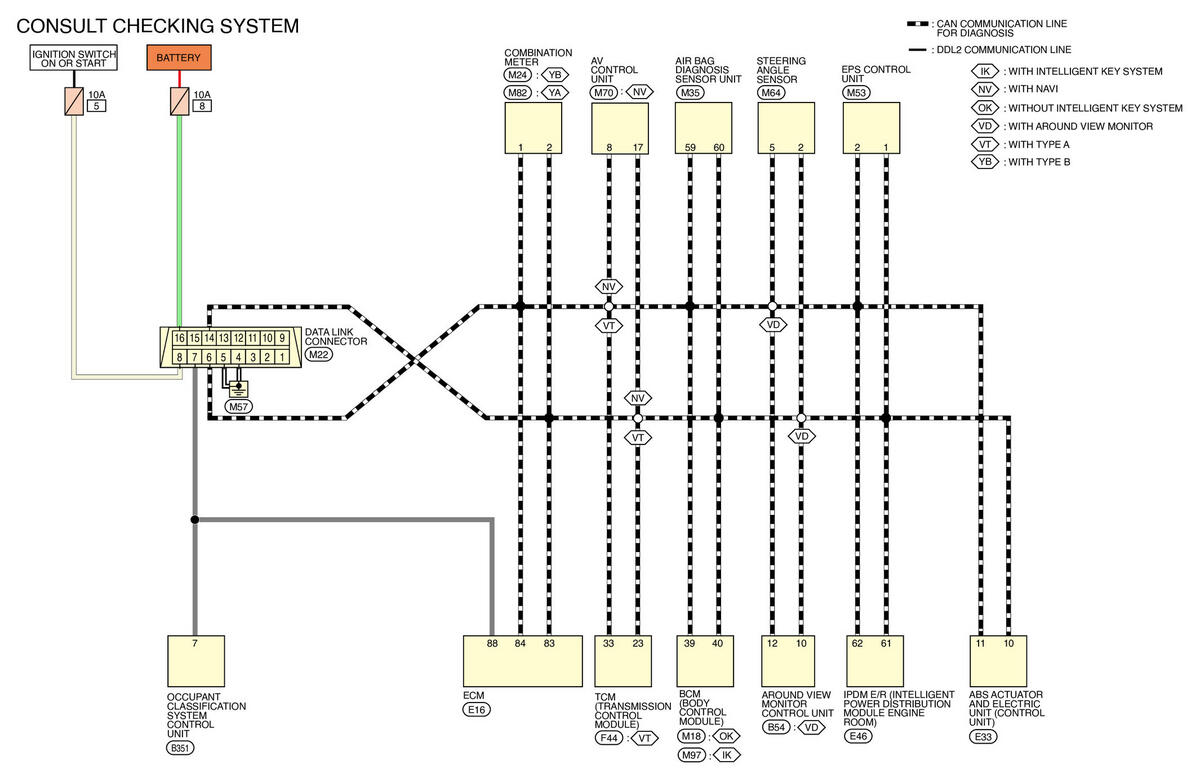

Fig 3: CONSULT CHECKING SYSTEM

GNSW82740

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: BRAKE CONTROL SYSTEM

GNSW82745

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM

GNSW82746

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: AIR CONDITIONER CONTROL

GNSW82748

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

GNSW82755

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: NVIS - WITH INTELLIGENT KEY SYSTEM

GNSW82756

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: NVIS - WITHOUT INTELLIGENT KEY SYSTEM

GNSW82757

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: DAYTIME RUNNING LIGHT SYSTEM

GNSW82762

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: CHARGING SYSTEM

GNSW82774

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: METER - TYPE A

GNSW82782

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: METER - TYPE B

GNSW82786

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: ENGINE CONTROL SYSTEM

GNSW82787

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: ACTIVE GRILLE SHUTTER SYSTEM

GNSW82790

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: CAN SYSTEM

GNSW83196

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

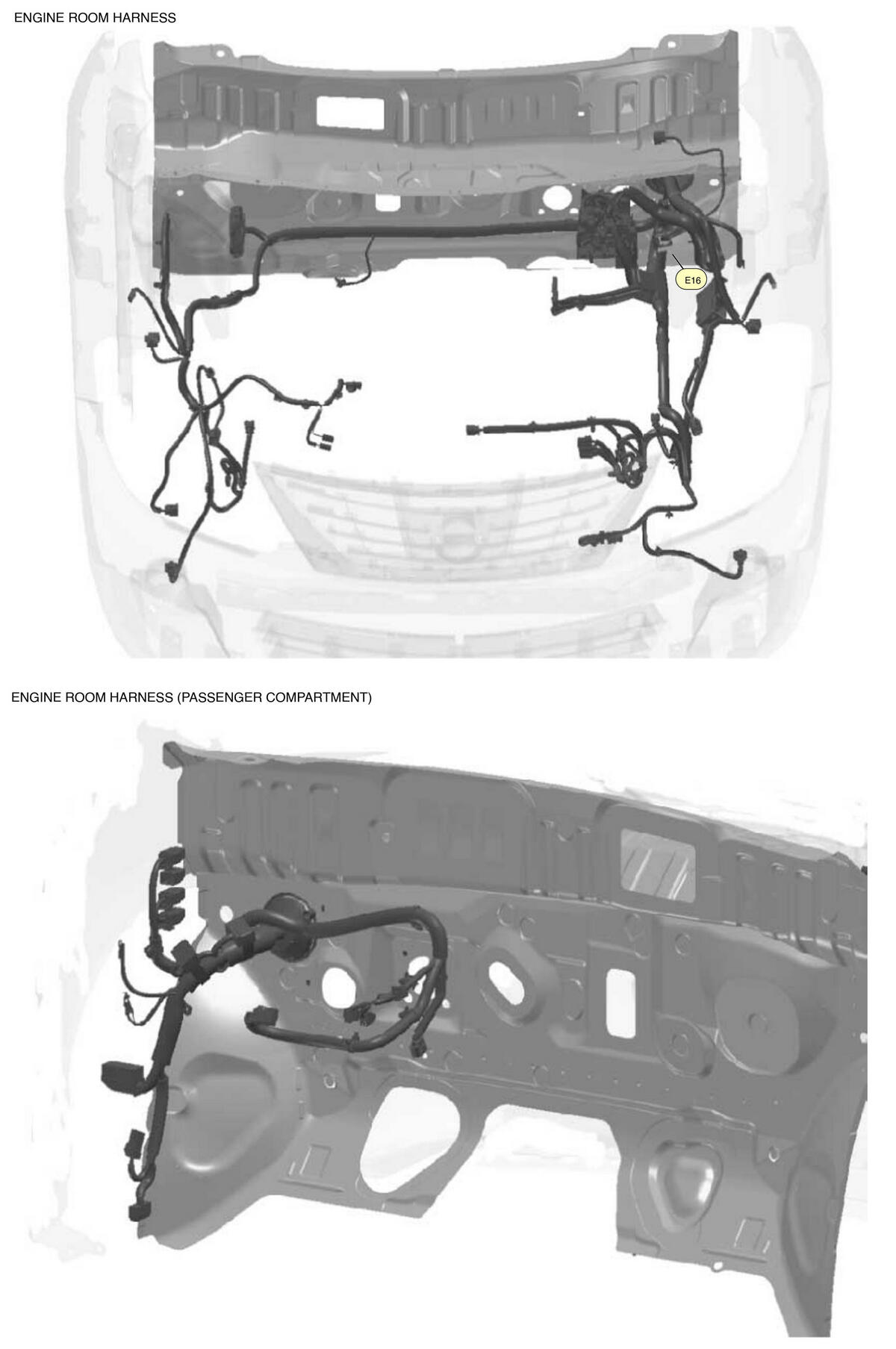

Fig 17: ENGINE ROOM HARNESS

GNSW83163_LK_E016

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 18: BATTERY POWER SUPPLY

GNSW83178

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: IGNITION POWER SUPPLY

GNSW83180

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: BATTERY POWER SUPPLY FUSE No. 53 (ECM RELAY)

GNSW83177

Courtesy of NISSAN NORTH AMERICA, INC.

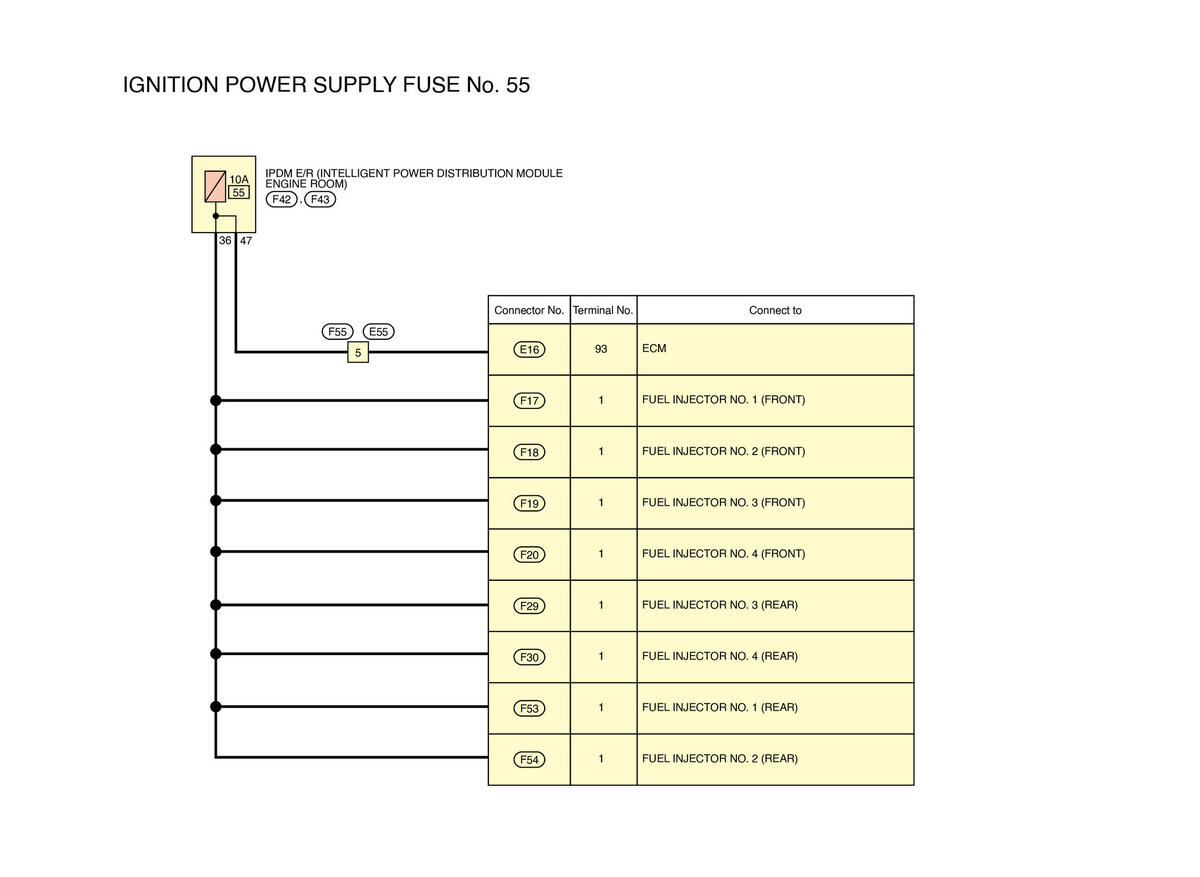

Fig 21: IGNITION POWER SUPPLY FUSE No. 55

GNSW83192

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: RH24FB-RZ8-L-LH
