CLUTCH INTERLOCK SWITCH Connector End View (E34)

Connector Color: BROWN

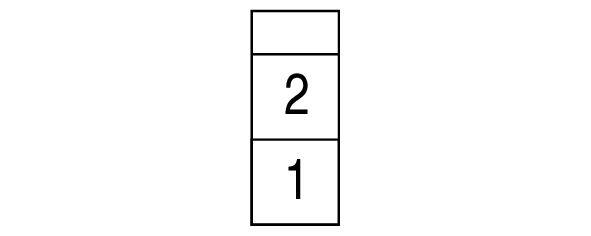

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

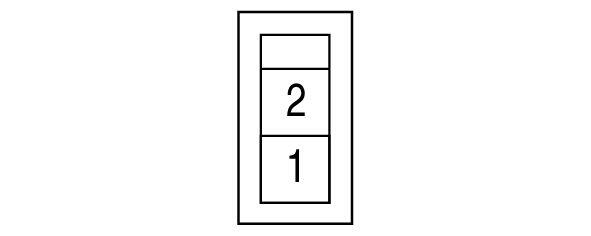

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	G	- (WITHOUT INTELLIGENT KEY SYSTEM)
1	Y	- (WITH INTELLIGENT KEY SYSTEM)
2	LG	- (WITHOUT INTELLIGENT KEY SYSTEM)
2	V	- (WITH INTELLIGENT KEY SYSTEM)

Circuit Diagram

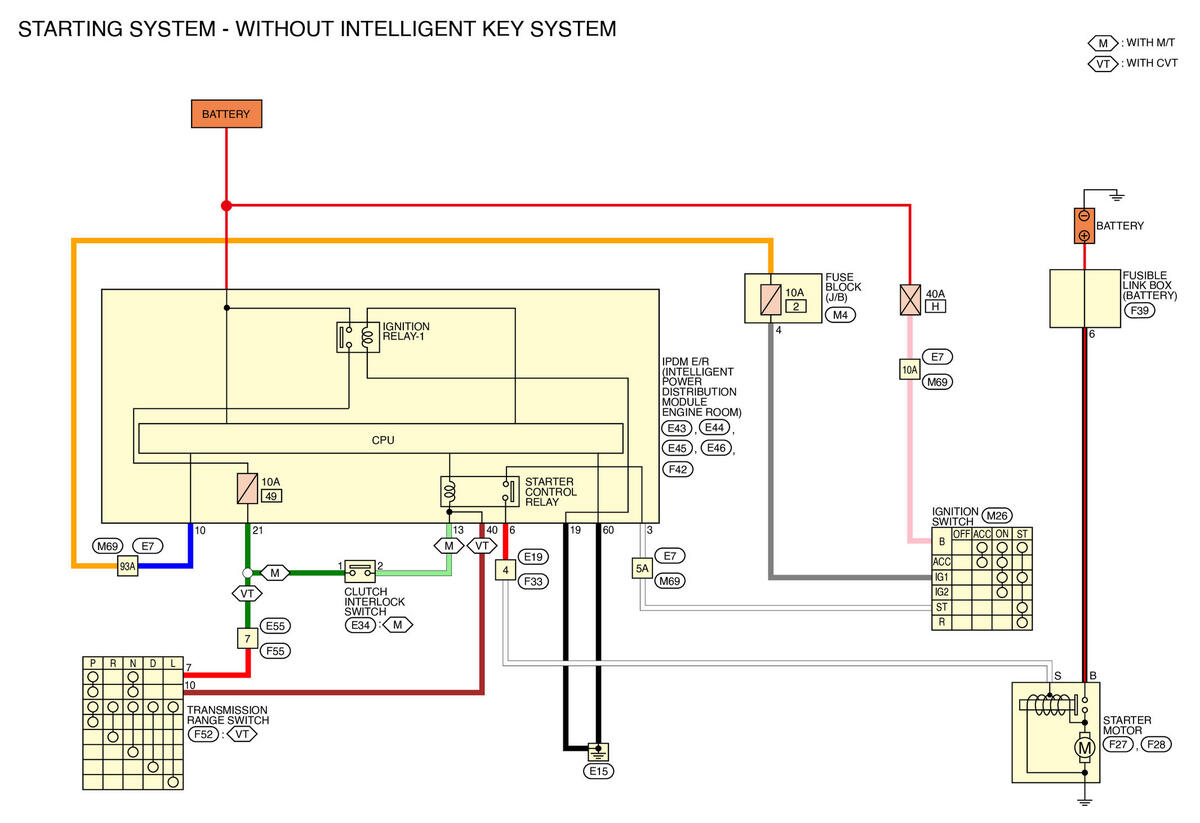

Fig 3: STARTING SYSTEM - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

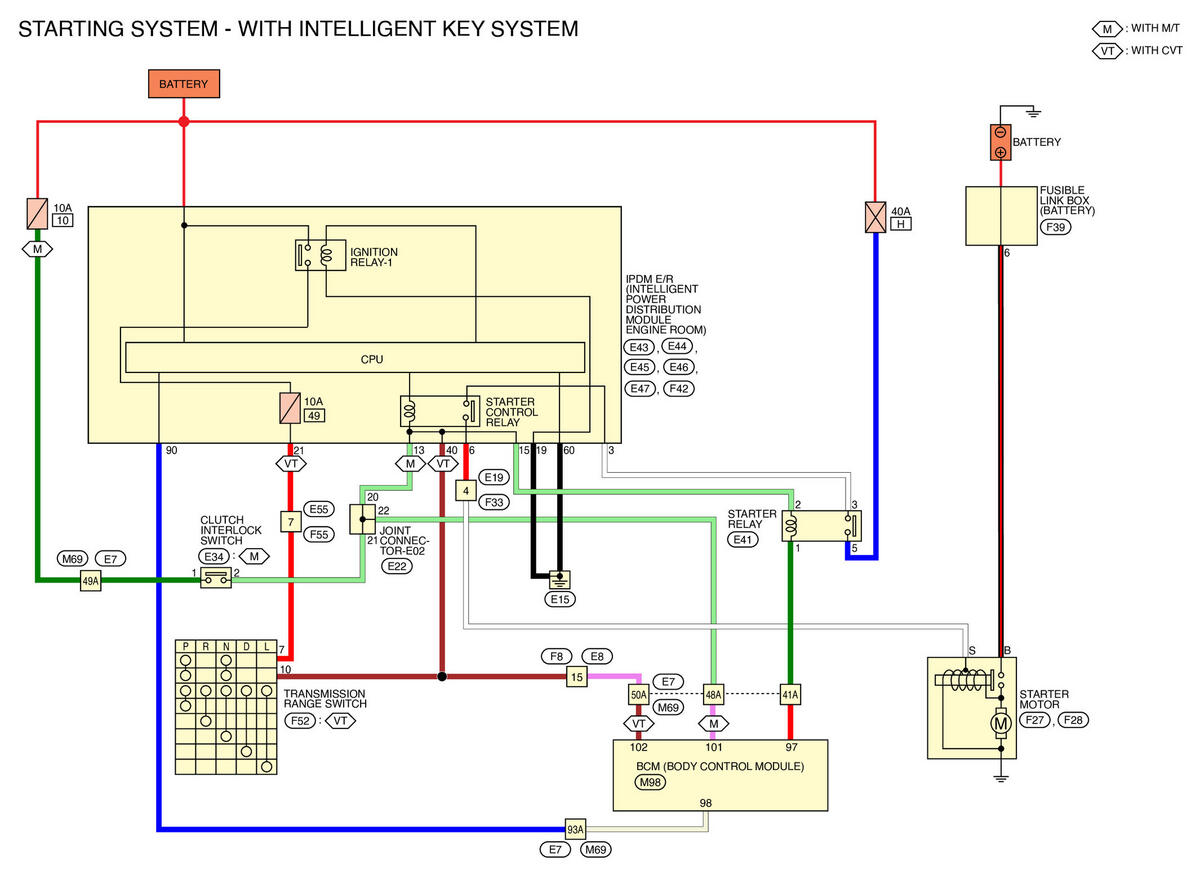

Fig 4: STARTING SYSTEM - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: NVIS - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

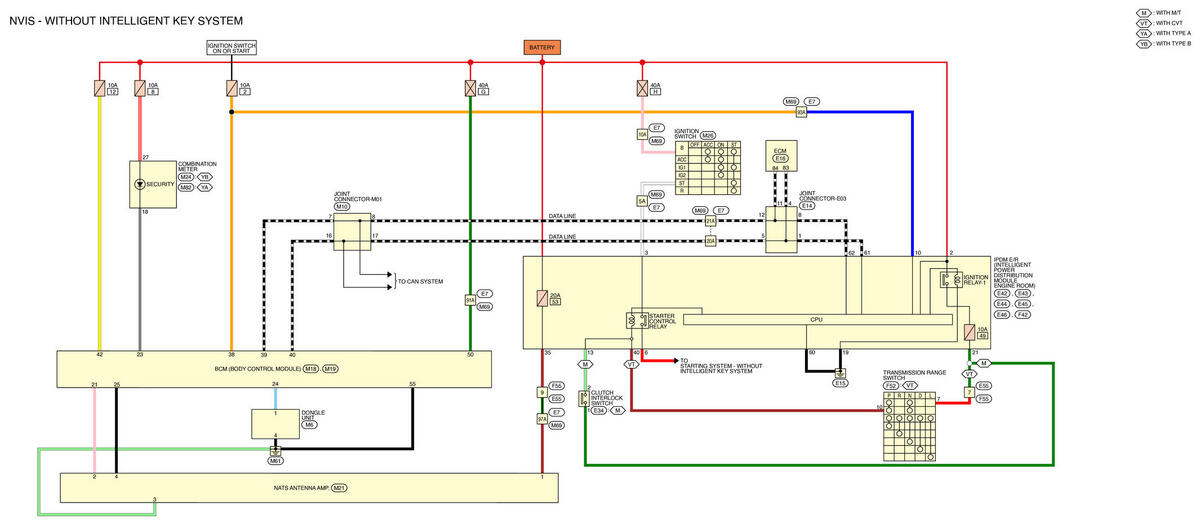

Fig 7: NVIS - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: BCM (BODY CONTROL MODULE) - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: POWER DISTRIBUTION SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

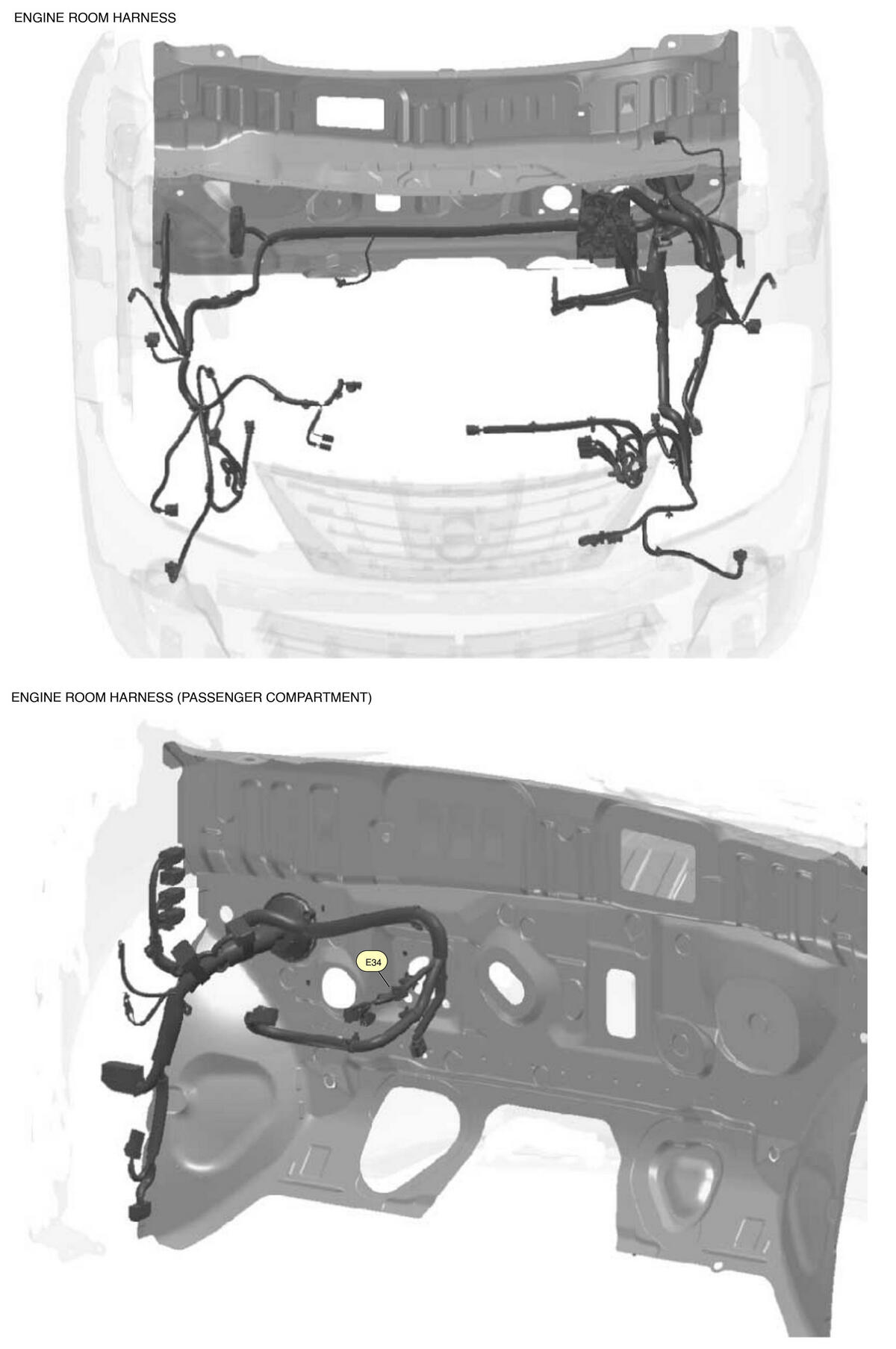

Fig 10: ENGINE ROOM HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 11: BATTERY POWER SUPPLY

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: IGNITION POWER SUPPLY

Courtesy of NISSAN NORTH AMERICA, INC.

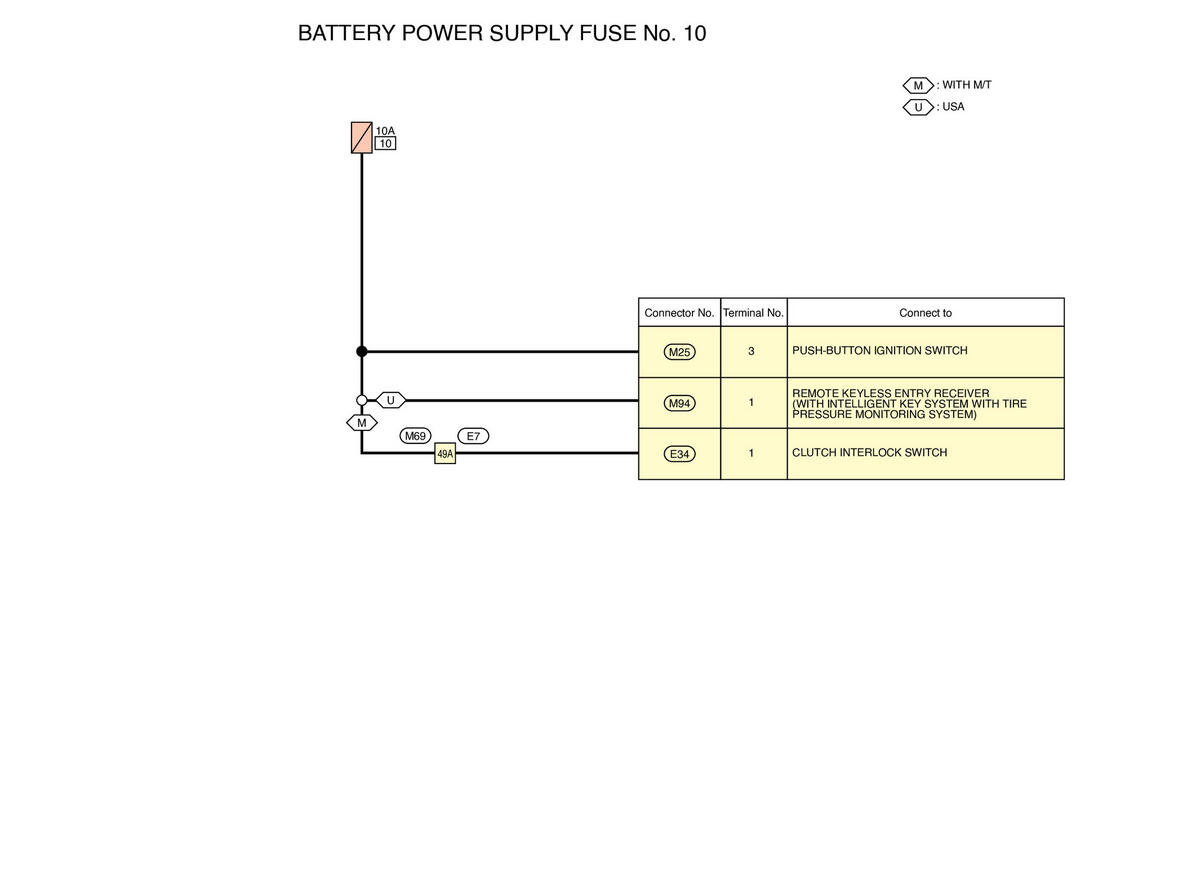

Fig 13: BATTERY POWER SUPPLY FUSE No. 10

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: IGNITION POWER SUPPLY FUSE No. 49

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: M02FBR-LC
