BRAKE FLUID LEVEL SWITCH Connector End View (E40)

Connector Color: BLACK

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	LG	-
2	B	-

Circuit Diagram

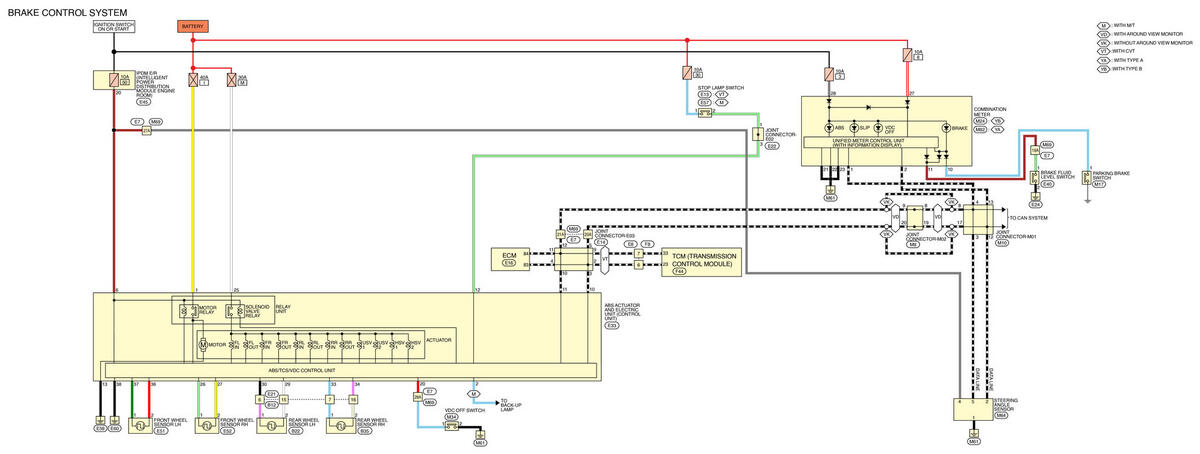

Fig 3: BRAKE CONTROL SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: METER - TYPE A

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: METER - TYPE B

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

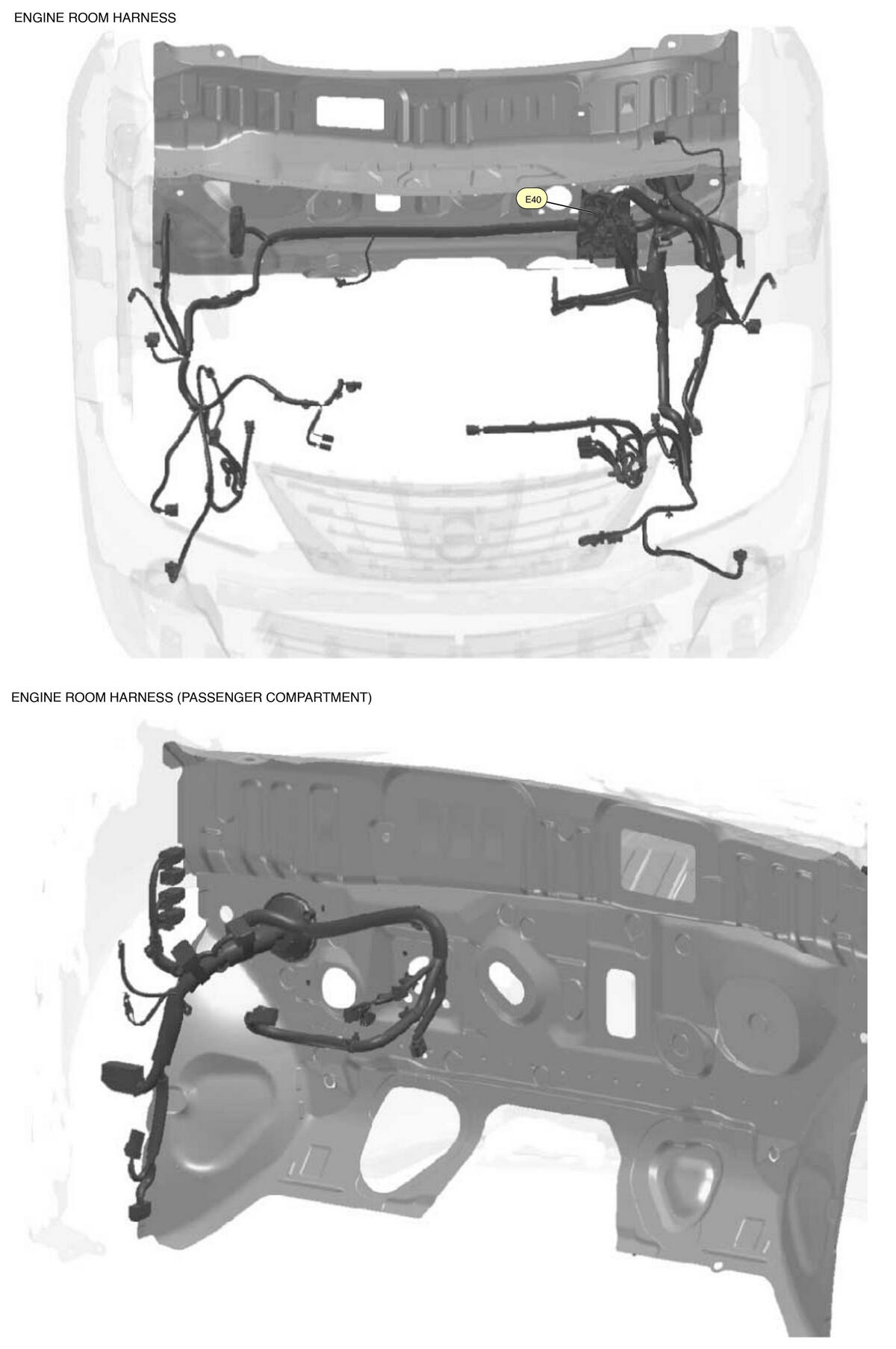

Fig 6: ENGINE ROOM HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: RH02FB
