IPDM E/R Relays
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

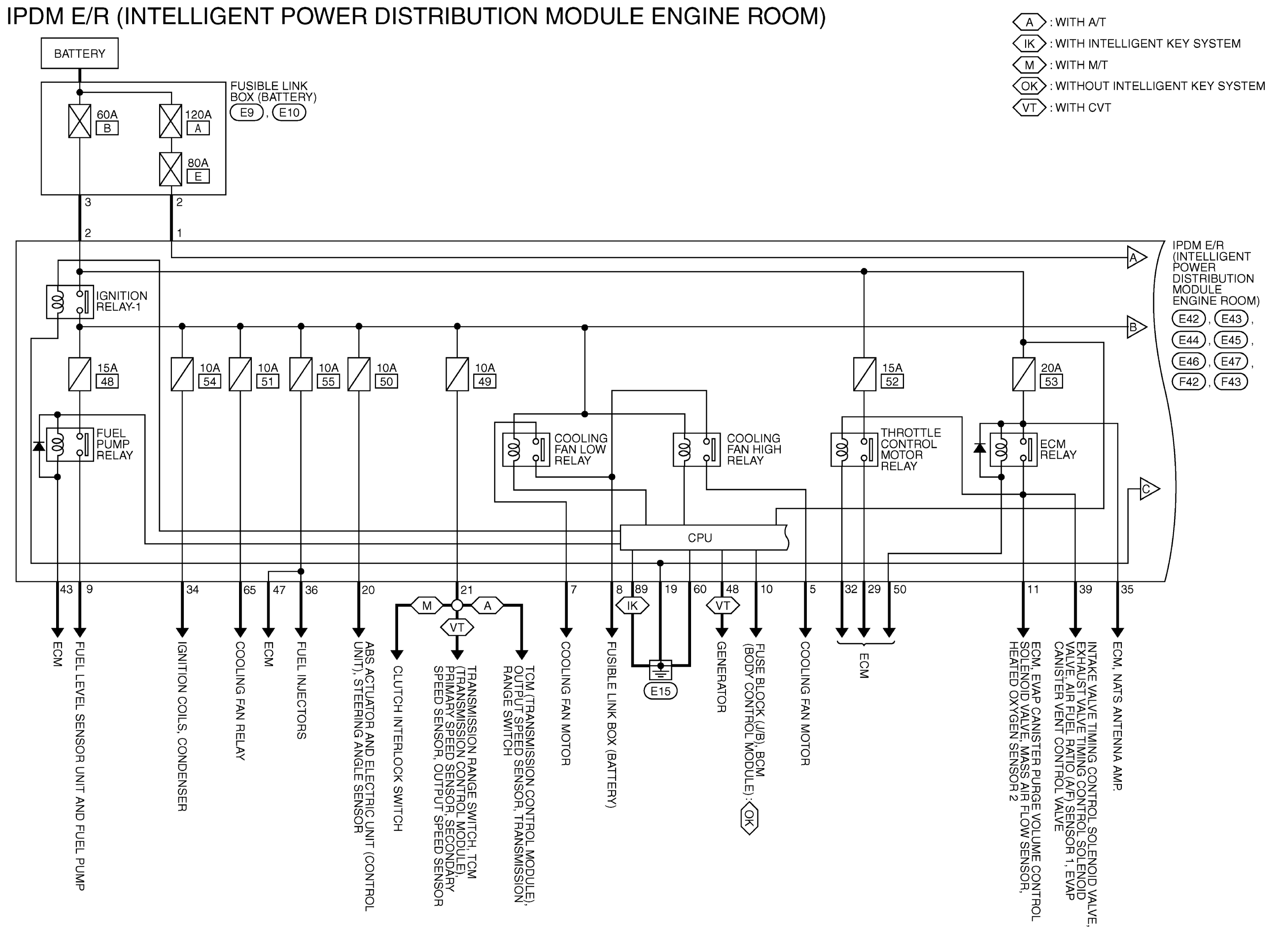

IPDM E/R RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Ignition Relay - 1 |
| Fuel Pump Relay |
| Cooling Fan Low Relay |
| Cooling Fan High Relay |
| Throttle Control Motor Relay |
| ECM Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|

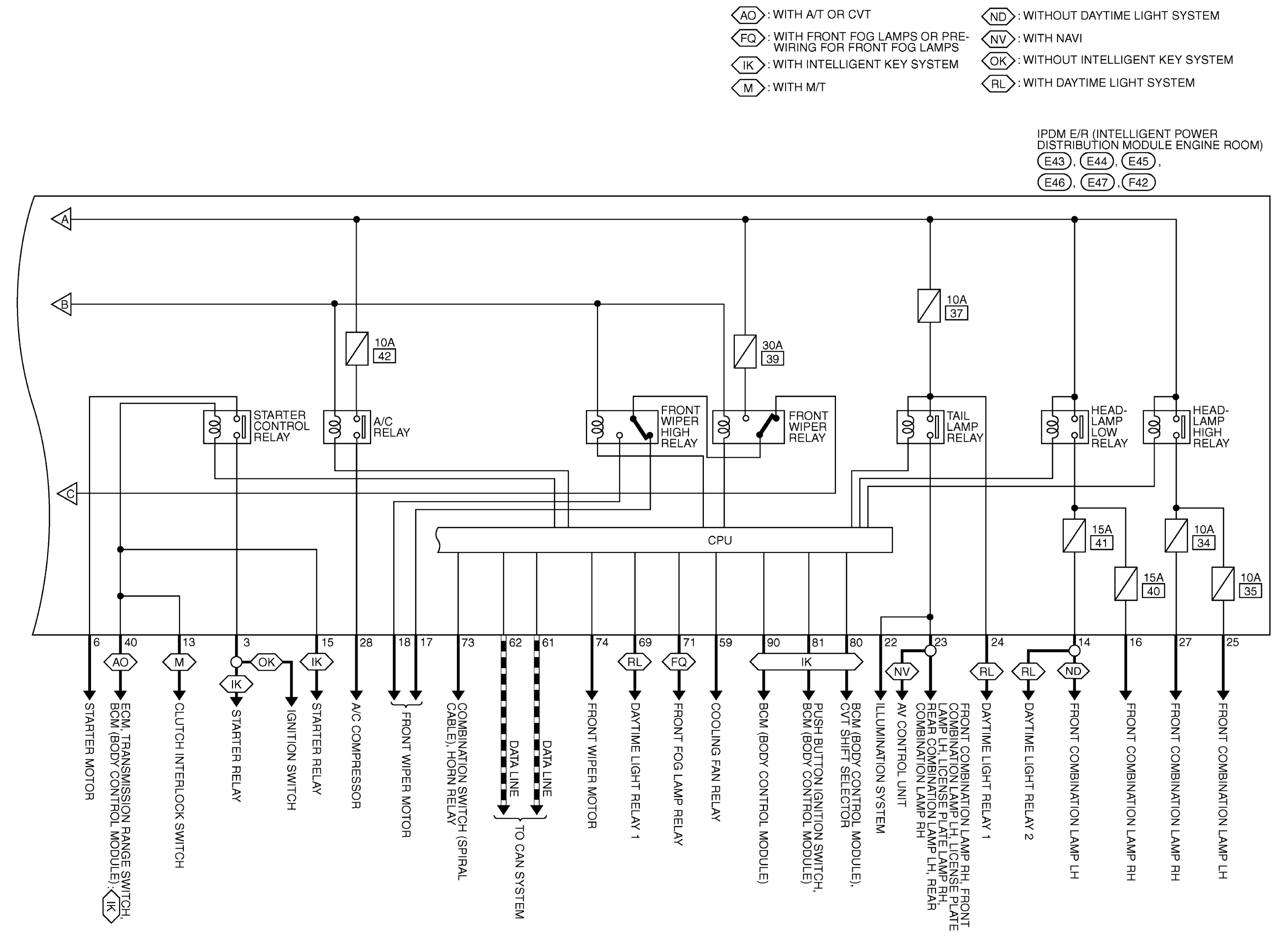

IPDM E/R RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Starter Control Relay |
| A/C Relay |
| Front Wiper High Relay |
| Front Wiper Relay |
| Tail Lamp Relay |
| Headlamp Low Relay |
| Headlamp High Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|
