Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

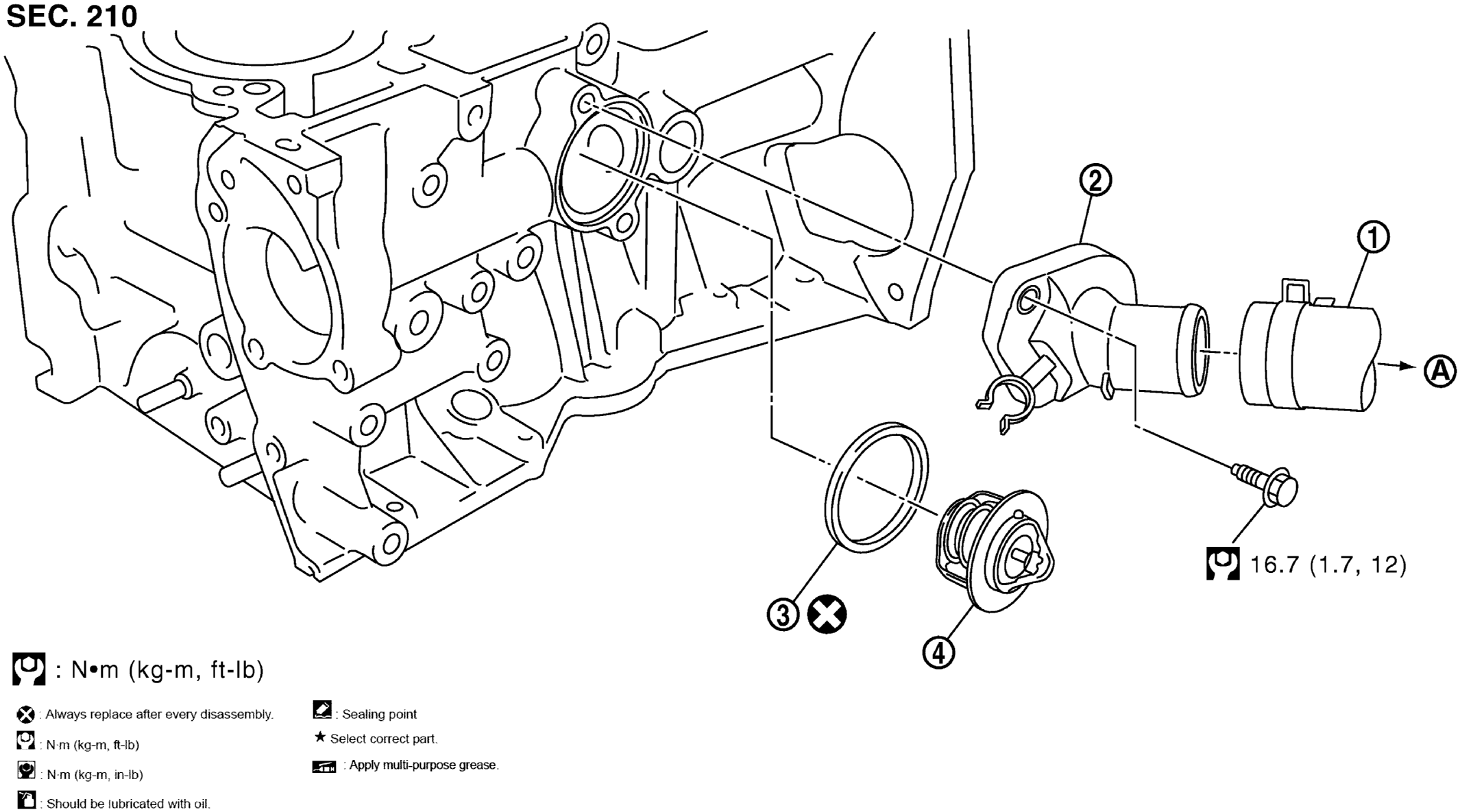

Fig 1: Exploded View Of Thermostat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Radiator hose (lower)	2.	Water inlet	3.	Rubber ring
4.	Thermostat	A.	To radiator
