Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

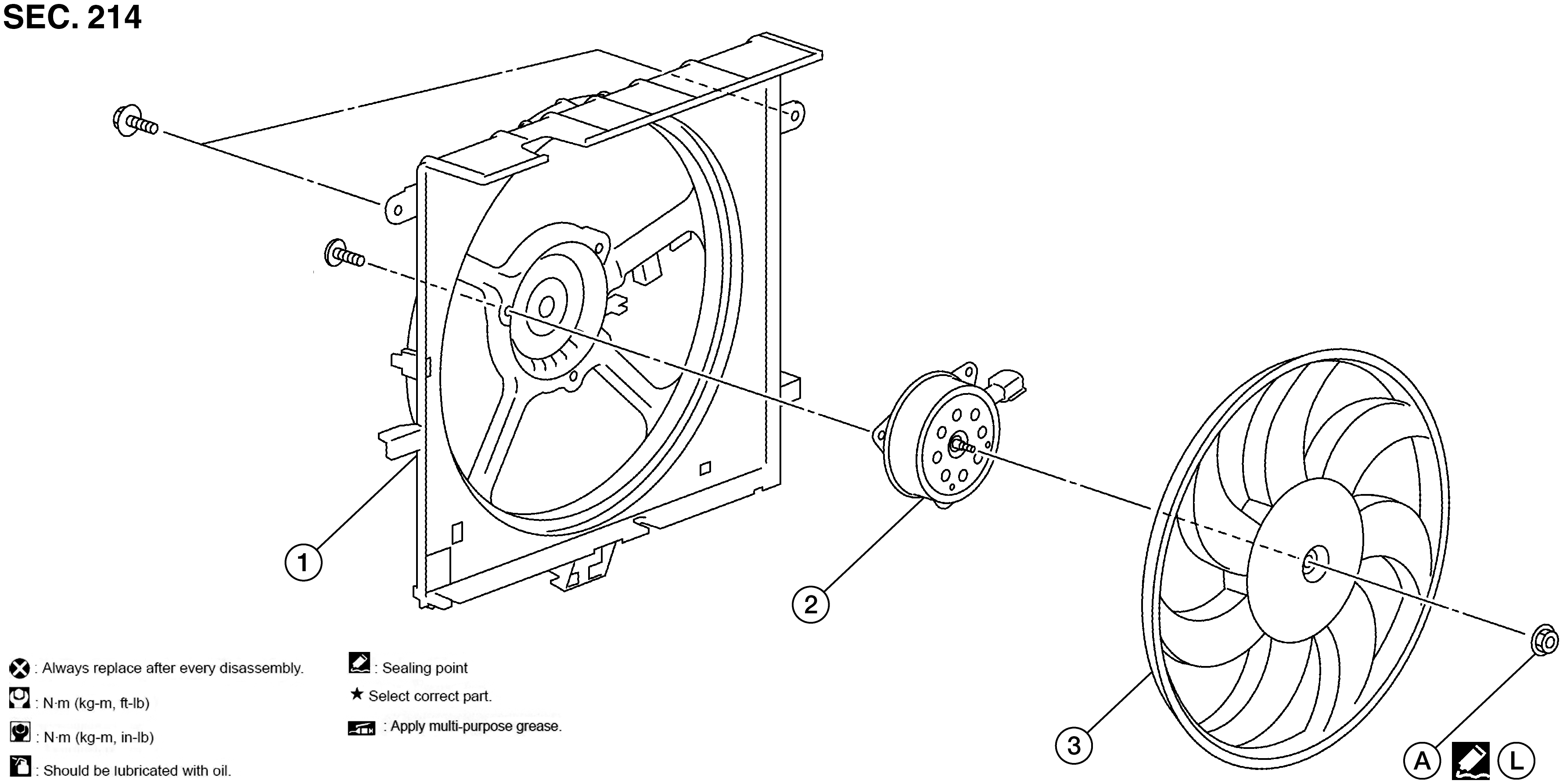

Fig 1: Exploded View Of Cooling Fan
GNSAWBIA1140GB-140Courtesy of NISSAN NORTH AMERICA, INC.
1. Fan shroud 2. Fan motor 3. Cooling fan
A. Cooling fan nut L. Genuine NISSAN high strength locking sealant
