Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

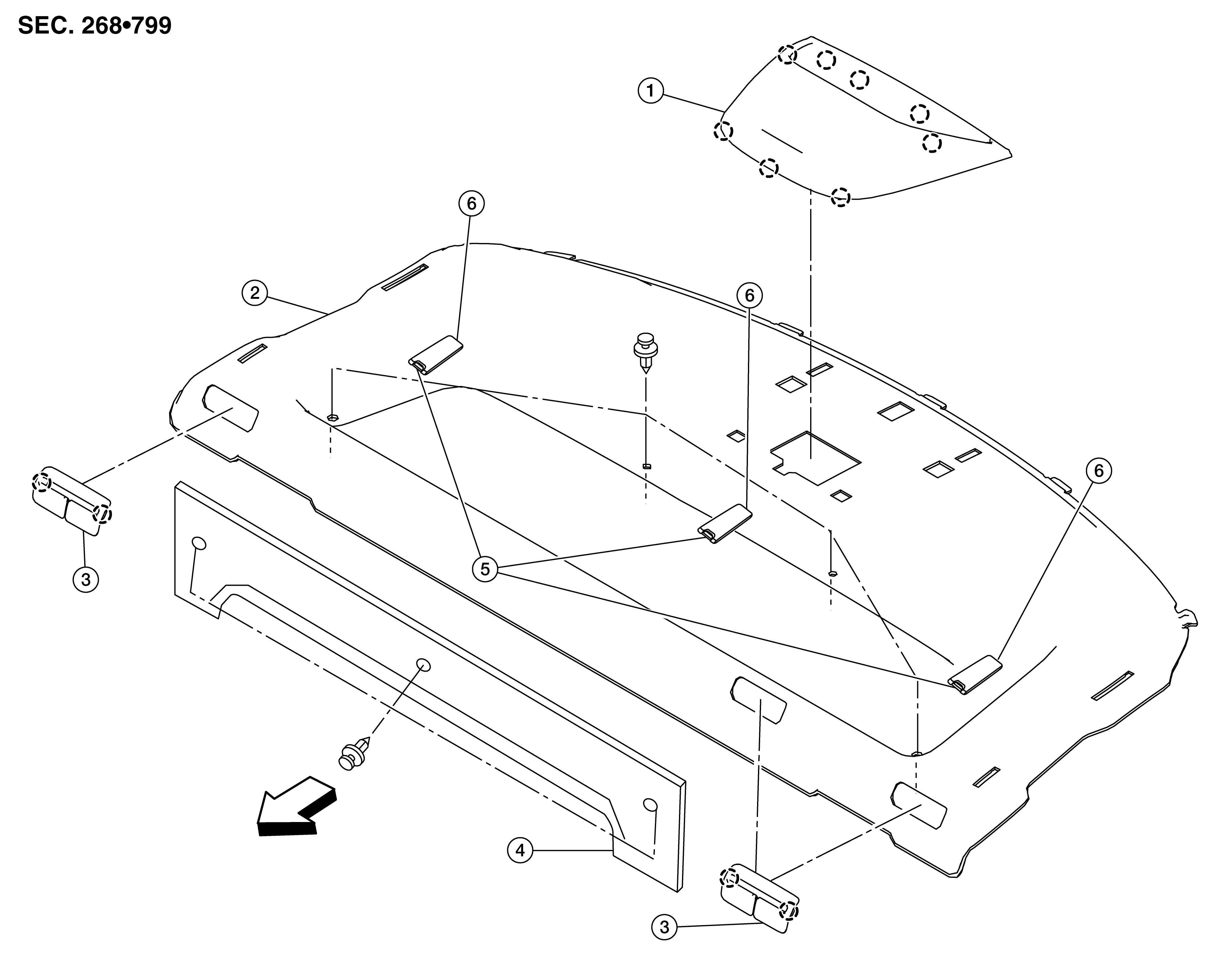

Fig 1: Exploded View Of Rear Parcel Shelf Finisher

Courtesy of NISSAN NORTH AMERICA, INC.

1.	High-mounted stop lamp (If equipped)	2.	Rear parcel shelf finisher	3.	Seat belt finisher
4.	Seatback latch cover	5.	Top tether strap anchor	6.	Top tether strap anchor finisher
	Front		Pawl
