Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

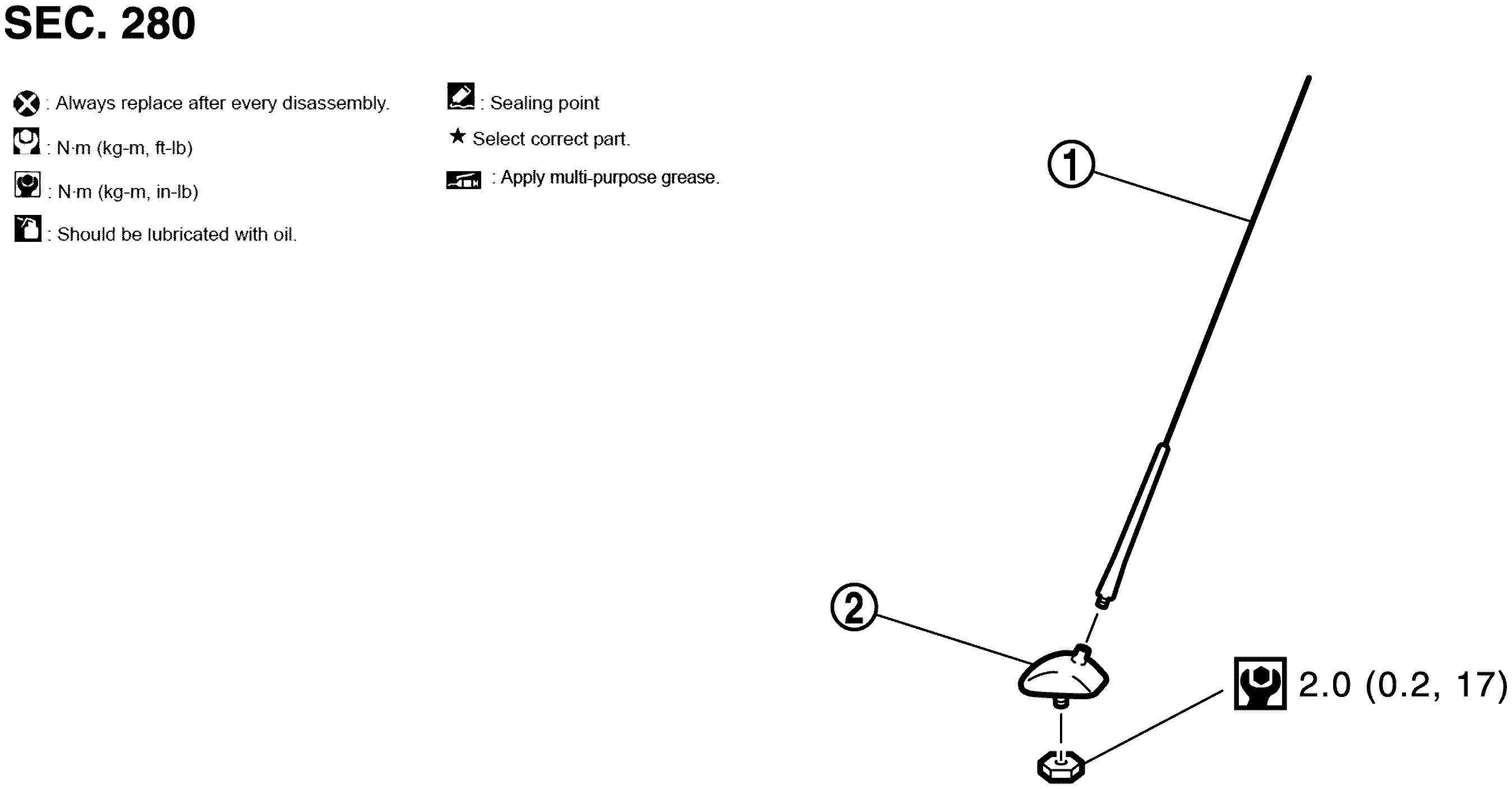

Fig 1: Roof Antenna With Torque Specifications
GNSJSNIA4028GB-028Courtesy of NISSAN NORTH AMERICA, INC.
1. Antenna mast 2. Antenna base
