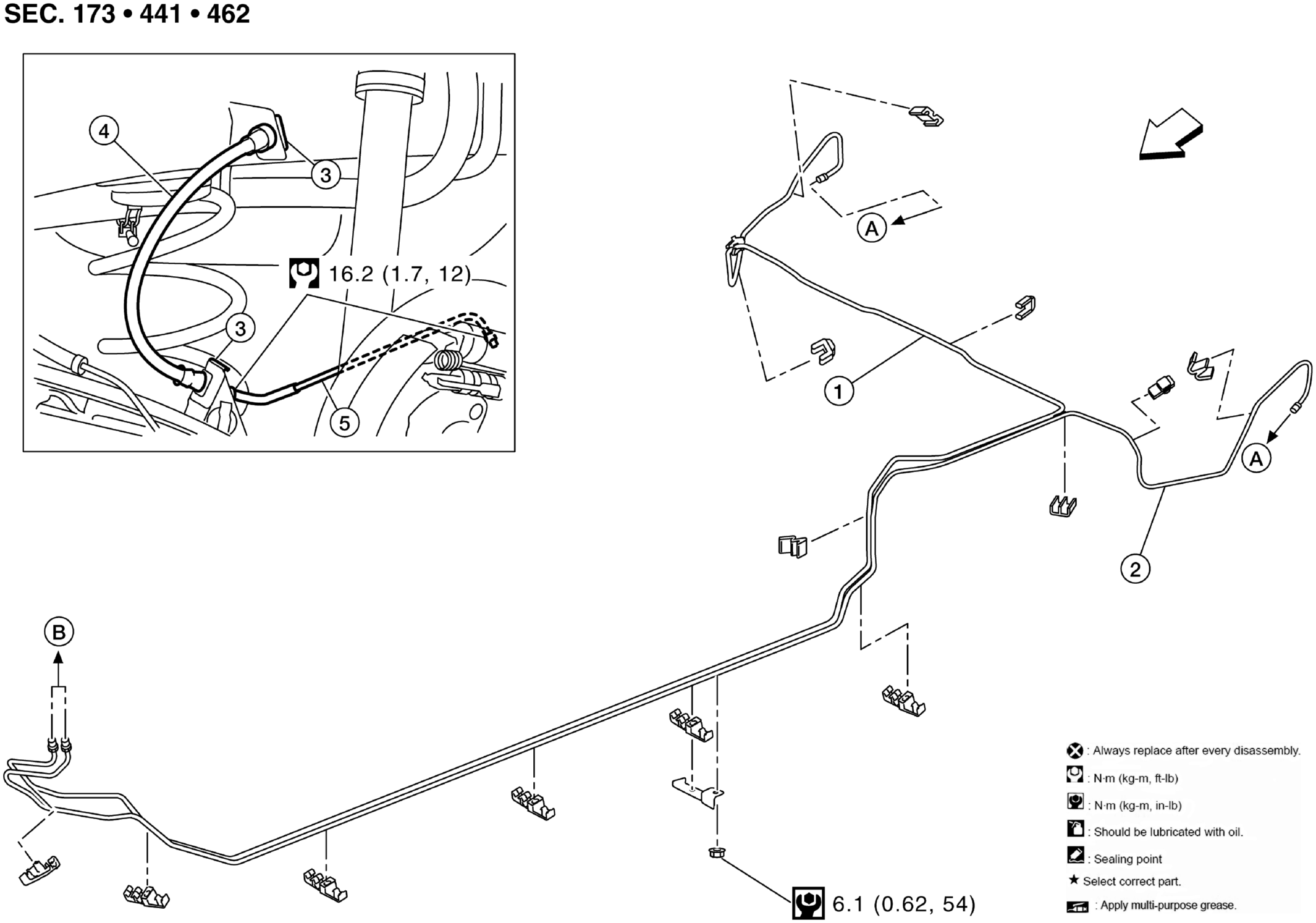

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear brake pipe assembly (RH) |
2. |
Rear brake pipe assembly (LH) |
3. |
Lock plate |
| 4. |
Rear brake hose |
5. |
Wheel cylinder brake pipe assembly |
A. |
To rear brake hose |
| B. |
To brake pipe connector |
 |
Front |
|
|
