Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

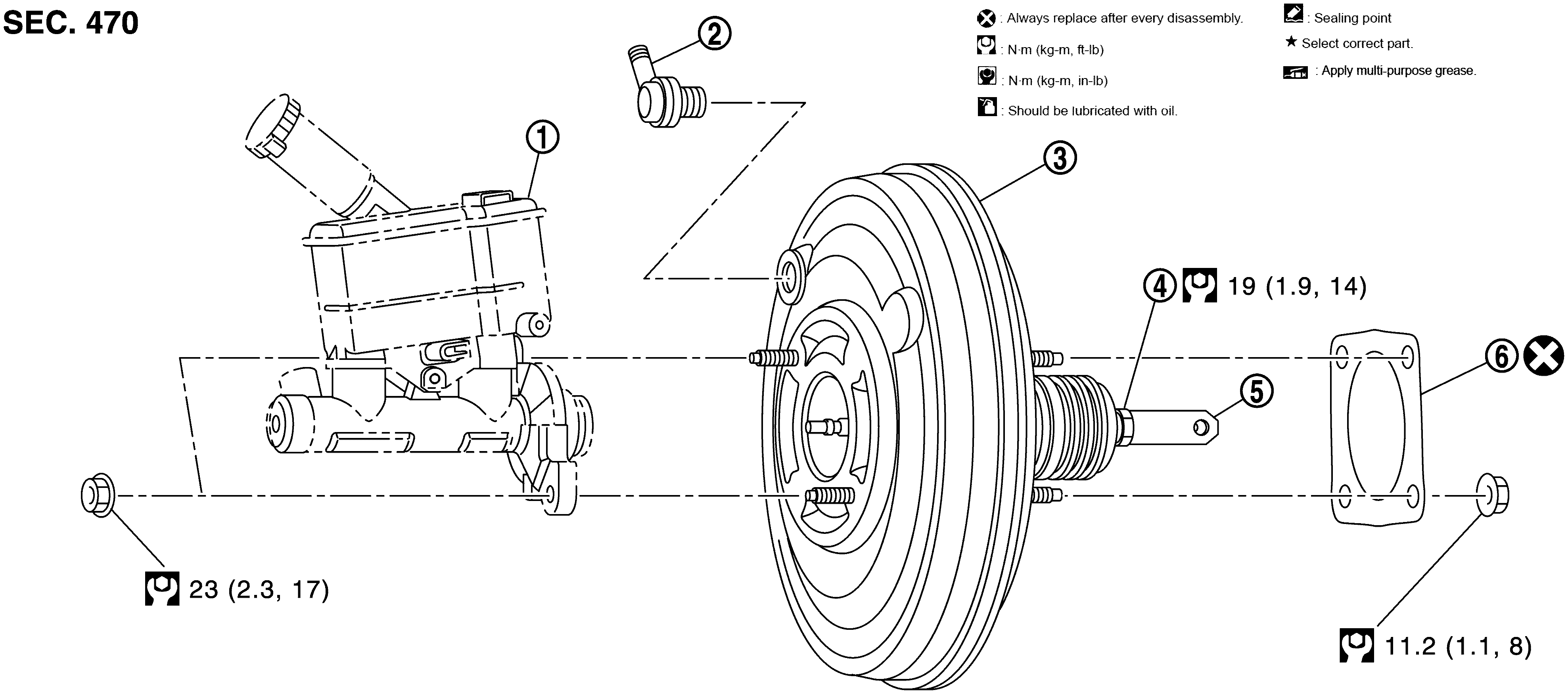

Fig 1: Exploded View Of Brake Booster And Check Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Master cylinder assembly	2.	Check valve	3.	Brake booster
4.	Lock nut	5.	Clevis	6.	Gasket
