Transaxle Side

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fix shaft with a vise.
    CAUTION:

    Protect shaft using aluminum or copper plates when fixing with a vise.

  2. Remove boot bands, and then remove boot from housing.
  3. Put matching marks on housing and shaft, and then pull out housing from shaft.
    CAUTION:

    Use paint for matching marks.

  4. Put matching mark (A) on the spider assembly and shaft.

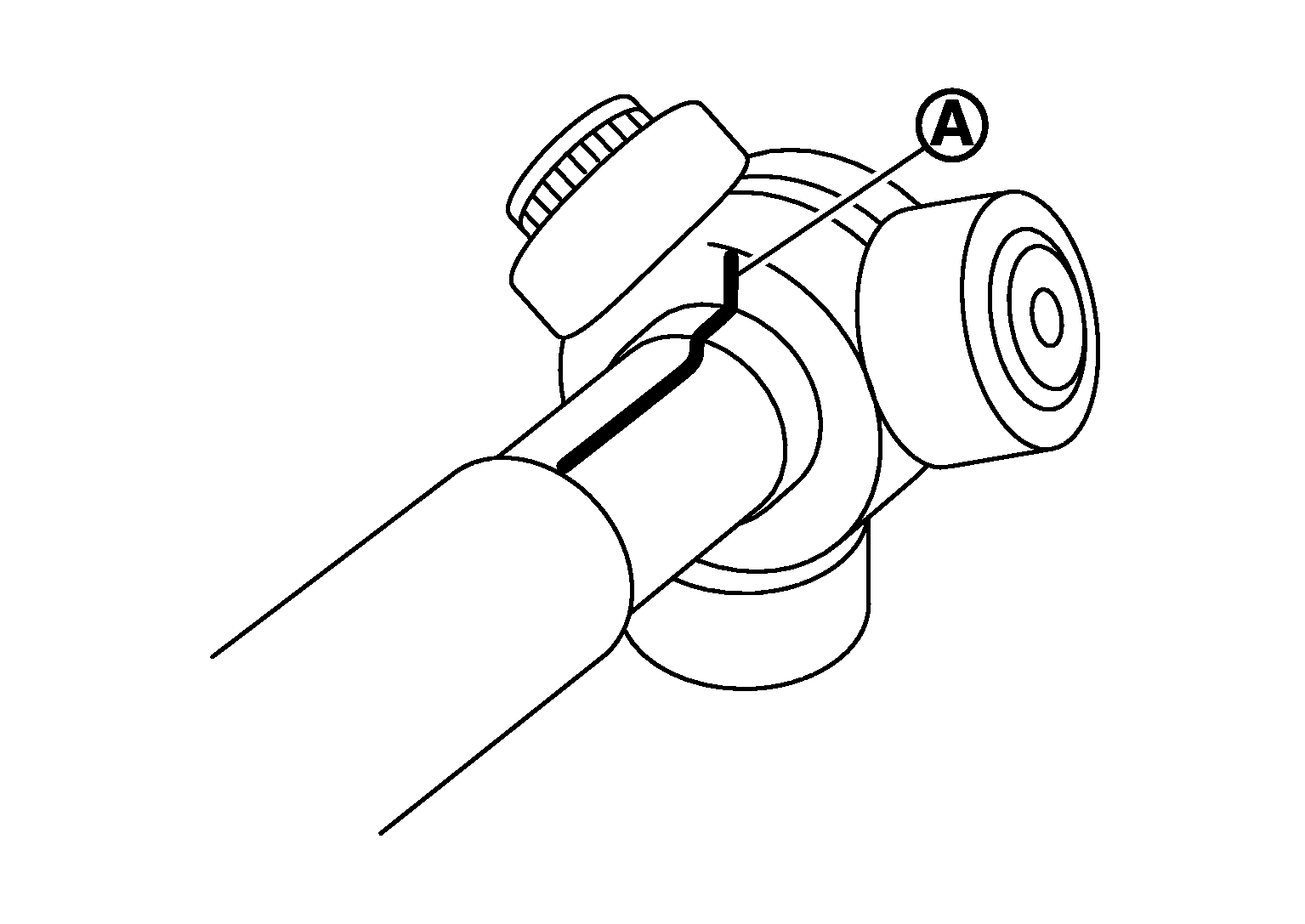

    Fig 1: Matching Marks On Spider Assembly And Shaft
    G05224276Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Use paint for matching mark.

  5. Remove snap ring (1), and then remove spider assembly from shaft.
    Fig 2: Removing Snap Ring
    G05224277Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove boot from shaft.
  7. Remove dust shield from housing.
  8. Remove circlip from housing.
  9. Remove damper bands, then remove dynamic damper from shaft.
