Driver Side: Seatback: Disassembly

  1. Remove the driver side front seat. Refer to REMOVAL AND INSTALLATION .
  2. Remove the headrest.
  3. Release trim strap (A) from the seat cushion frame.

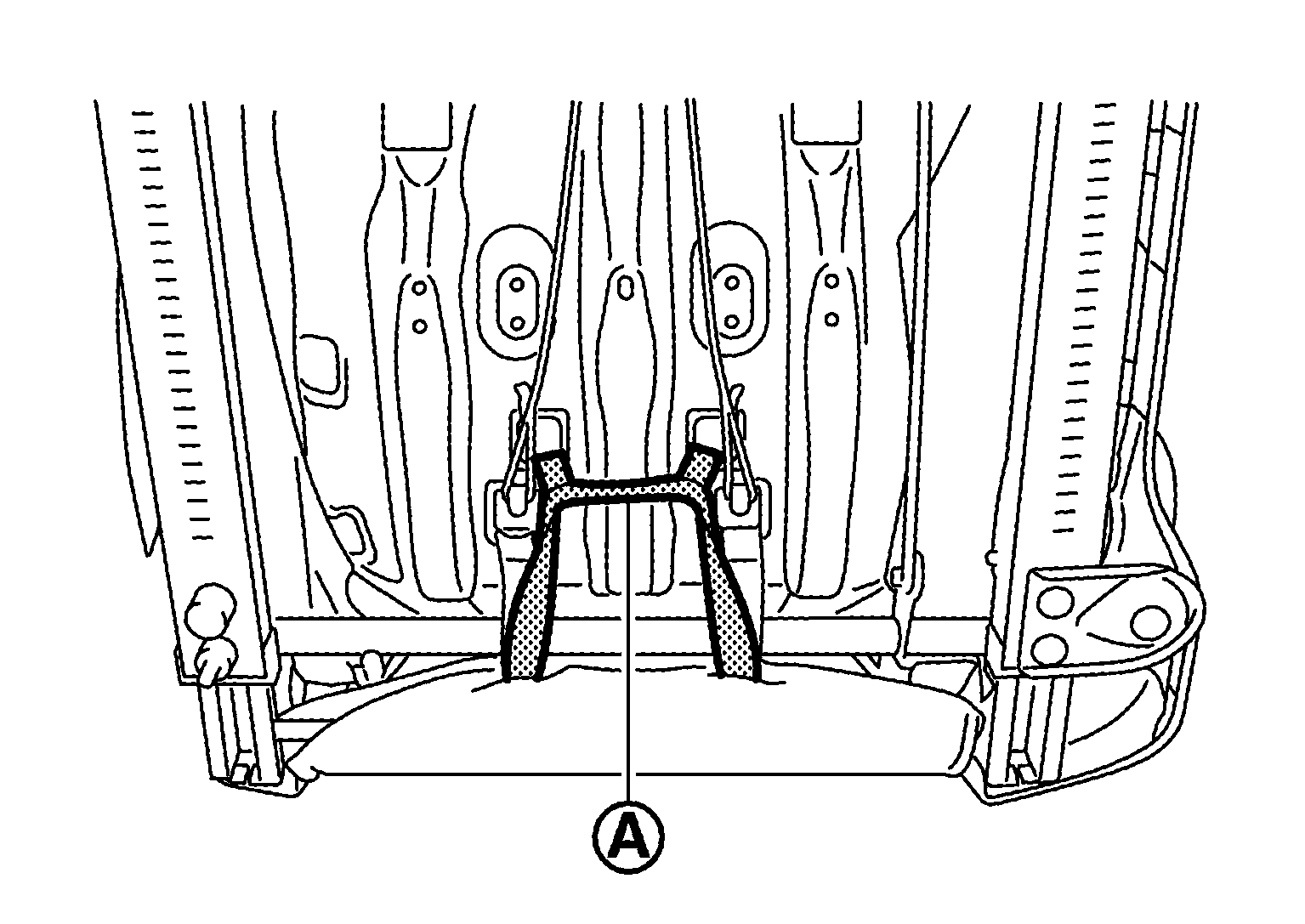

    Fig 1: Lower Seatback Trim Retainer Strap
    G08203936Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the armrest (1) (if equipped).

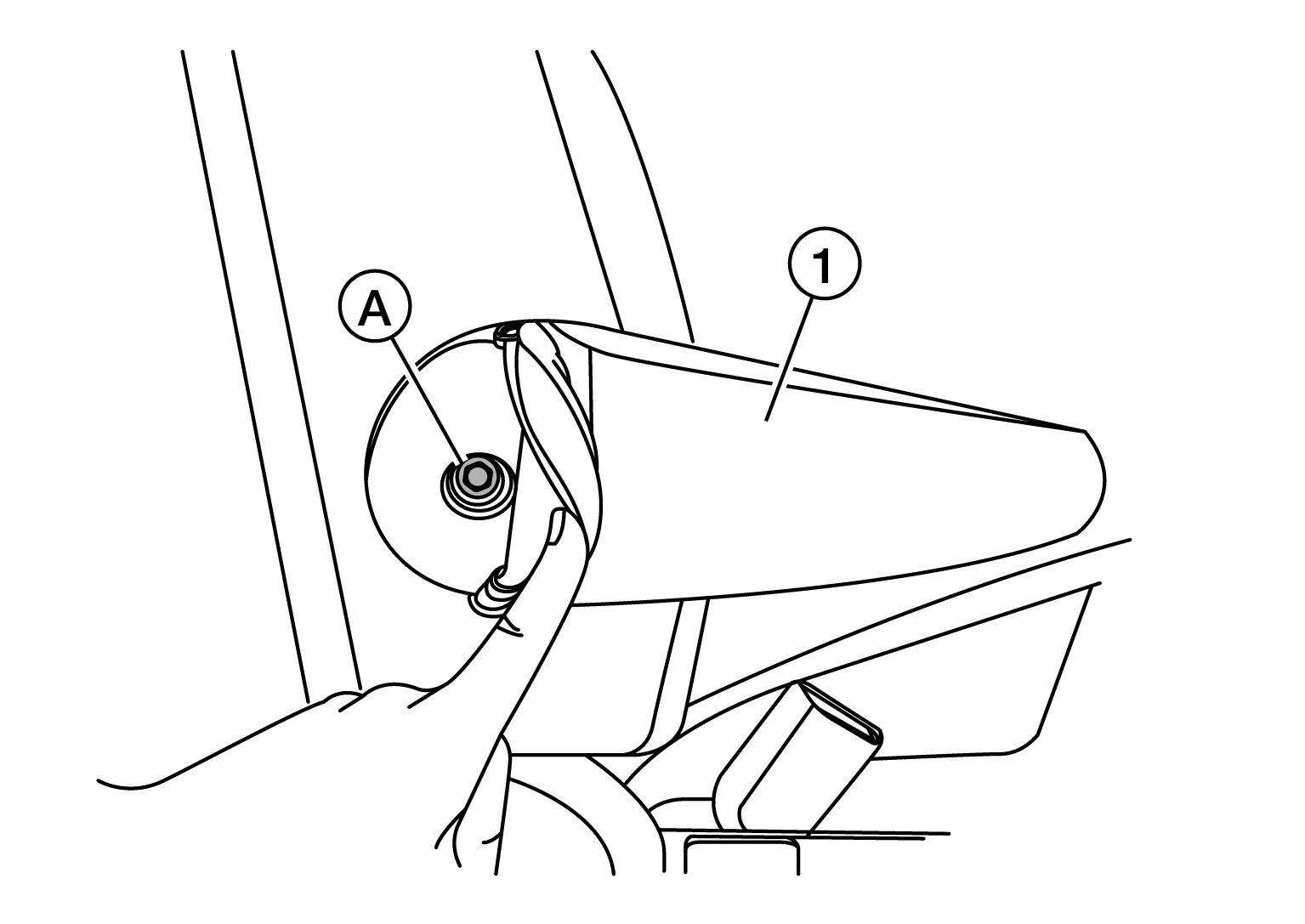

    Fig 2: Removing Armrest Bolt And Armrest
    G09015323Courtesy of NISSAN NORTH AMERICA, INC.
    1. Unzip the armrest to access armrest bolt (A).
    2. Remove armrest bolt (A) and armrest (1).
  5. Release the J-hook retainer (C), unzip seatback zippers (A) and release J-clips (B).

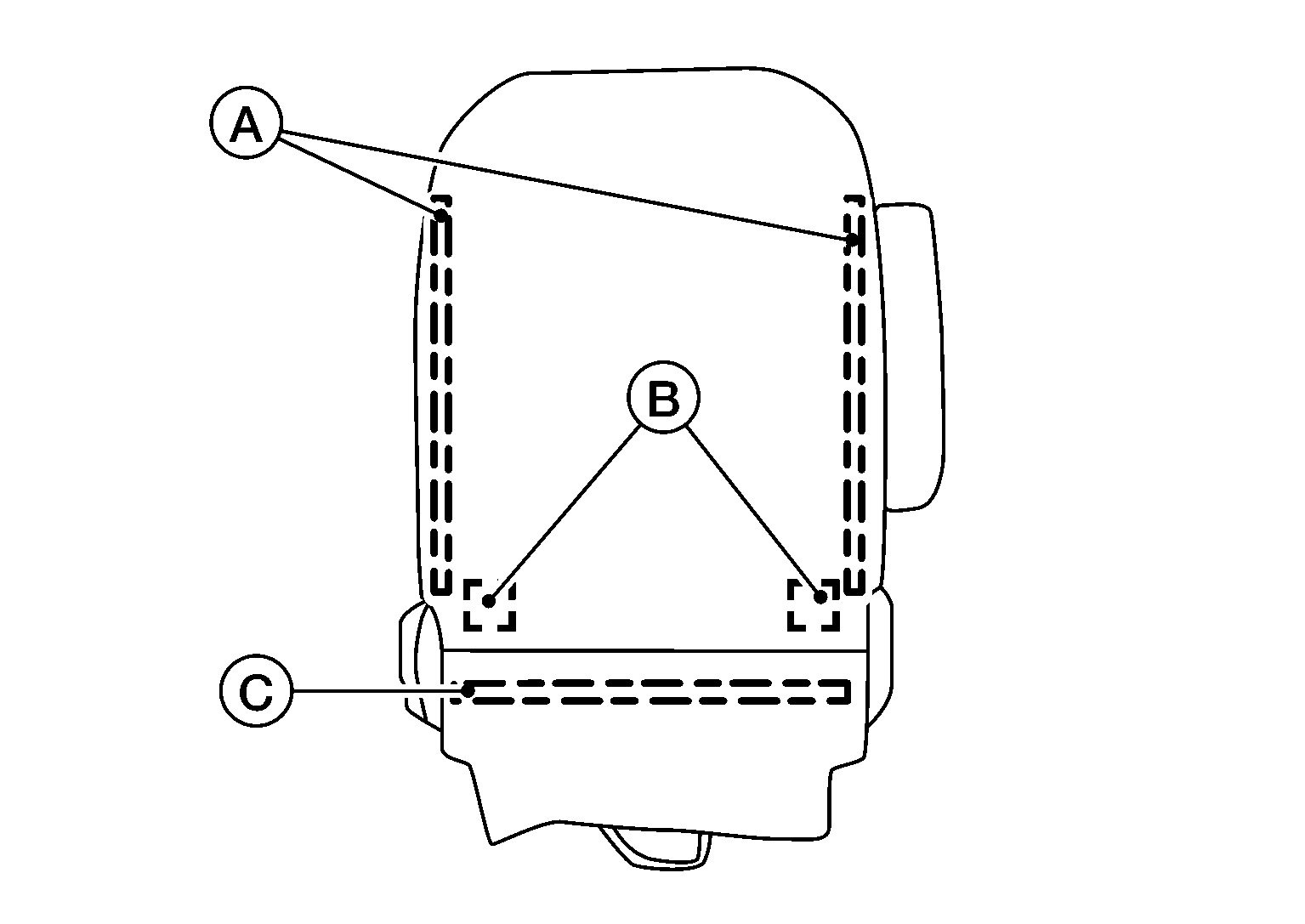

    Fig 3: J-Hook Retainer, Seatback Zippers And J-Clips
    G09604071Courtesy of NISSAN NORTH AMERICA, INC.
  6. Release the headrest holder locks as shown and remove.

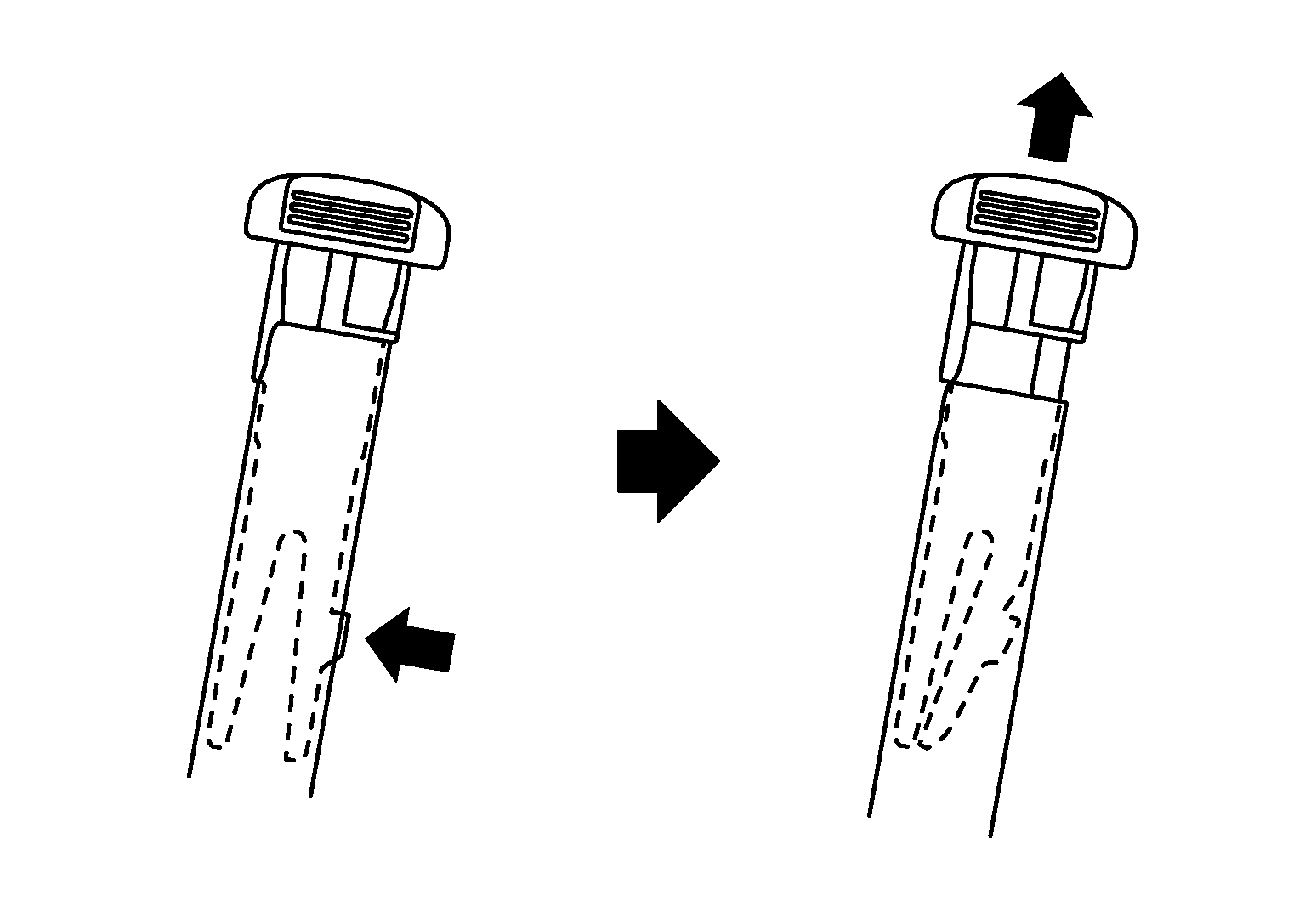

    Fig 4: Removing Headrest Holders
    G07024411Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Before removing the headrest holder, check its orientation (front/rear and right/left).
