Electronically Controlled Power Steering System: Wiring Diagram

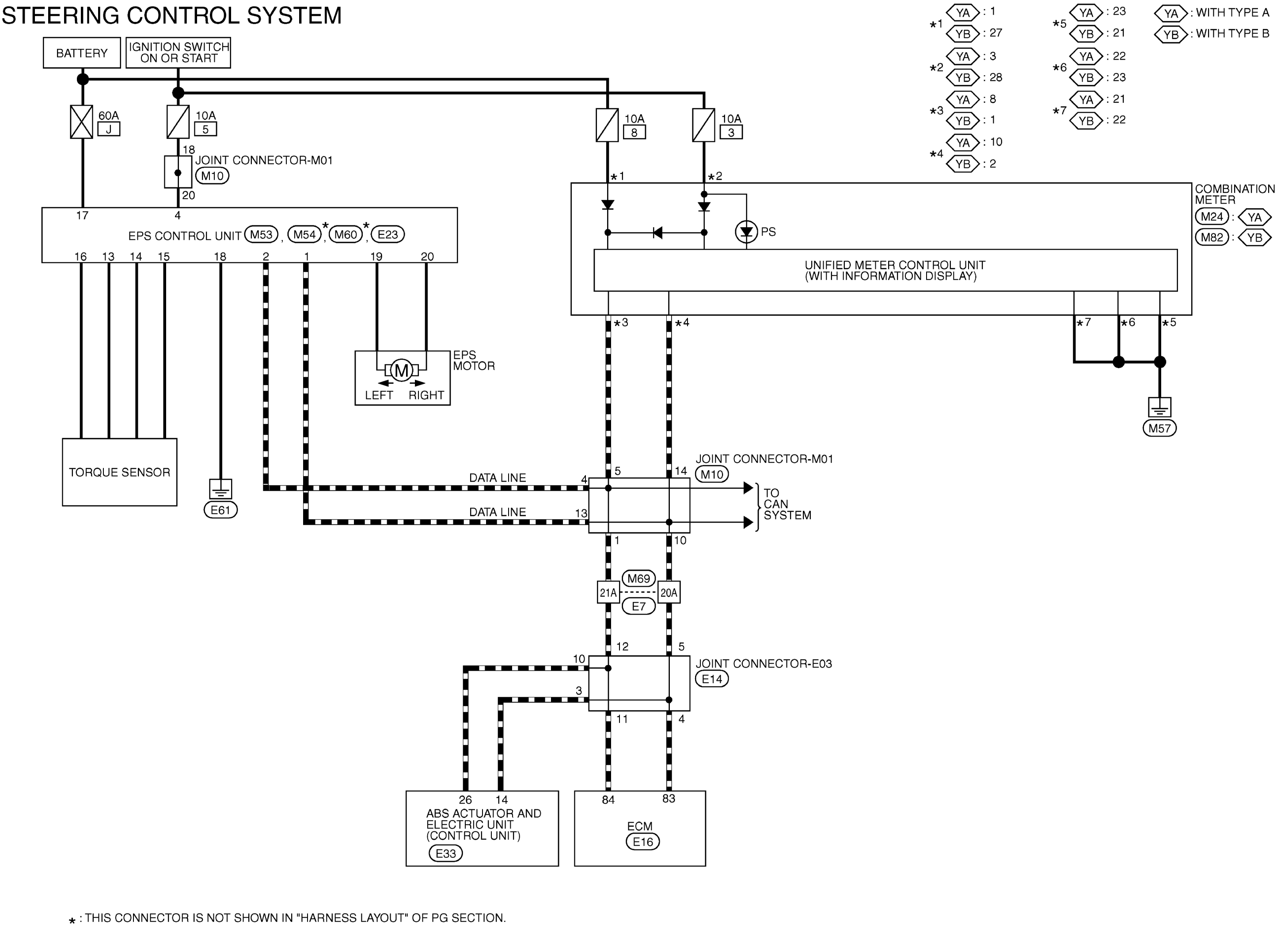

Fig 1: Electronically Controlled Power Steering System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

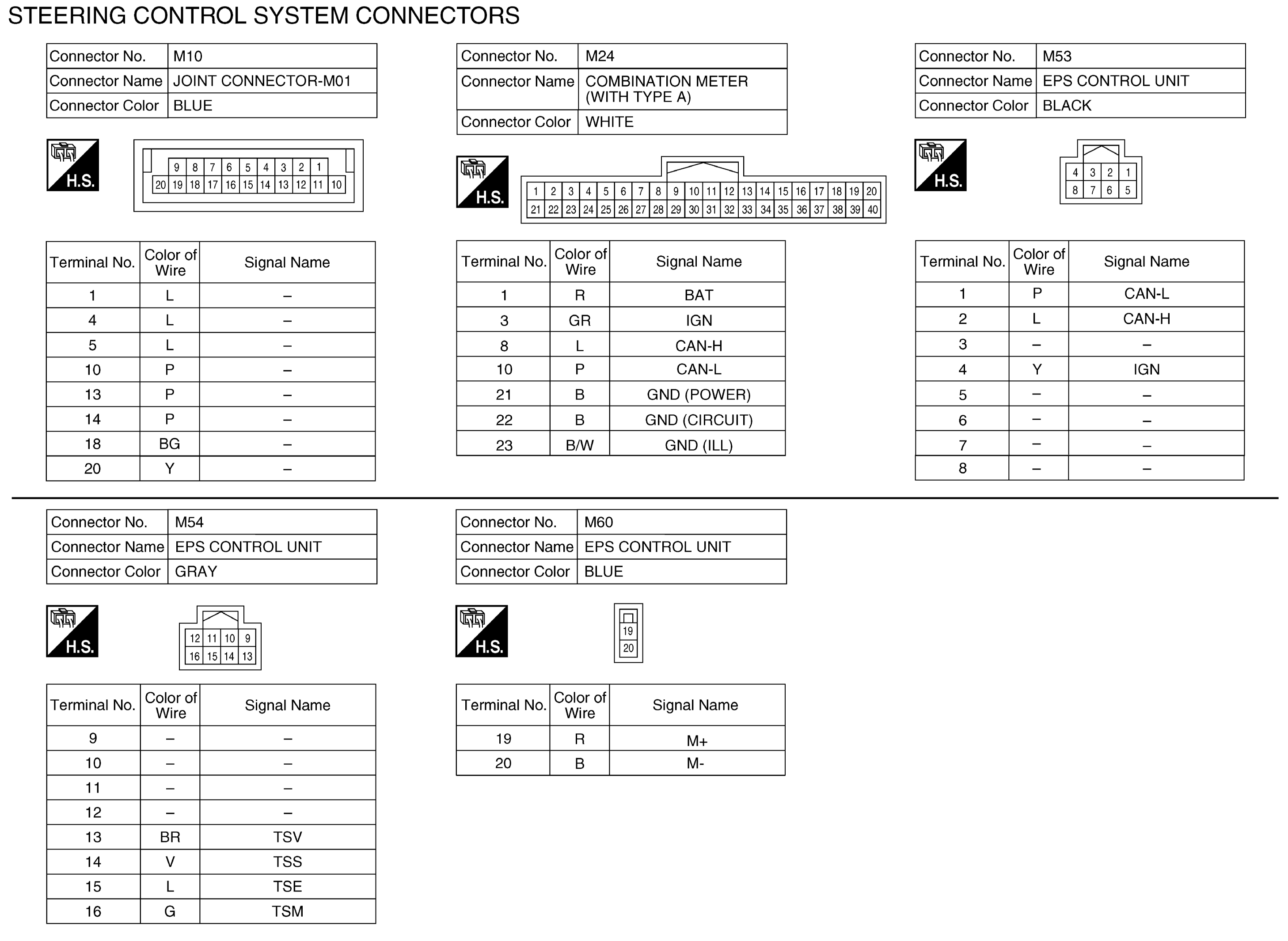

Fig 2: Electronically Controlled Power Steering System Connectors (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

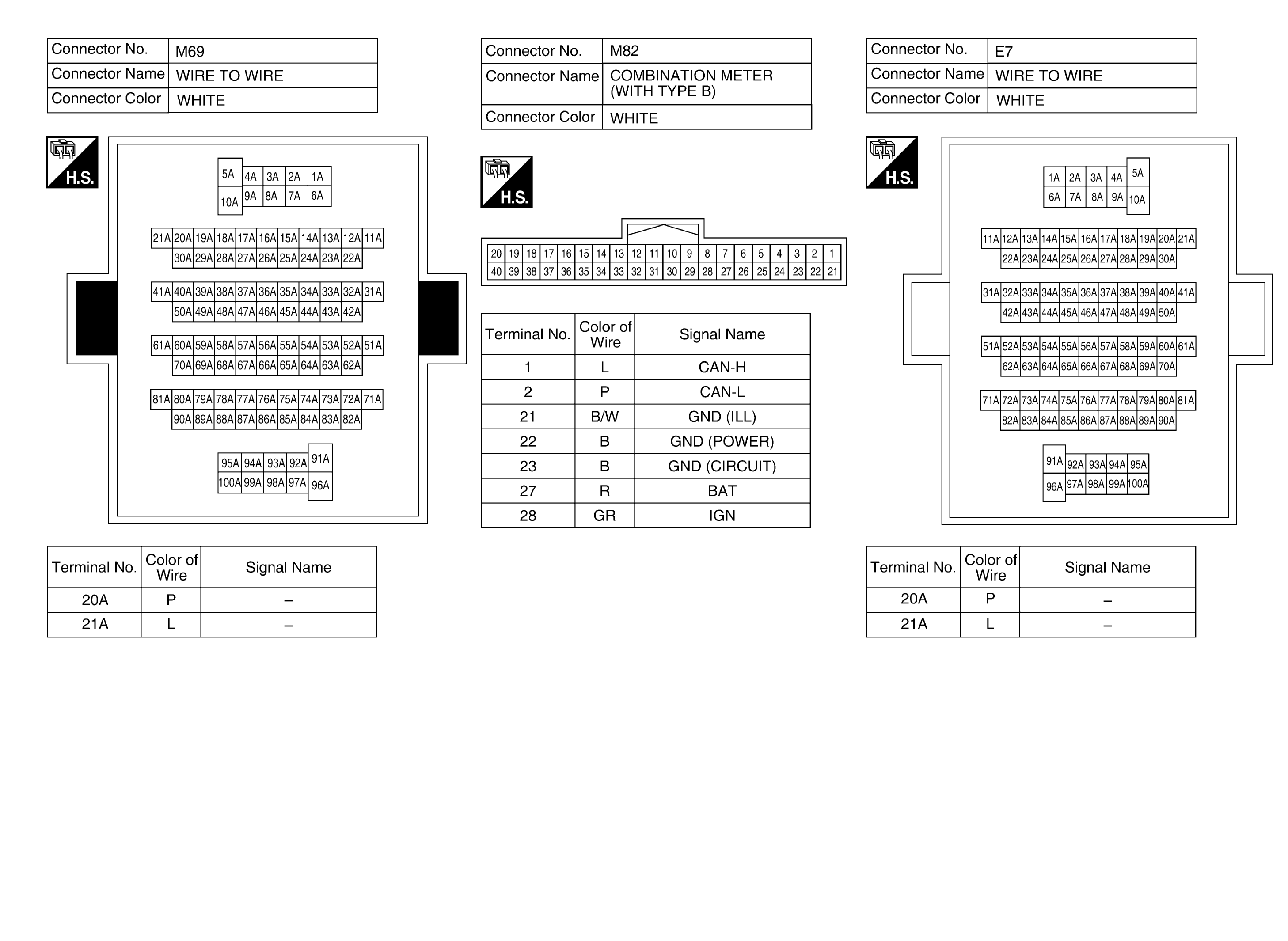

Fig 3: Electronically Controlled Power Steering System Connectors (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

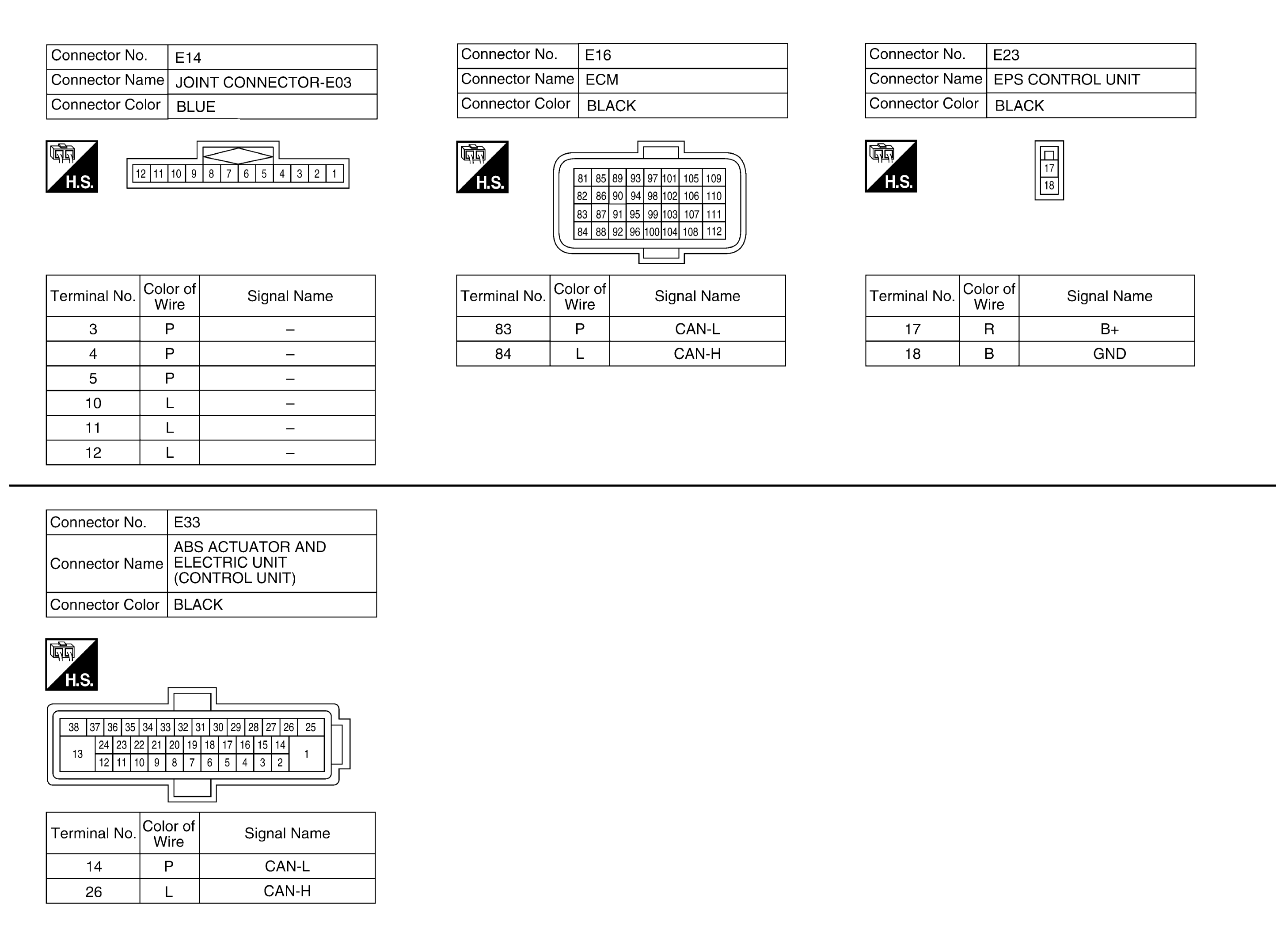

Fig 4: Electronically Controlled Power Steering System Connectors (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
