Exploded View With Torque Specifications

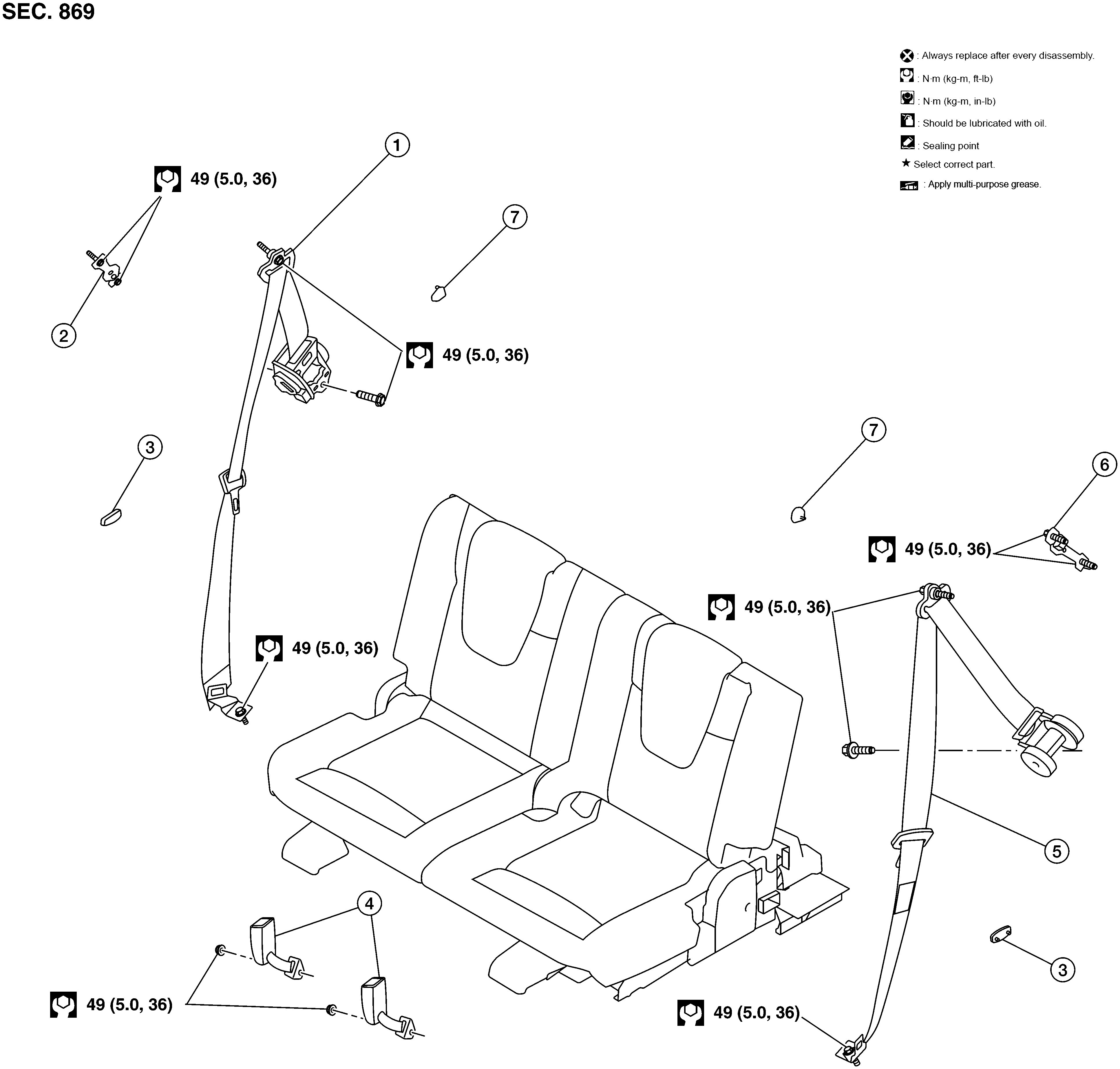

Fig 1: Exploded View Of Third Row Seat Belt With Torque Specifications
GNSAWHIA0730ZZ-730Courtesy of NISSAN NORTH AMERICA, INC.
1. Seat belt retractor (RH) 2. Seat belt D-ring bracket (RH) 3. Seat belt hook (LH/RH)
4. Seat belt buckle (LH/RH) 5. Seat belt retractor (LH) 6. Seat belt D-ring bracket (LH)
7. Seat belt D-ring bolt cover (LH/RH)
