System Display

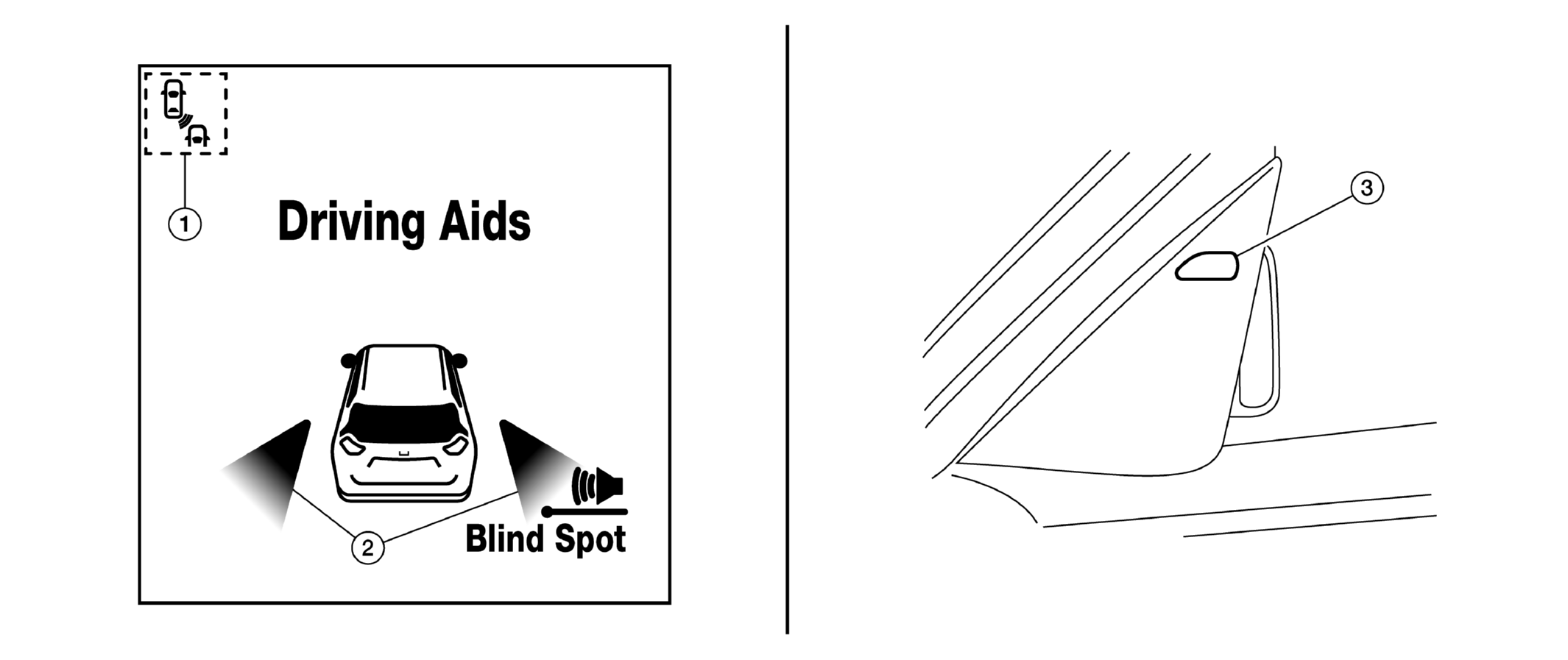

Fig 1: Menu Displayed By Pressing Each Switch
GNSALOIA0322ZZ-322Courtesy of NISSAN NORTH AMERICA, INC.
No. Display item Description
1. Warning system indicator (BSW) Indicates that BSW system is ON
2. Warning system indicator "Blind Spot" position Indicates that BSW system is ON
3. BSW indicator LH/RH
  • Illuminates when detecting other vehicles in the adjacent lane
  • Blinks when warning the driver
