Removal And Installation: Removal

Remove the front door pull handle bracket (LH). Refer to EXPLODED VIEW .
Release pawls using a suitable tool (A) and remove main power window and door lock/unlock switch finisher (1).

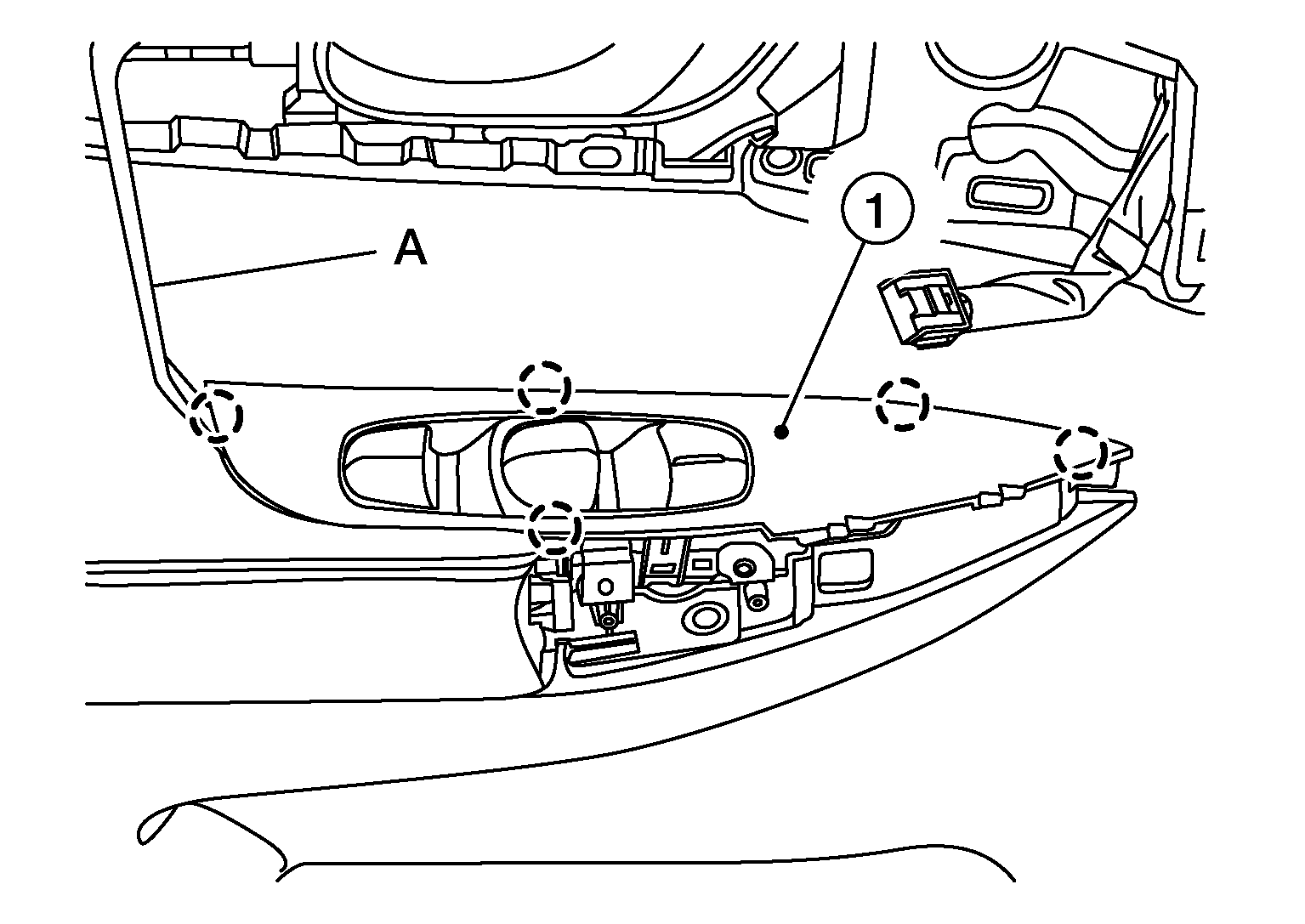

Fig 1: Pawls, Front Door Power Window And Door Lock/Unlock Switch Finisher
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Disconnect the harness connectors from the main power window and door lock/unlock switch.
Release the pawls, then separate the main power window and door lock/unlock switch (1) from the switch finisher (2).

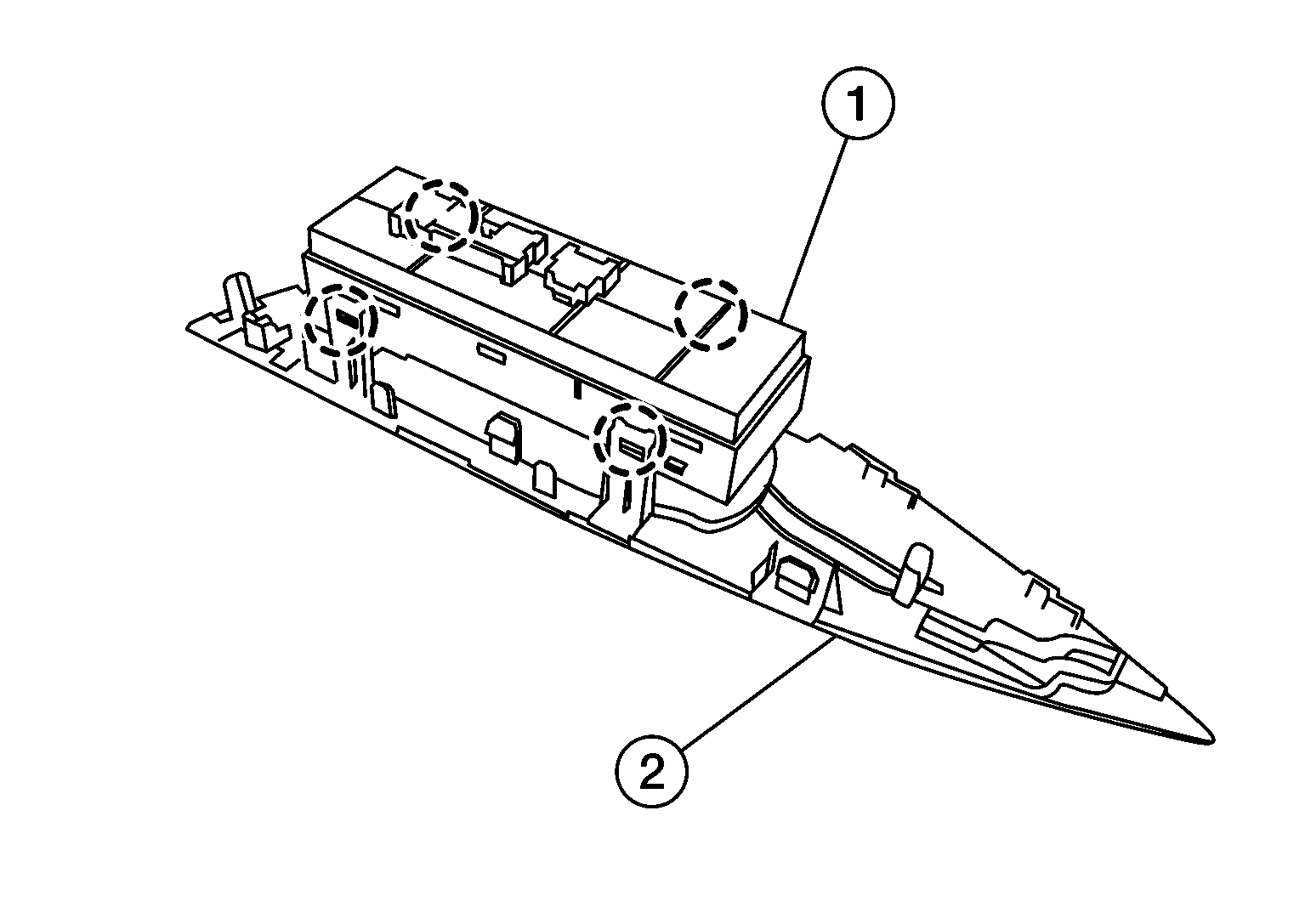

Fig 2: Pawls, Main Power Window And Door Lock/Unlock Switch & Switch Finisher
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
