Exploded View With Torque Specifications

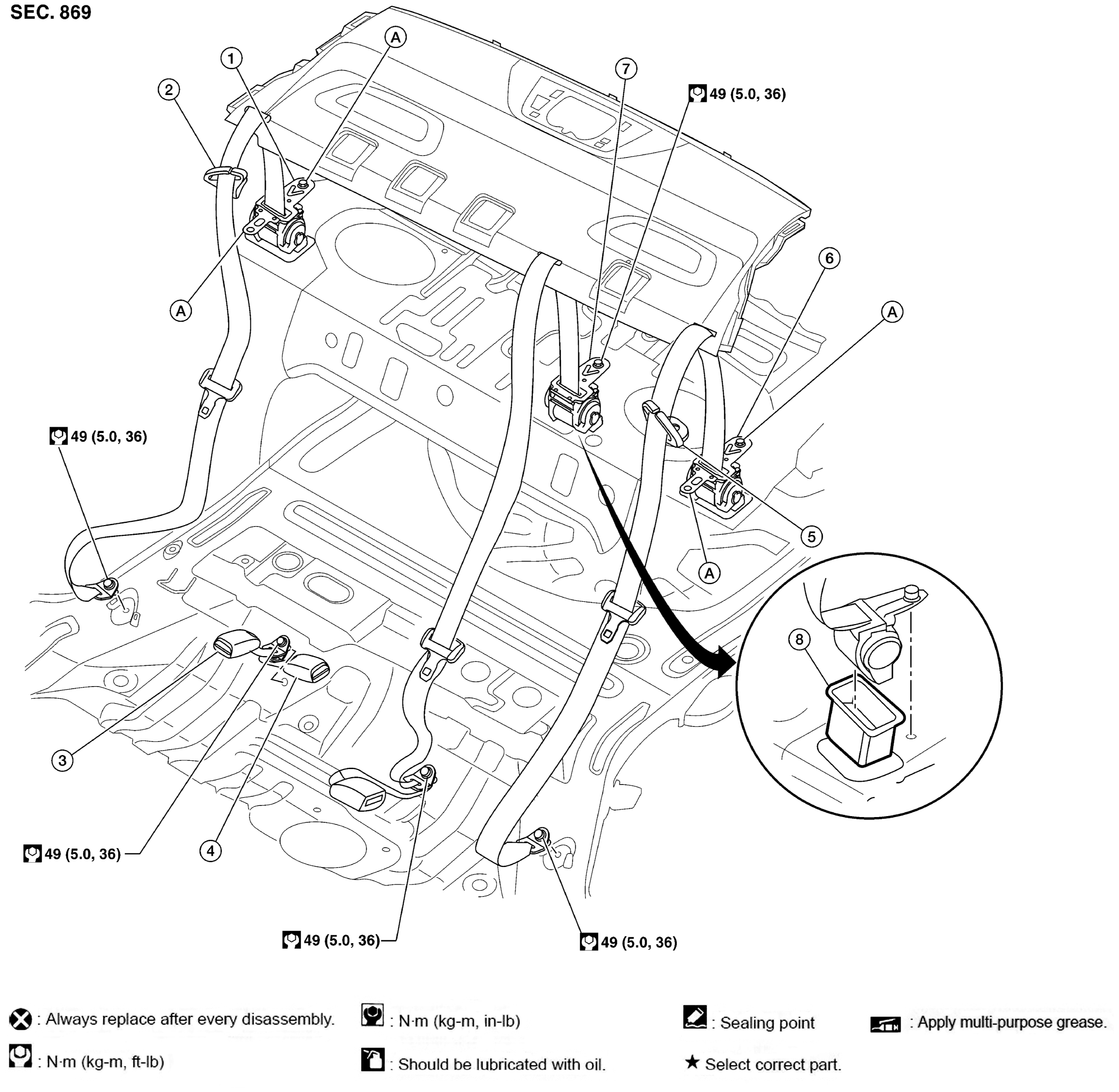

Fig 1: Exploded View Of Rear Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt retractor assembly (RH)	2.	Seat belt hook (RH)	3.	Seat belt buckle (RH)
4.	Seat belt buckle (center)	5.	Seat belt hook (LH)	6.	Seat belt retractor assembly (LH)
7.	Seat belt retractor assembly (center) with seat belt buckle (LH)	8.	Seat belt retractor box	A.	Refer to INSTALLATION
