Method Of Starting

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the preset button 1, turn the volume control dial clockwise and counterclockwise quickly approximately 40 times or more. Shifting from current screen to previous screen is performed by pressing BACK button.

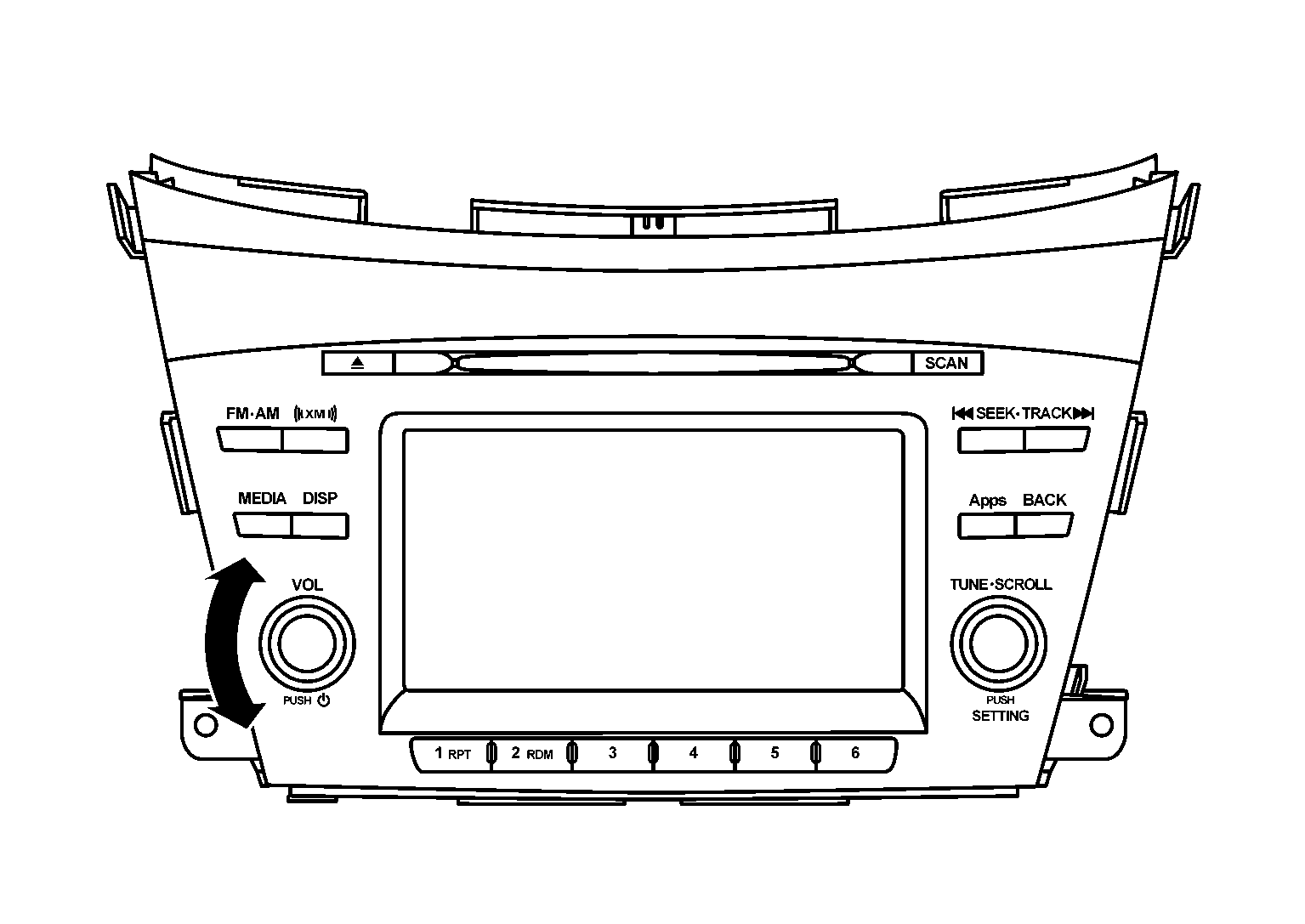

    Fig 1: Locating Preset Button 1 And Volume Control Dial
    GNSAWNIA3790ZZ-790Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.
    Fig 2: System Diagnostic Menu Confirmation/Adjustment Screen Display
    G05219839Courtesy of NISSAN NORTH AMERICA, INC.
