Removal And Installation: Notes

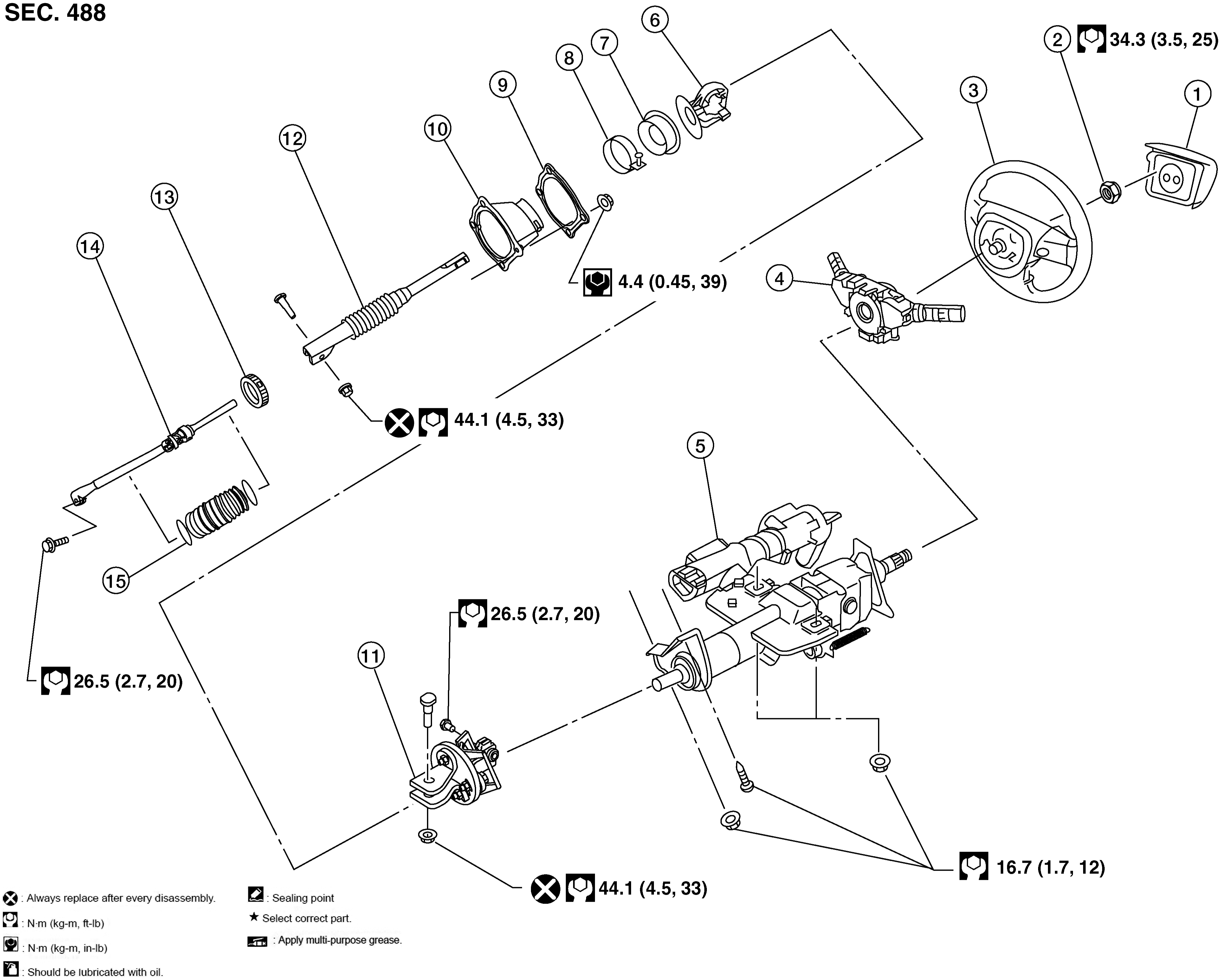

Fig 1: Exploded View Of Steering Column With Torque Specifications
GNSAWGIA0198GB-198Courtesy of NISSAN NORTH AMERICA, INC.
1. Driver air bag module 2. Steering wheel center nut 3. Steering wheel
4. Combination switch and spiral cable 5. Steering column assembly and steering lock unit 6. Collar
7. Hole cover seal 8. Clamp 9. Hole cover plate
10. Hole cover 11. Upper joint 12. Upper shaft
13. Boot clamp 14. Lower joint shaft 15. Boot and clips (plastic)
CAUTION:
  • Do not exert any axial load or impact to the steering column.
  • Do not move the steering gear while the steering column assembly is removed.
