Removal (CANADA Only)

WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel assembly. REMOVAL AND INSTALLATION .

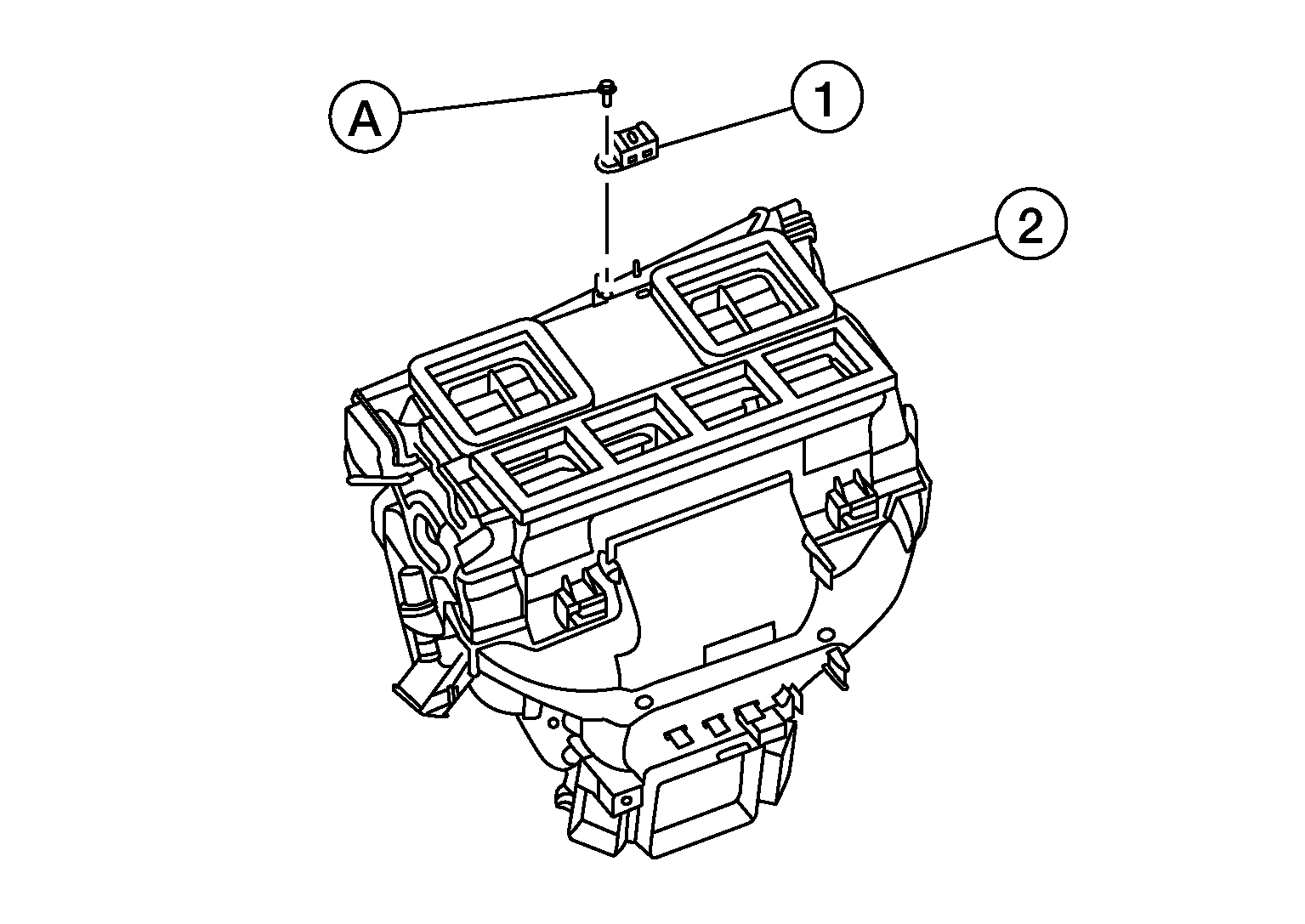

  2. Disconnect the harness connector from the dongle unit (1).
    GNSAWDIA1233ZZ-233Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (A) and dongle unit (1) from heating and cooling unit assembly (2).
