Bulb Replacement: Removal

WARNING: This page is about a different car, the 2017 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front room/map lamp assembly. Refer to REMOVAL AND INSTALLATION .

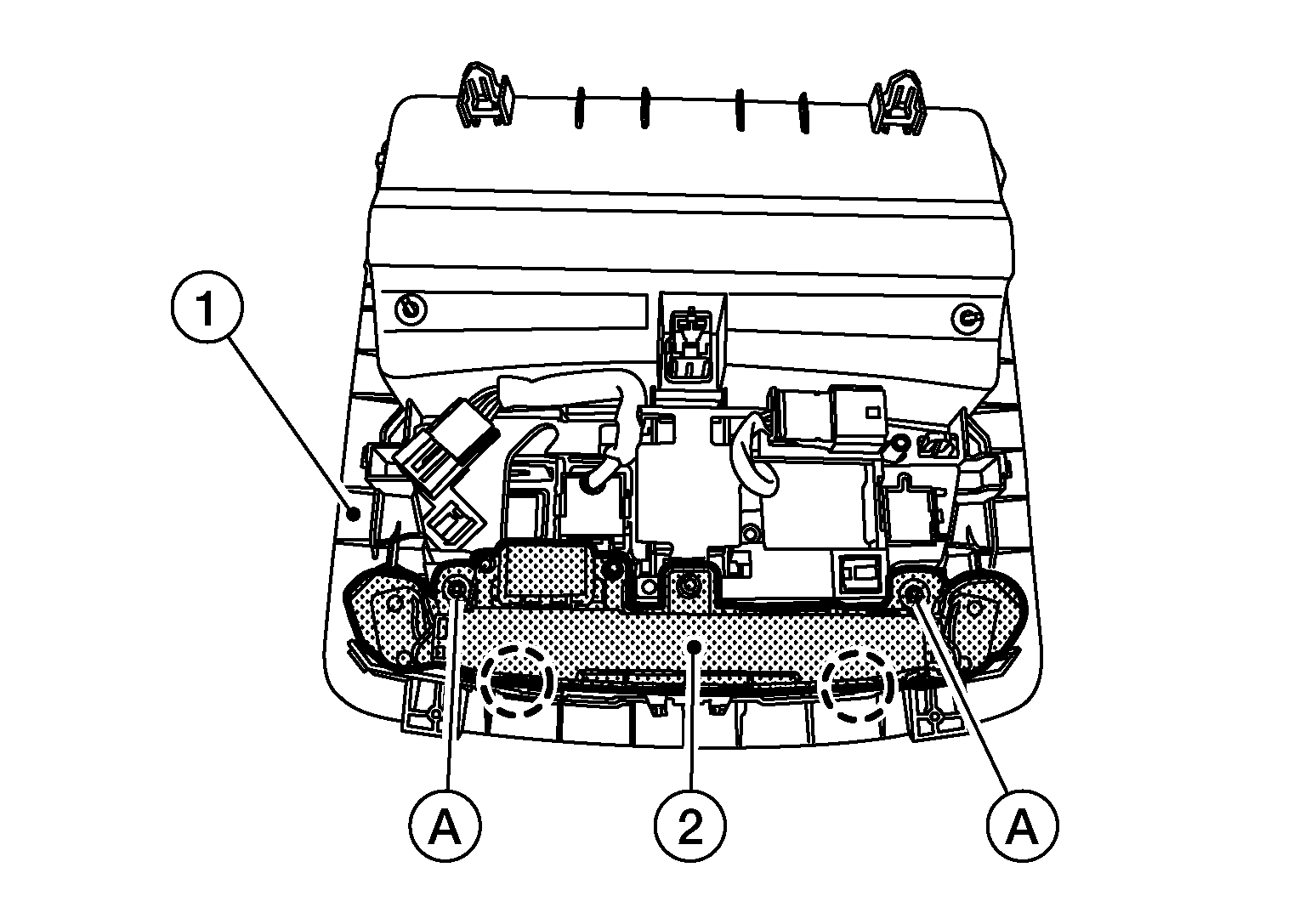

  2. Remove screws (A) from LED unit (2).
    GNSALLIA1568ZZ-568Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the LED unit from the front room/map lamp assembly (1).

    MARU-H : Pawl
