Board-On Lift

CAUTION:

Make sure vehicle is empty when lifting.

  • The board-on lift attachment (LM4086-0200) set at front end of vehicle should be set on the front of the sill under the front door opening.

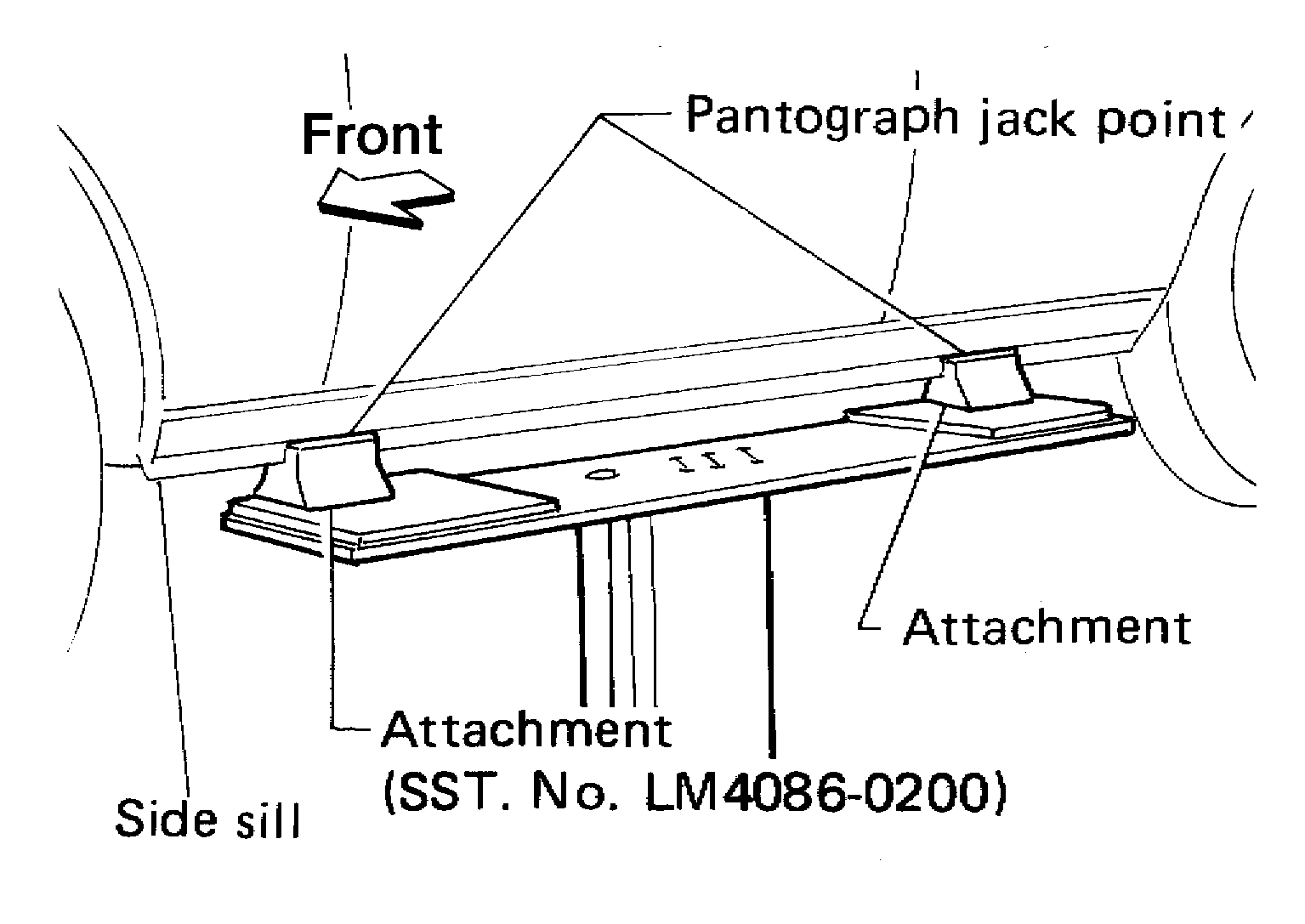

    Fig 1: Identifying Board-On Lift Attachment (LM4086-0200)
    G04144105Courtesy of NISSAN NORTH AMERICA, INC.
  • Position attachments at front and rear ends of board-on lift.
