Exploded View With Torque Specifications

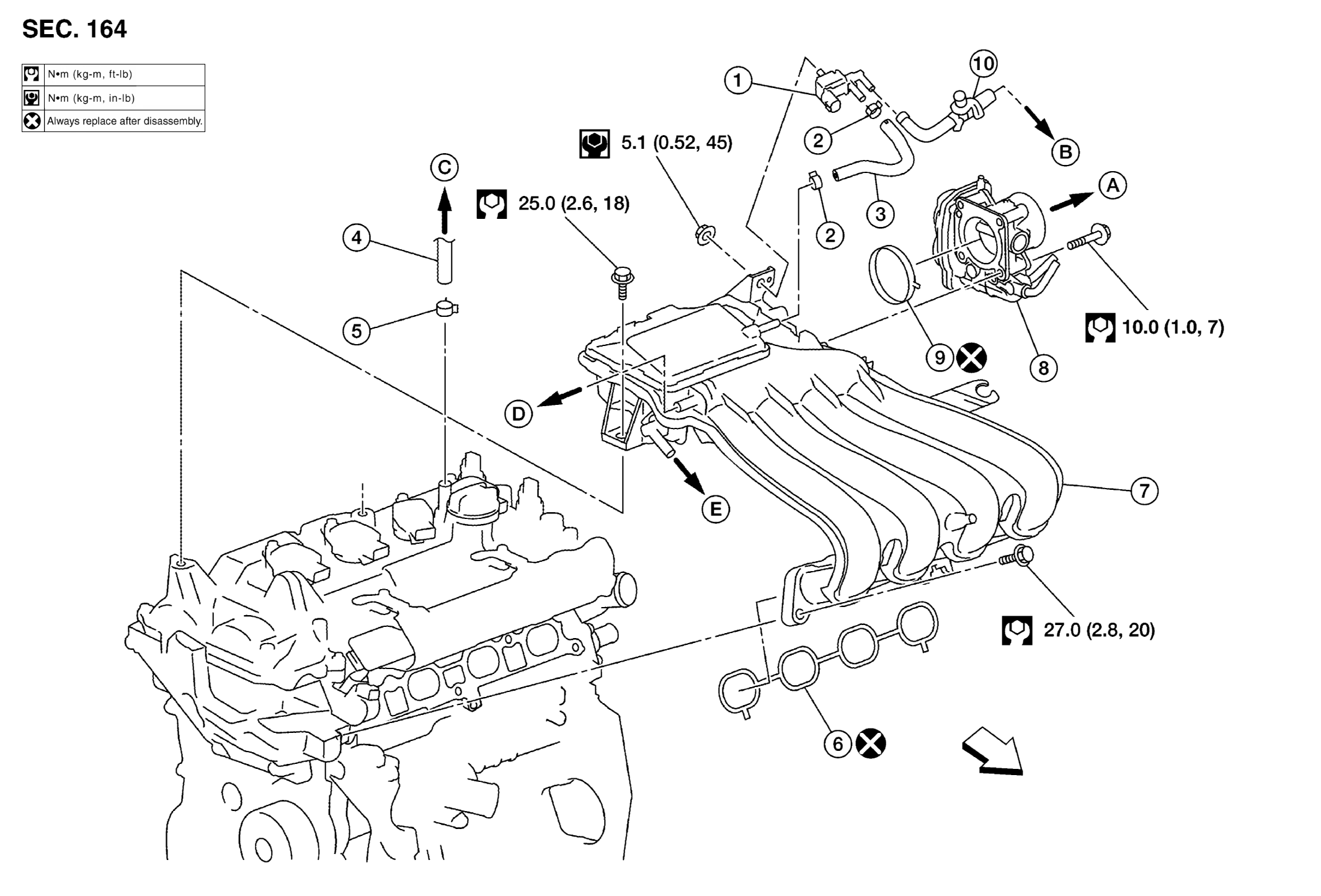

Fig 1: Exploded View Of Intake Manifold With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister purge volume control solenoid valve	2.	Hose clamp	3.	Vacuum hose
4.	PCV hose	5.	Hose clamp	6.	Intake manifold gasket
7.	Intake manifold	8.	Electric throttle control actuator	9.	Electric throttle control actuator gasket
10.	EVAP service port	A.	To air duct	B.	To centralized under-floor piping
C.	To air duct	D.	To brake booster	E.	To PCV valve in rocker cover
	Engine front
