Power Control System (IPDM E/R)
>>
System Description
>>
System
>>
Relay Control System
>>
System Description
>>
System Diagram
System Diagram

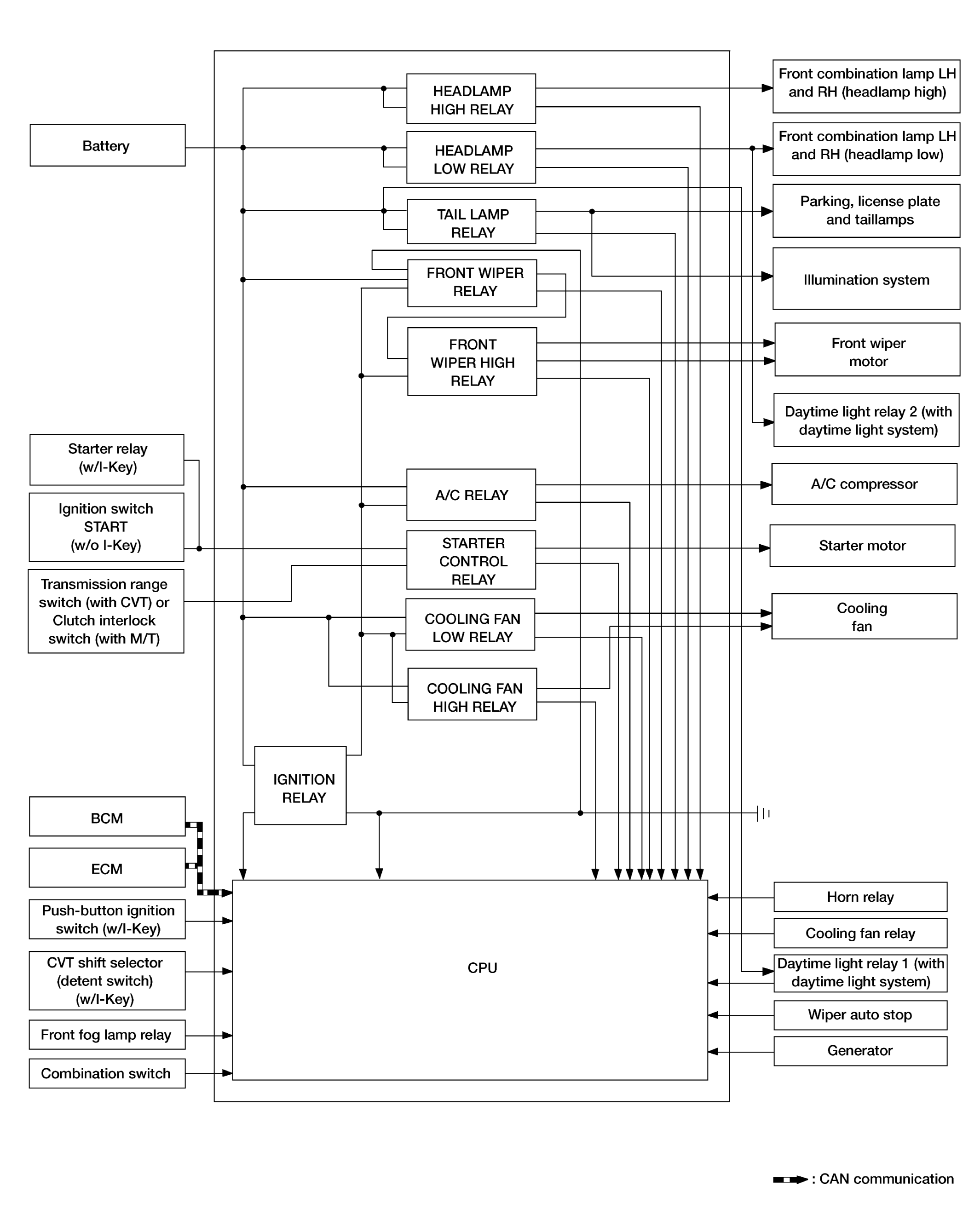

Fig 1: Relay Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
