Component Parts Location

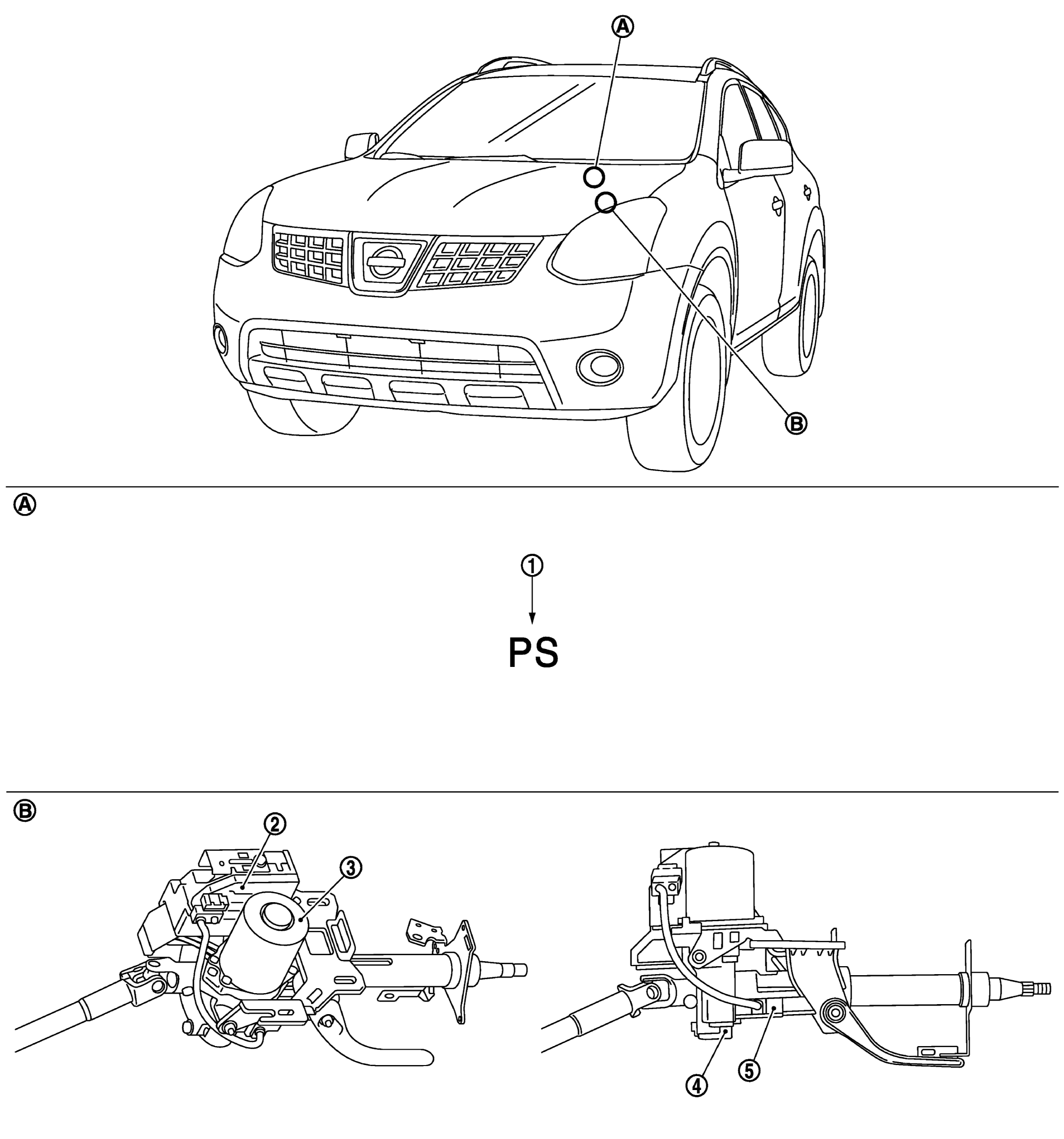

Fig 1: Steering Control System Components Location
GNSJSGIA0256ZZ-256Courtesy of NISSAN NORTH AMERICA, INC.
1. EPS warning lamp 2. EPS control unit 3. EPS motor
4. Reduction gear 5. Torque sensor
A. Combination meter B. Steering column assembly
