Exploded View With Torque Specifications

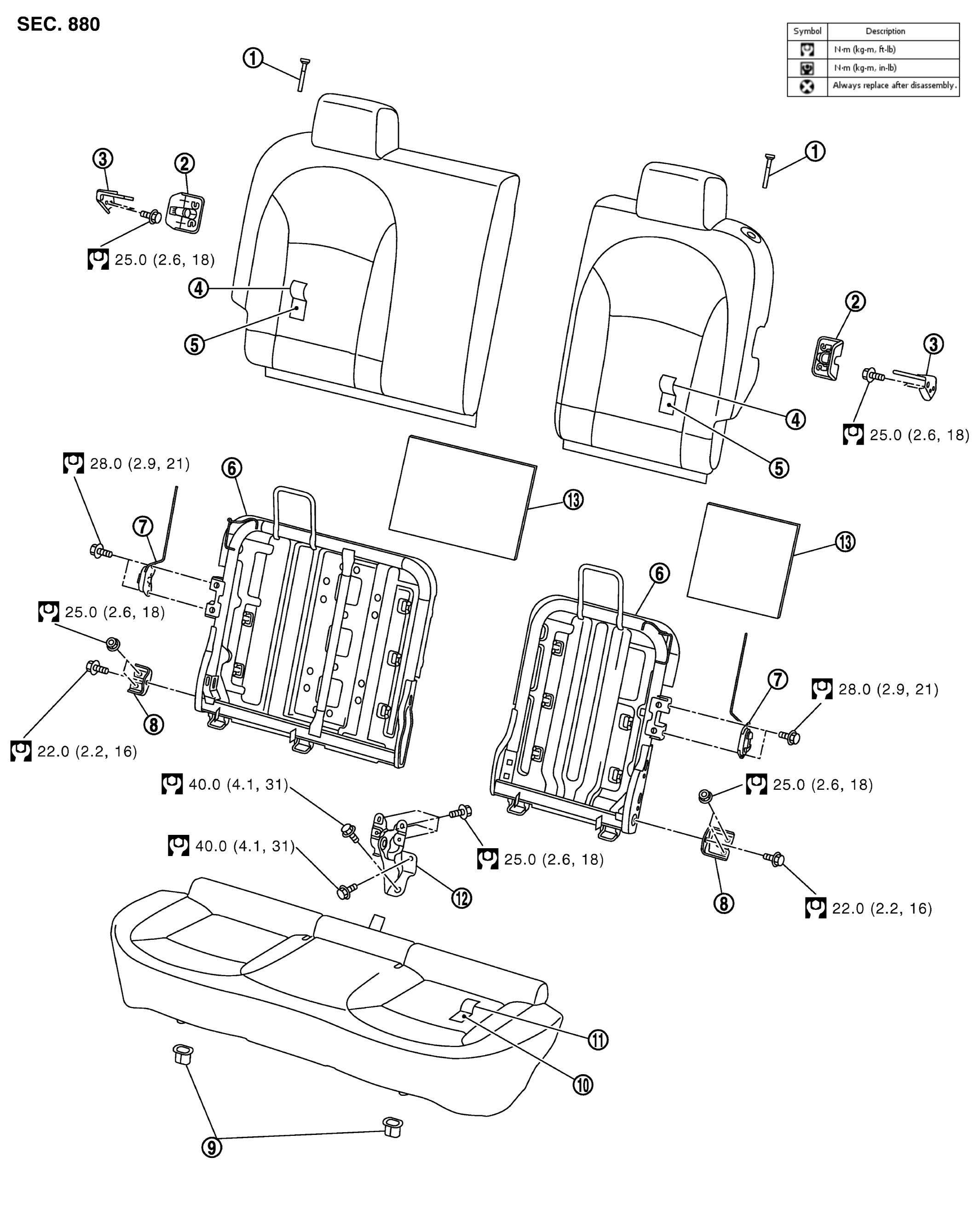

Fig 1: Exploded View Of Rear Seat With Torque Specifications

G08179715

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback lock knob	2.	Seatback lock finisher	3.	Seat striker
4.	Seatback trim	5.	Seatback pad	6.	Seatback frame
7.	Seatback lock assembly	8.	Seatback side hinge	9.	Seat cushion hook
10.	Seat cushion pad	11.	Seat cushion trim	12.	Seatback center bracket
13.	Seatback silencer
	: N•m (kg - m, ft - lb)
