Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. Refer to REMOVAL AND INSTALLATION .
  2. Remove the front kicking plate (LH). Refer to REMOVAL AND INSTALLATION - FRONT KICKING PLATE .
  3. Remove the dash side finisher (LH). Refer to REMOVAL AND INSTALLATION .
  4. Remove the instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  5. Disconnect the fuse box and the harness connectors.
  6. Remove the bolt (A), then pull out the BCM (1).

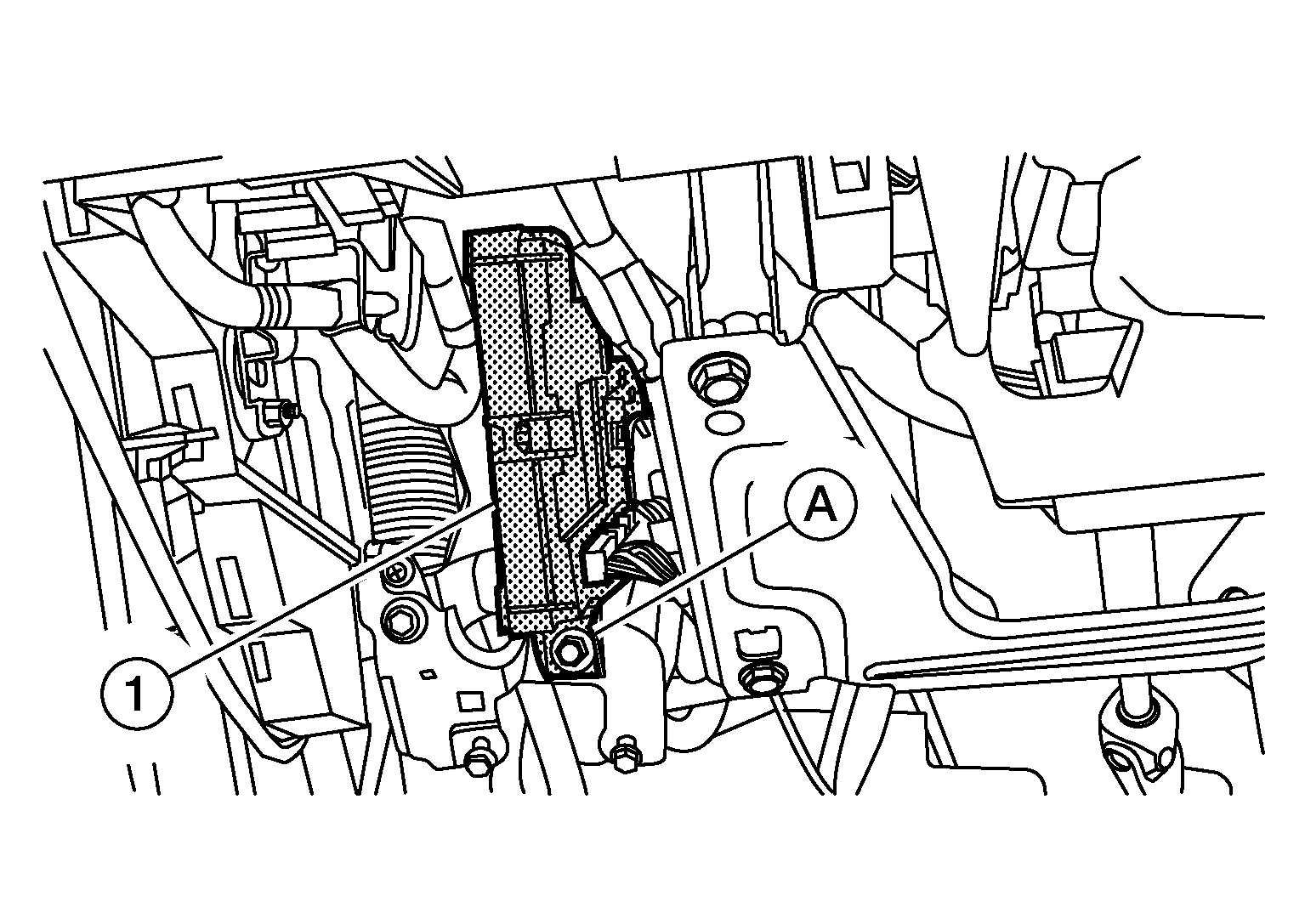

    Fig 1: Identifying BCM And Mounting Bolt
    G09157509Courtesy of NISSAN NORTH AMERICA, INC.
  7. Disconnect the harness connectors from the BCM and remove.
