Exploded View With Torque Specifications

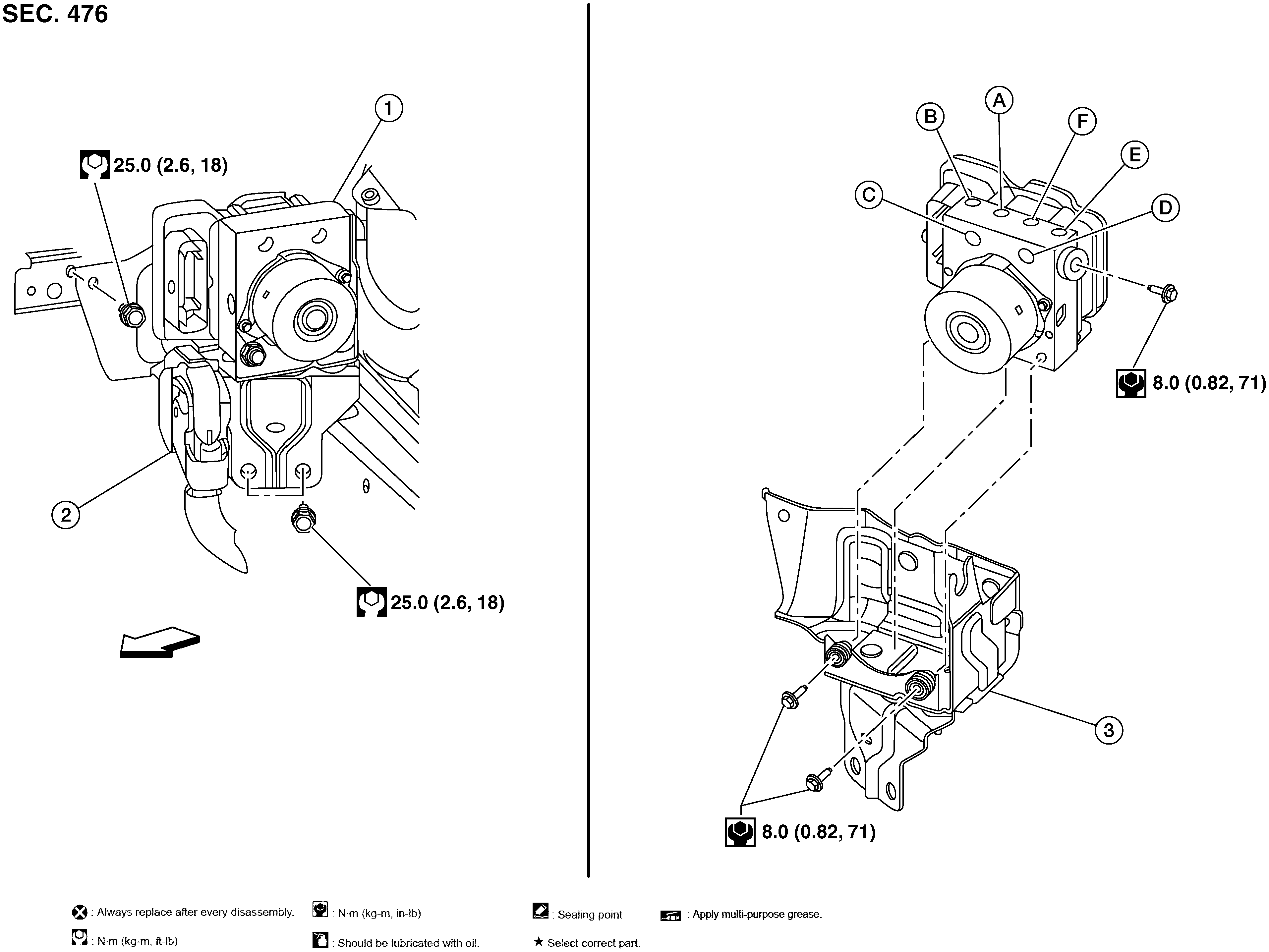

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Connector	3.	Bracket
A.	To front LH brake caliper	B.	To rear RH brake caliper	C.	From master cylinder secondary side
D.	From master cylinder primary side	E.	To rear LH brake caliper	F.	To front RH brake caliper
