ASCD Steering Switch

ASCD steering switch has various values of electrical resistance for each button. VCM reads voltage variation of switch, and determines which button is operated.

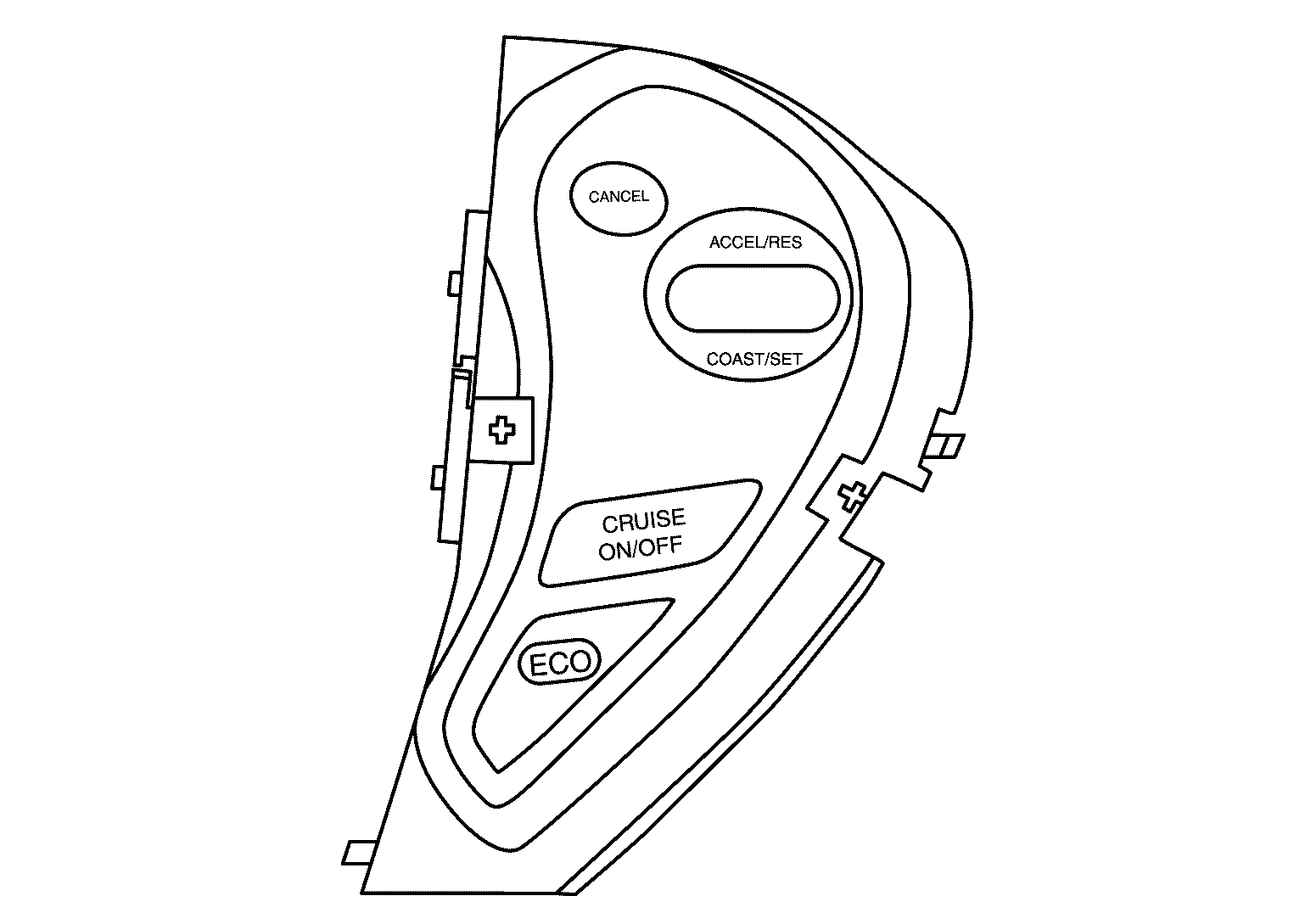

Fig 1: Identifying ASCD Steering Switch
G08702908Courtesy of NISSAN NORTH AMERICA, INC.
