Component Parts Location

WARNING: This page is about a different variant/trim than selected.

ENGINE ROOM COMPARTMENT

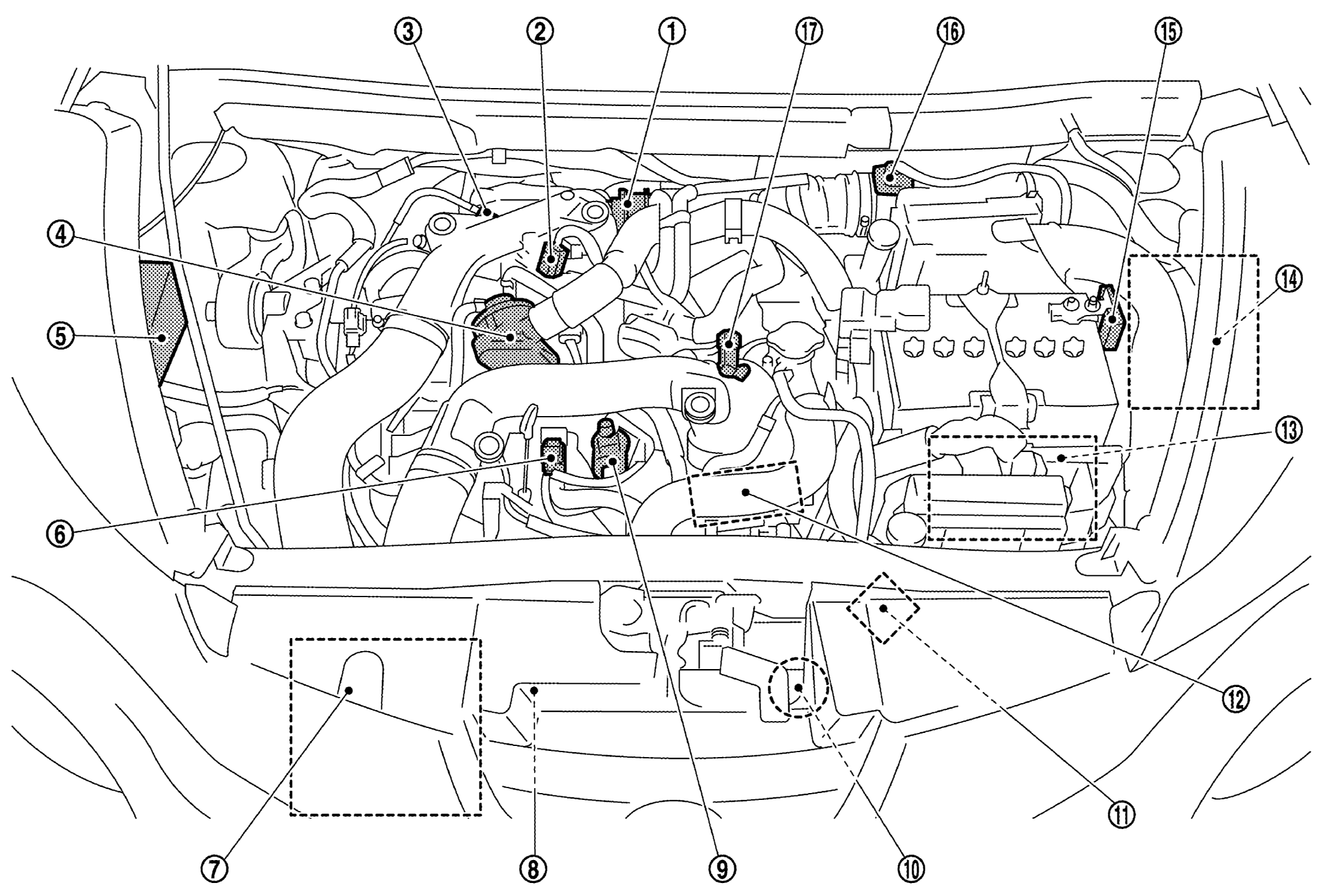

Fig 1: Engine Control System Components Location (Engine Room Compartment)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Boost Control Actuator	2.	Turbocharger Boost Control Solenoid Valve	3.	A/F Sensor 1
4.	Recirculation Valve	5.	Relay Box Fuel Injector Relay Fuel Pump Relay	6.	EVAP Canister Purge Volume Control Solenoid Valve
7.	Intercooler	8.	Refrigerant Pressure Sensor Refer to COMPONENT PARTS LOCATION .	9.	EVAP Service Port
10.	Cooling Fan Motor	11.	Cooling Fan Control Module	12.	Electric Throttle Control Actuator (With Built In Throttle Position Sensor And Throttle Control Motor)
13.	ECM	14.	IPDM E/R Refer to COMPONENT PARTS LOCATION .	15.	Battery Current Sensor (With Battery Temperature Sensor)
16.	Mass Air Flow Sensor (With Intake Air Temperature Sensor 1)	17.	Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2)

ENGINE COMPARTMENT

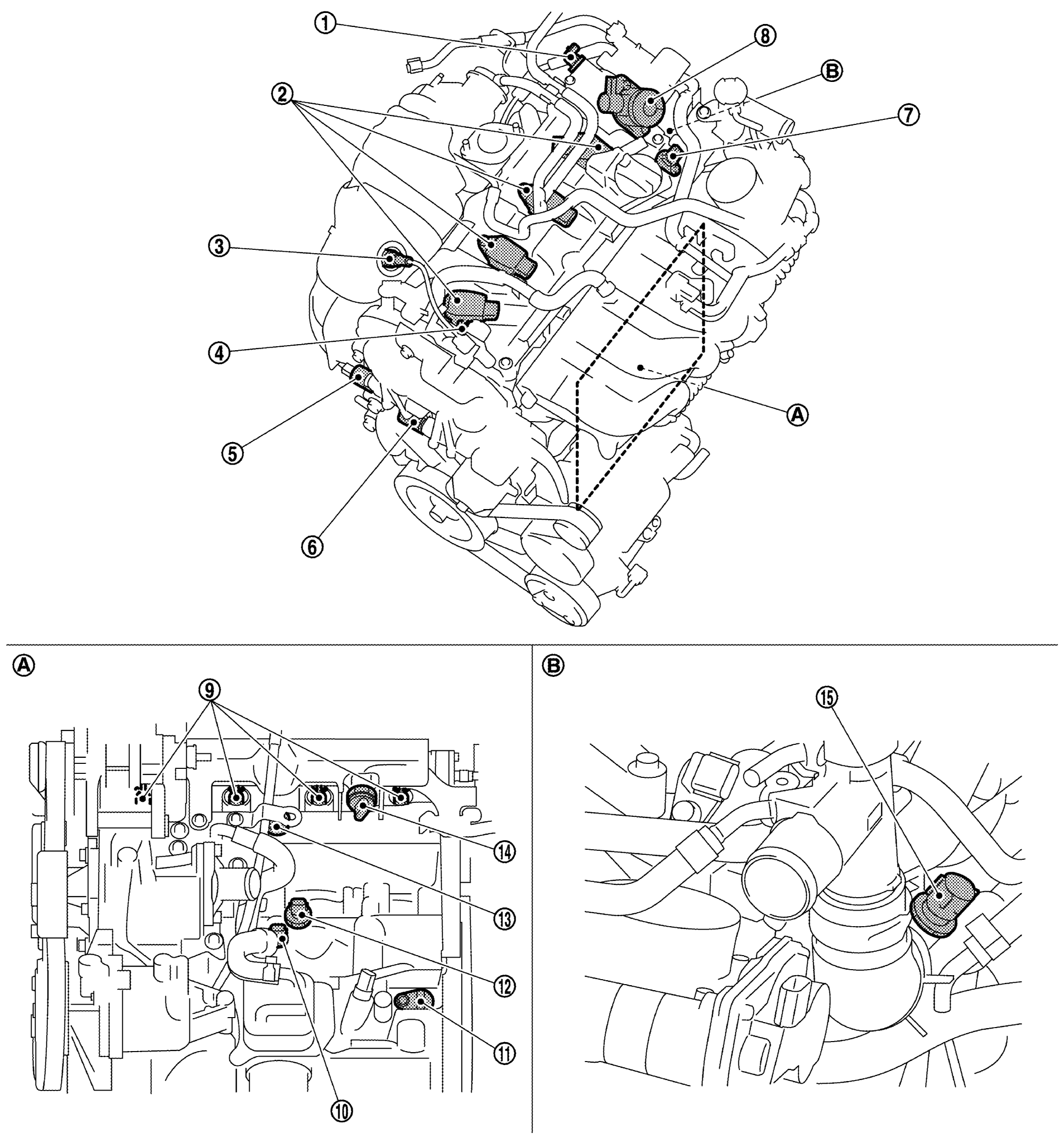

Fig 2: Engine Control System Components Location (Engine Compartment)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Exhaust Valve Timing Control Position Sensor	2.	Ignition Coil (With Power Transistor)	3.	A/F Sensor 1
4.	PCV Valve	5.	Exhaust Valve Timing Control Solenoid Valve	6.	Intake Valve Timing Control Solenoid Valve
7.	Camshaft Position Sensor (PHASE)	8.	High Pressure Fuel Pump	9.	Fuel Injector
10.	Engine Oil Temperature Sensor	11.	Crankshaft Position Sensor (POS)	12.	Engine Oil Pressure Sensor
13.	Knock Sensor	14	Fuel Rail Pressure Sensor	15.	Engine Coolant Temperature Sensor
A.	Cylinder Block Left Side	B.	Engine Rear End

EXHAUST COMPARTMENT

2WD

Fig 3: Locating A/F Sensor 1 And Heated Oxygen Sensor 2 (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

A/F Sensor 1

Heated Oxygen Sensor 2

AWD

Fig 4: Locating A/F Sensor 1 And Heated Oxygen Sensor 2 (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

A/F Sensor 1

Heated Oxygen Sensor 2

BODY COMPARTMENT

Fig 5: Engine Control System Components Location (Body Compartment)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ASCD Steering Switch	2.	Fuel Level Sensor Unit, Fuel Filter And Fuel Pump Assembly	3.	Fuel Tank Temperature Sensor
4.	Clutch Pedal Position Switch (With M/T Models)	5.	Brake Pedal Position Switch (With M/T Models)	6.	Stop Lamp Switch (With M/T Models)
7.	Accelerator Pedal Position Sensor (With M/T Models)	8.	Brake Pedal Position Switch (With CVT Models)	9.	Stop Lamp Switch (With CVT Models)
10.	Accelerator Pedal Position Sensor (With CVT Models)	11.	G Sensor (With 2WD Models)	12.	G Sensor (With AWD Models)
13.	EVAP Control System Pressure Sensor	14.	EVAP Canister Vent Control Valve	15.	EVAP Canister
A.	Under Of Right Side Second Seat	B.	Periphery Of Pedals	C.	Under Of Left Side Front Seat
D.	Fuel Tank Rear
Arrow	Vehicle front
