Removal And Installation: Removal

1. Using a suitable tool, release the metal clip and pawls, then lift upward the rear power window switch and finisher (2) as an assembly.
2. Disconnect the harness connector.
3. Remove the rear power window switch and finisher (2) assembly from the rear door finisher.
4. Release the two tabs (A), one on each side, then separate the rear power window switch (1) from the rear power window switch finisher (2).

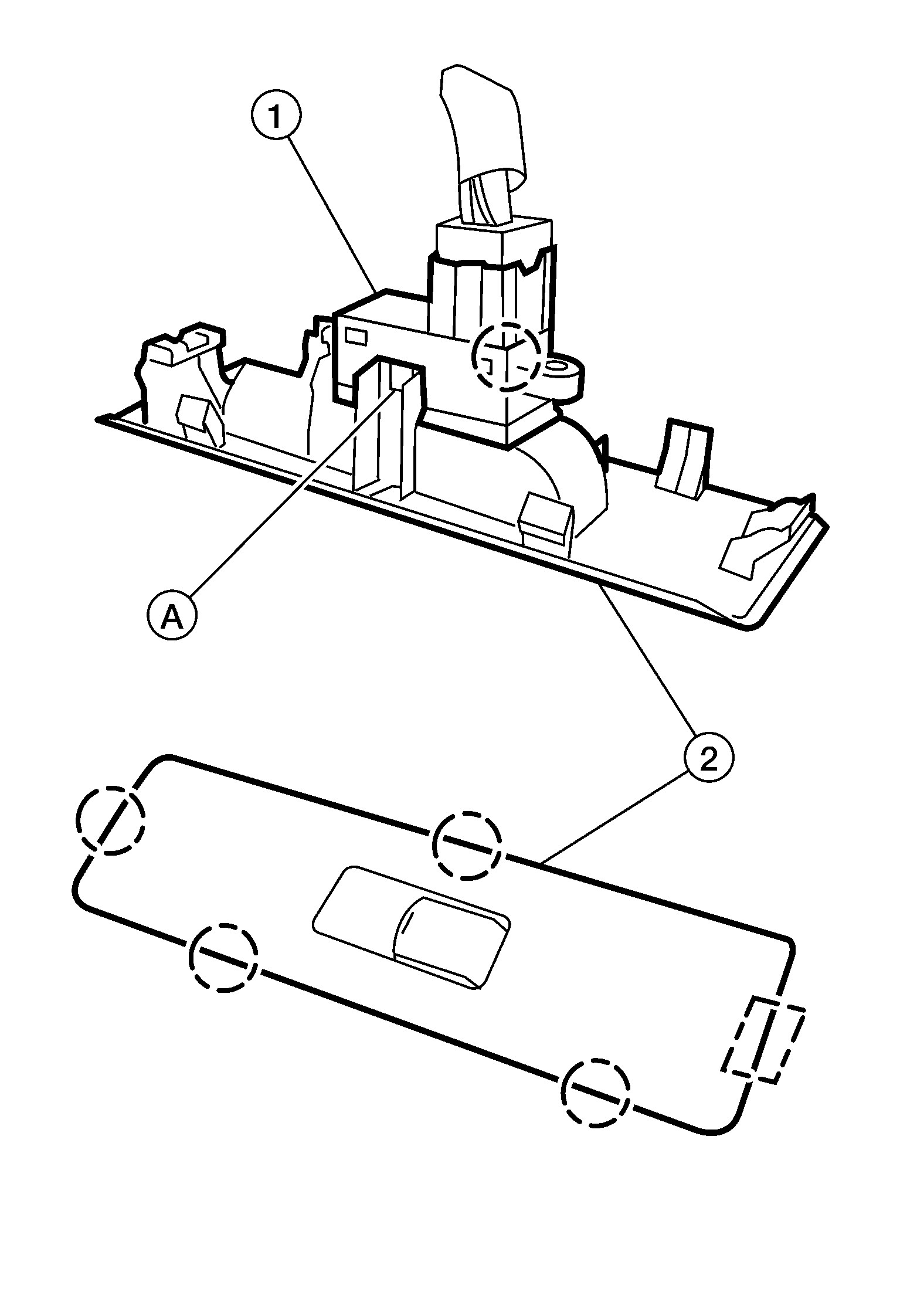

Fig 1: Locating Rear Power Window Switch Tabs And Finisher

Courtesy of NISSAN NORTH AMERICA, INC.

□: Metal clip

◦: Pawls
