Power Window System Connector End Views - With Left Front Only Anti-Pinch System

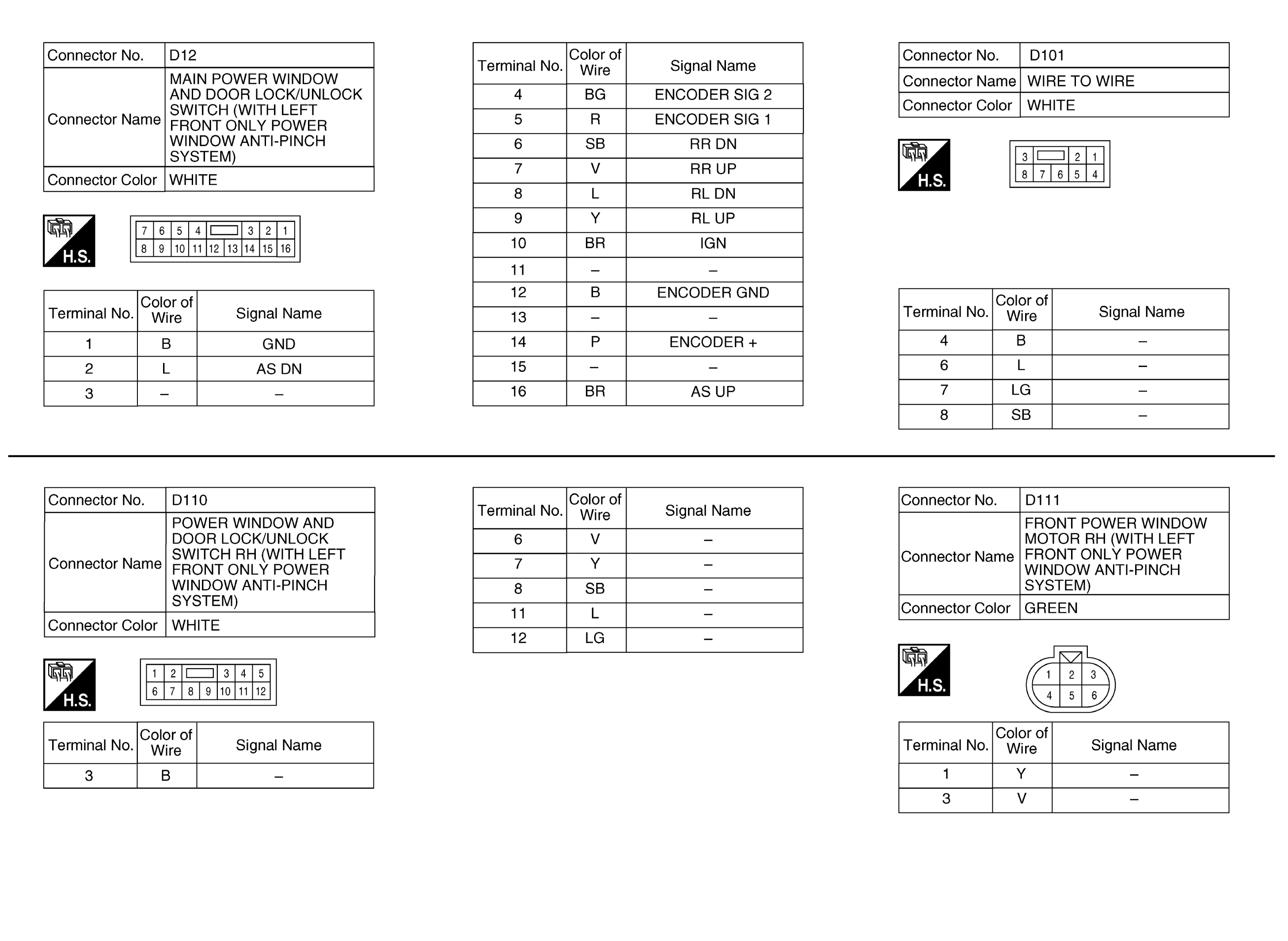

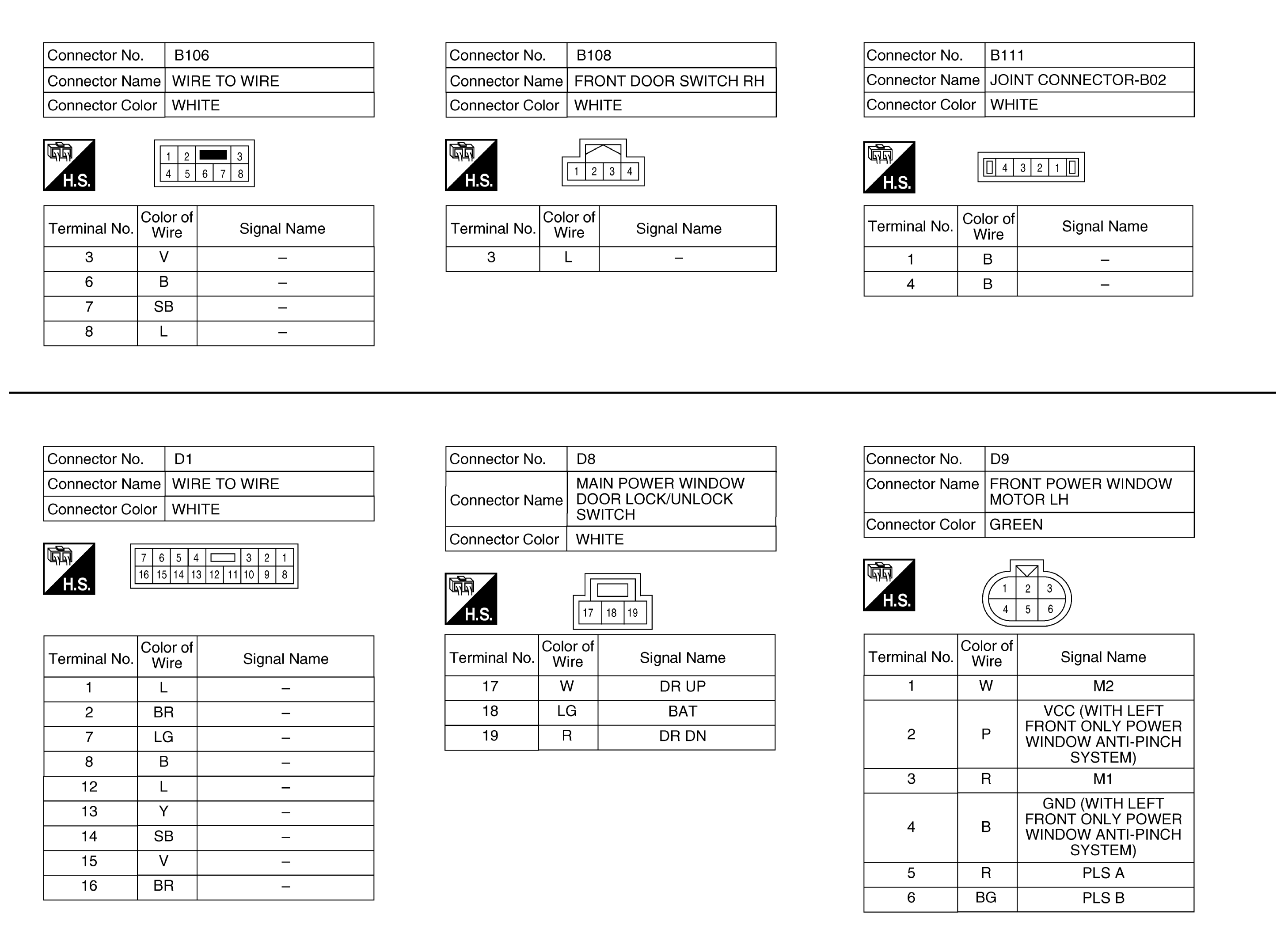

Fig 1: Power Window System Connector End Views (With Left Front Only Anti-Pinch System) (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Window System Connector End Views (With Left Front Only Anti-Pinch System) (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Window System Connector End Views (With Left Front Only Anti-Pinch System) (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector End Views (With Left Front Only Anti-Pinch System) (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Power Window System Connector End Views (With Left Front Only Anti-Pinch System) (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Power Window System Connector End Views (With Left Front Only Anti-Pinch System) (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
