Removal and Installation: Removal

  1. Remove rear power window switch finisher (1) assembly using a suitable tool (A).

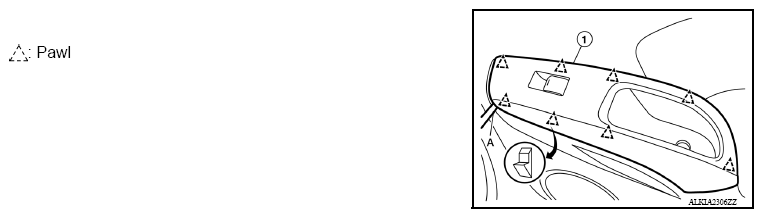

    Fig 1: Removing Rear Power Window Switch Finisher Assembly Using Suitable Tool
    G09616203Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect the harness connector from the rear power window switch.
  3. Separate rear power window switch (1) from rear power window switch finisher using a suitable tool.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.

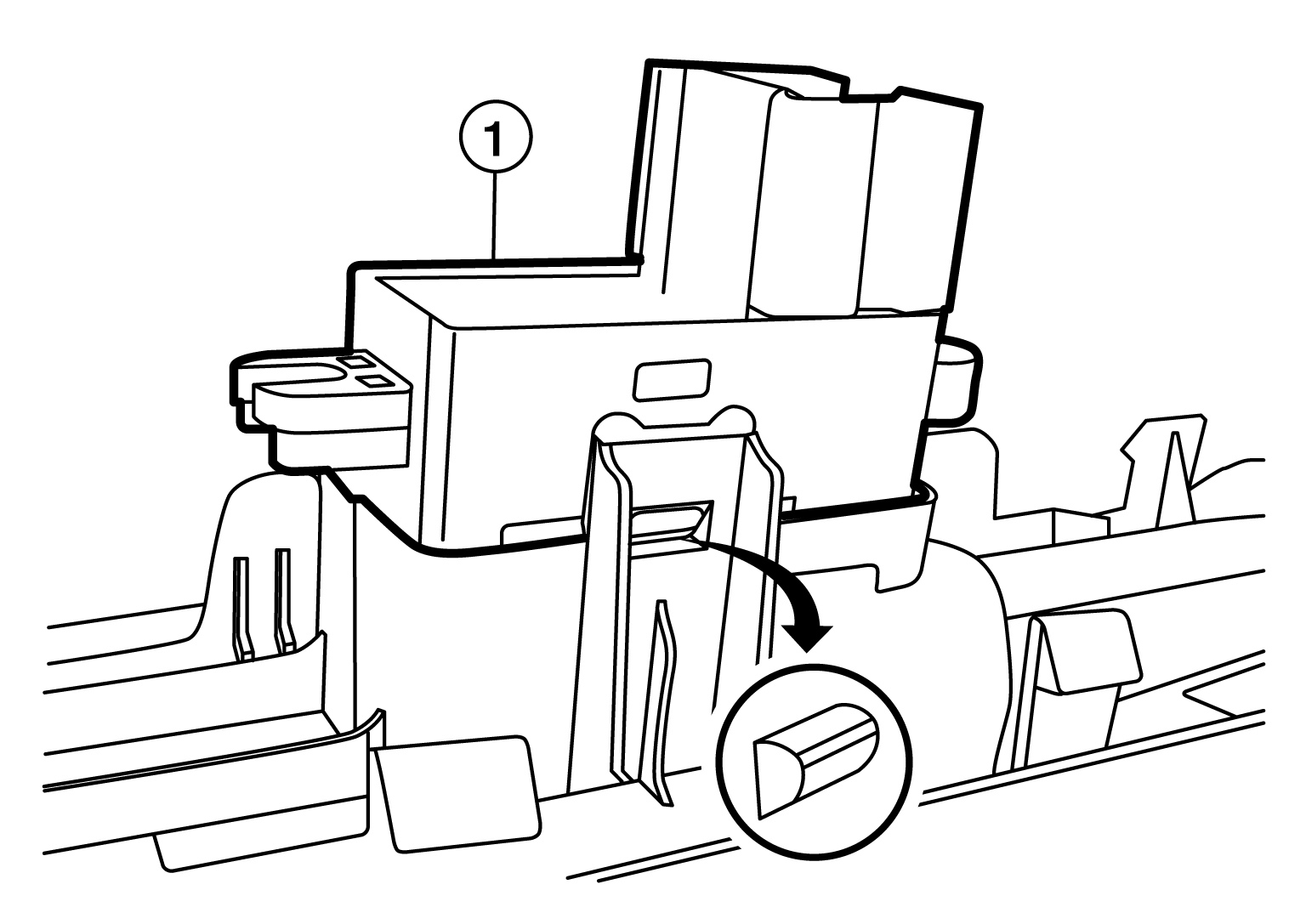

    Fig 2: Identifying Rear Power Window Switch
    G08204190Courtesy of NISSAN NORTH AMERICA, INC.
