Knock Sensor Connector End View (F14)

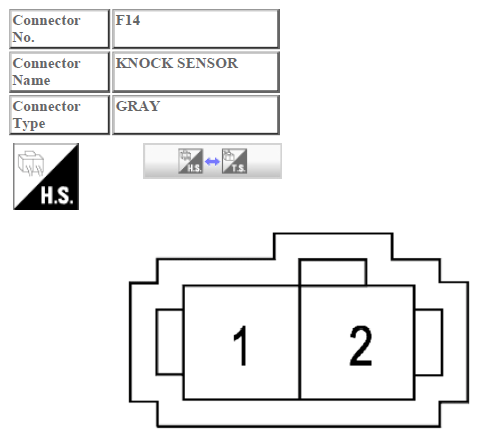

Fig 1: Knock Sensor Connector End View (F14)

G10426005

Courtesy of NISSAN NORTH AMERICA, INC.
