IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (Fuse48)

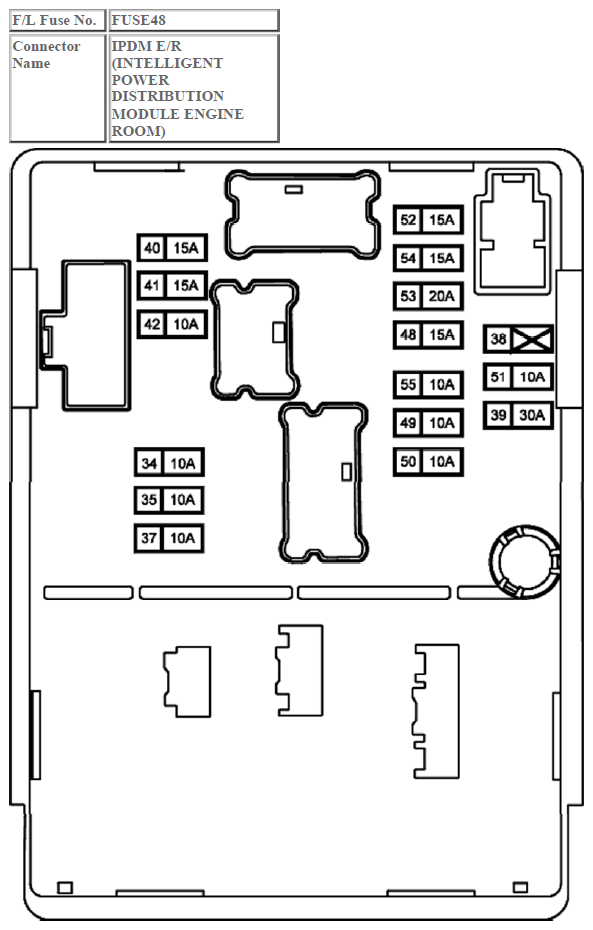

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (Fuse48)
G10425990Courtesy of NISSAN NORTH AMERICA, INC.
