Fuel Level Sensor Unit And Fuel Pump Connector End View (B44)

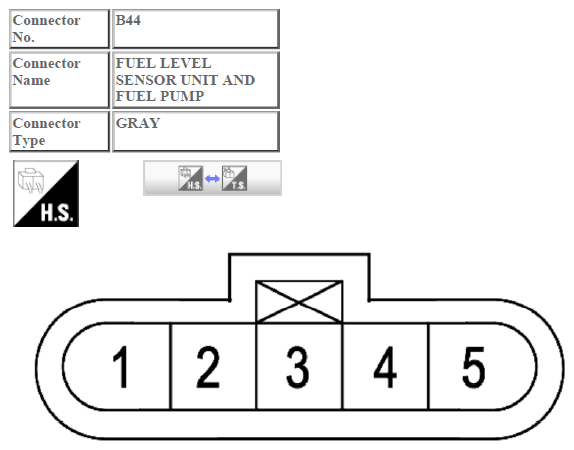

Fig 1: Fuel Level Sensor Unit And Fuel Pump Connector End View (B44)

G10425904

Courtesy of NISSAN NORTH AMERICA, INC.
