Front Passenger Air Bag Module Connector End View (M77)

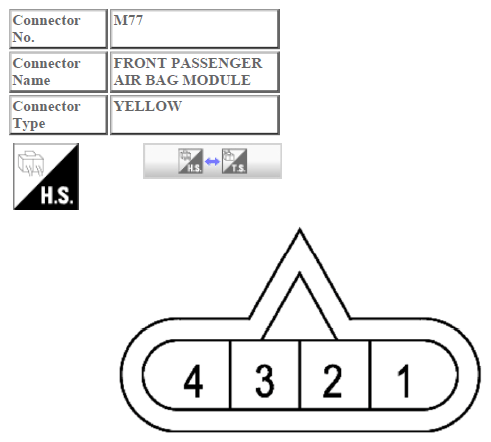

Fig 1: Front Passenger Air Bag Module Connector End View (M77)

G10425885

Courtesy of NISSAN NORTH AMERICA, INC.
