System - Engine Mechanical & Other

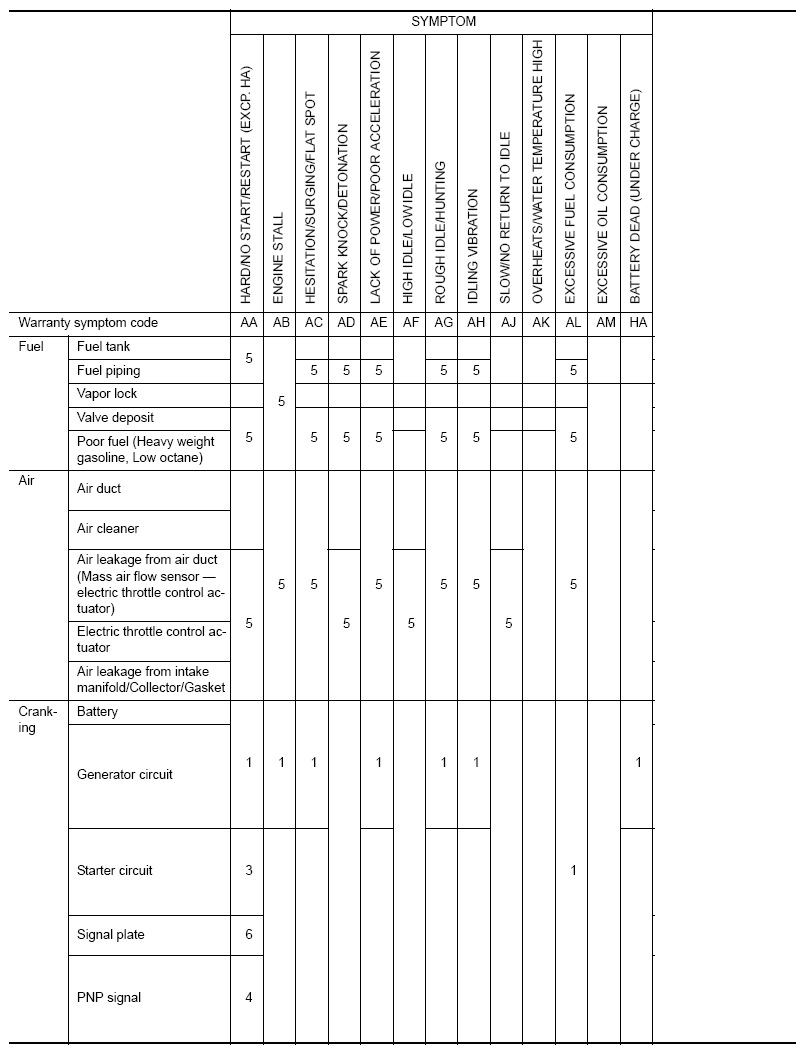

Fig 1: Symptoms Chart - System - Engine Mechanical & Other (1 Of 3)
G09617774Courtesy of NISSAN NORTH AMERICA, INC.

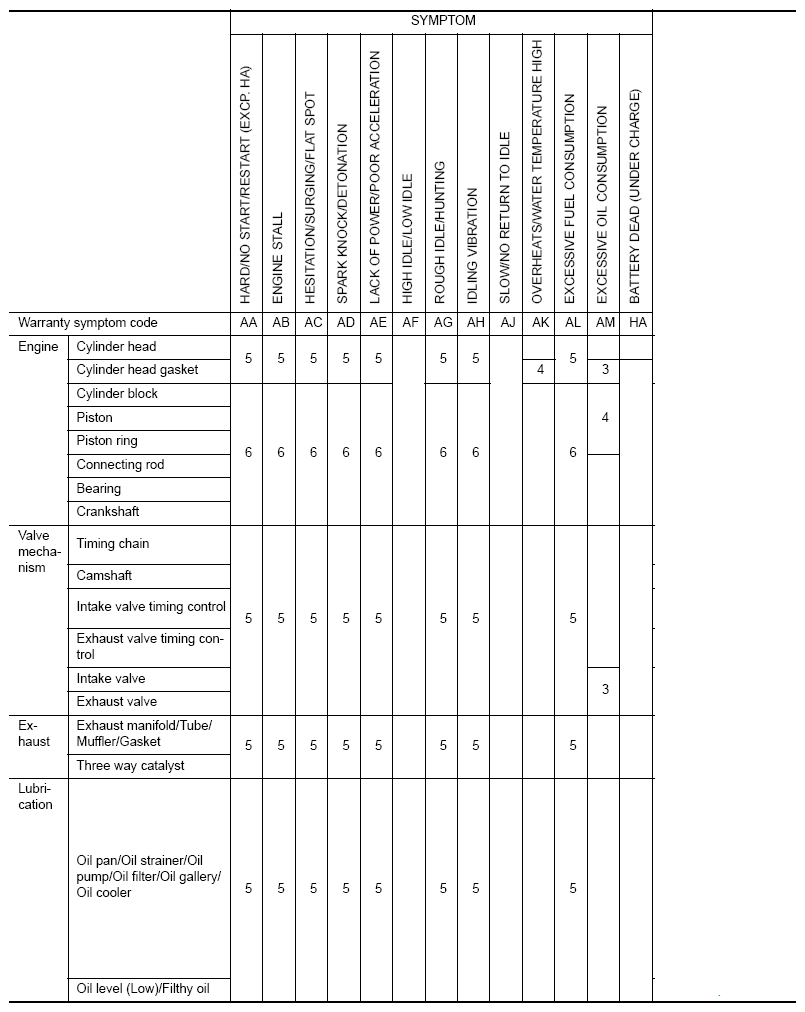

Fig 2: Symptoms Chart - System - Engine Mechanical & Other (2 Of 3)
G09617775Courtesy of NISSAN NORTH AMERICA, INC.

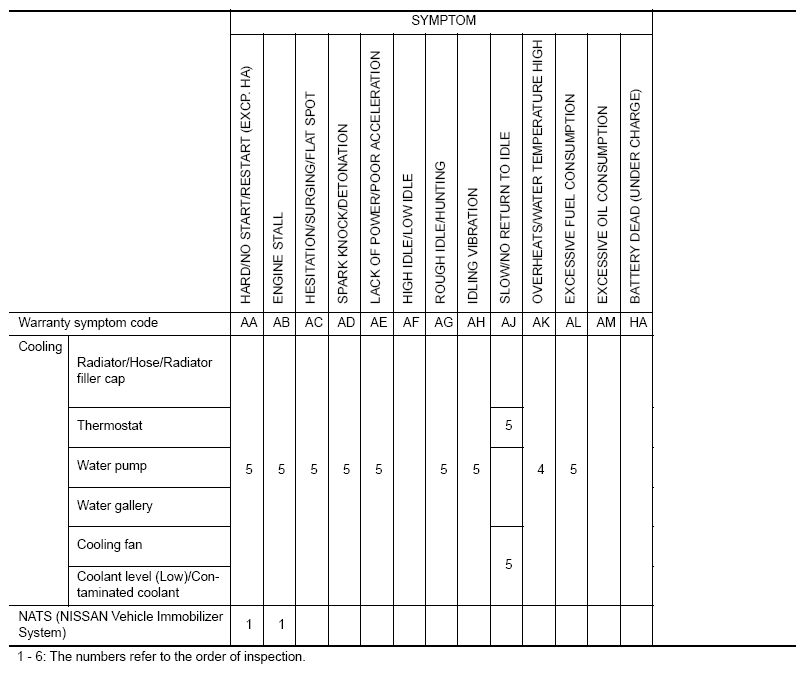

Fig 3: Symptoms Chart - System - Engine Mechanical & Other (3 Of 3)
G09617776Courtesy of NISSAN NORTH AMERICA, INC.
