Connector End Views

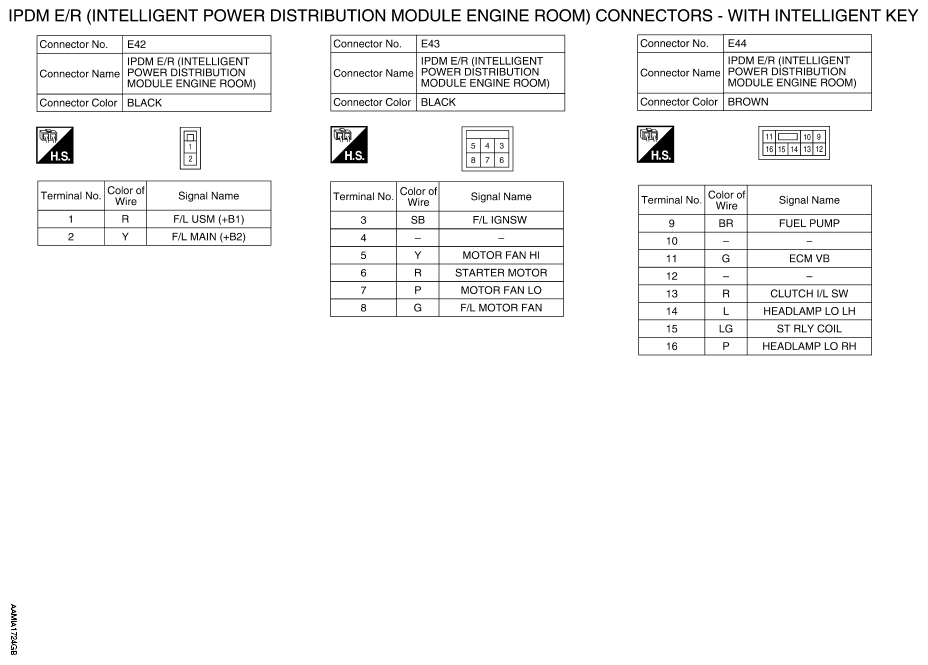

Fig 1: Intelligent Power Distribution Module Engine Room Connector End View (1 Of 3)
G09605048Courtesy of NISSAN NORTH AMERICA, INC.

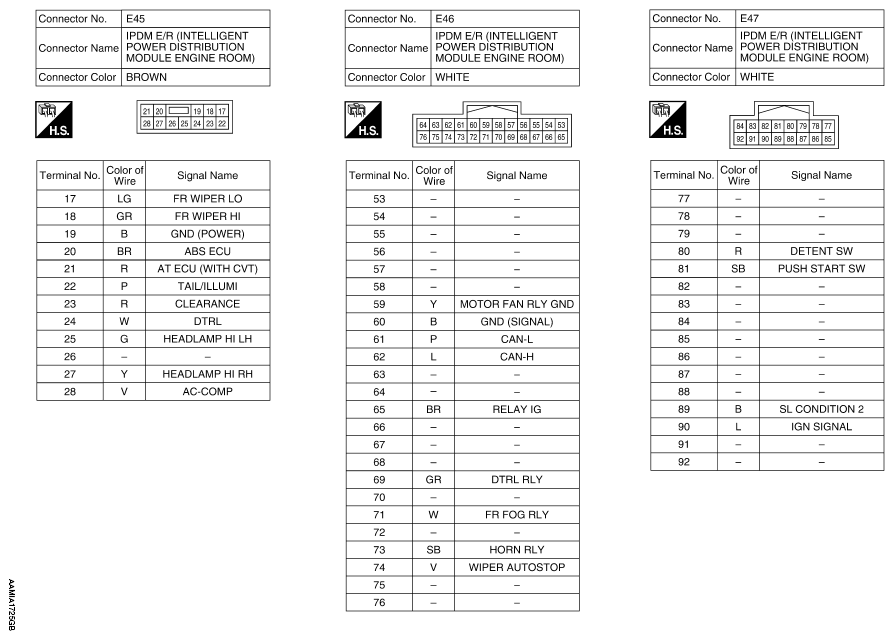

Fig 2: Intelligent Power Distribution Module Engine Room Connector End View (2 Of 3)
G09605049Courtesy of NISSAN NORTH AMERICA, INC.

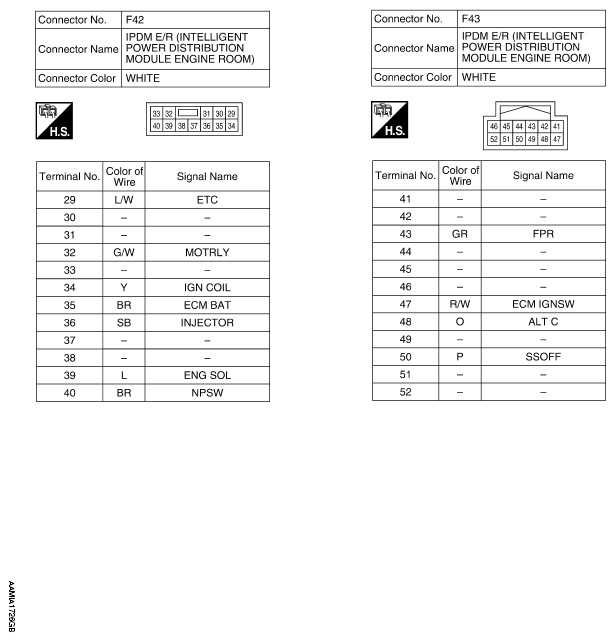

Fig 3: Intelligent Power Distribution Module Engine Room Connector End View (3 Of 3)
G09605050Courtesy of NISSAN NORTH AMERICA, INC.
