Removal and Installation: Removal

  1. Remove power window and door lock/unlock switch (RH) finisher door handle pull escutcheon.
  2. Remove screw (B) from power window and door lock/unlock switch (RH) finisher.
  3. Remove power window and door lock/unlock switch (RH) finisher (1) using a suitable tool (A).
    Fig 1: Removing Power Window And Door Lock/Unlock Switch (RH) Finisher Using Suitable Tool
    G09604542Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connector from the power window and door lock/unlock switch (RH).
  5. Release pawls and remove power window and door lock/unlock switch (1) from power window and door lock/unlock switch (RH) finisher (2) using a suitable tool.

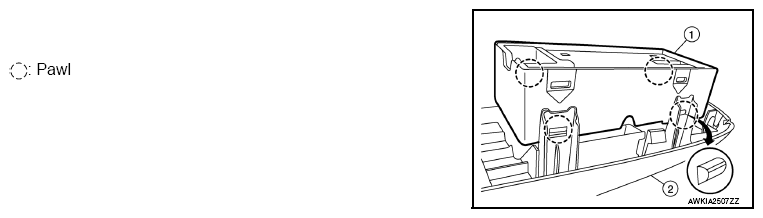

    Fig 2: Removing Power Window And Door Lock/Unlock Switch Using Tool
    G09604543Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not bend back the pawls on the switch finisher too far or damage may occur.
