Versa Note S Plus
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Front Door Glass And Regulator
>>
Exploded View
Exploded View

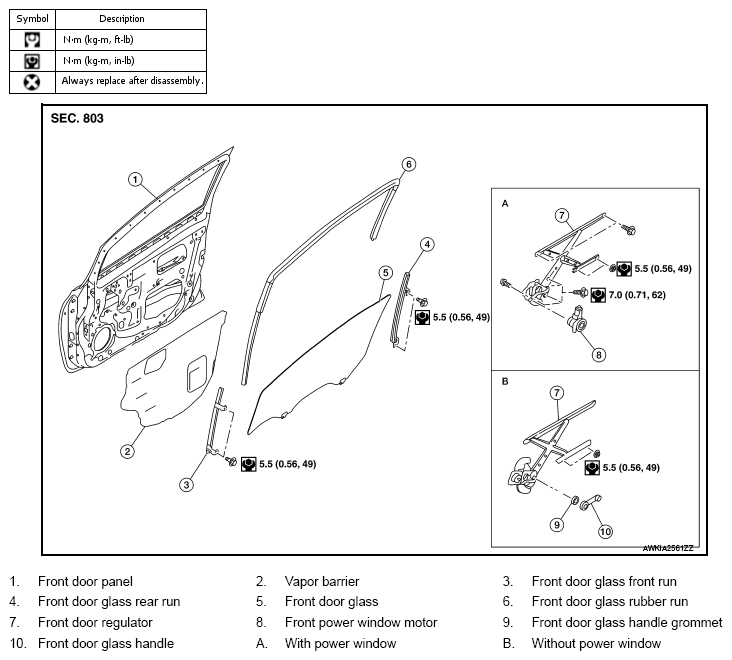

Fig 1: Front Door Glass And Regulator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
