DRIVER SIDE: Side Air Bag Module: Removal

  1. Remove the driver side seatback. Refer to "DRIVER SIDE: SEATBACK ".
  2. Open the seatback trim, pull the side air bag module (1) out of the chute (A) and remove.

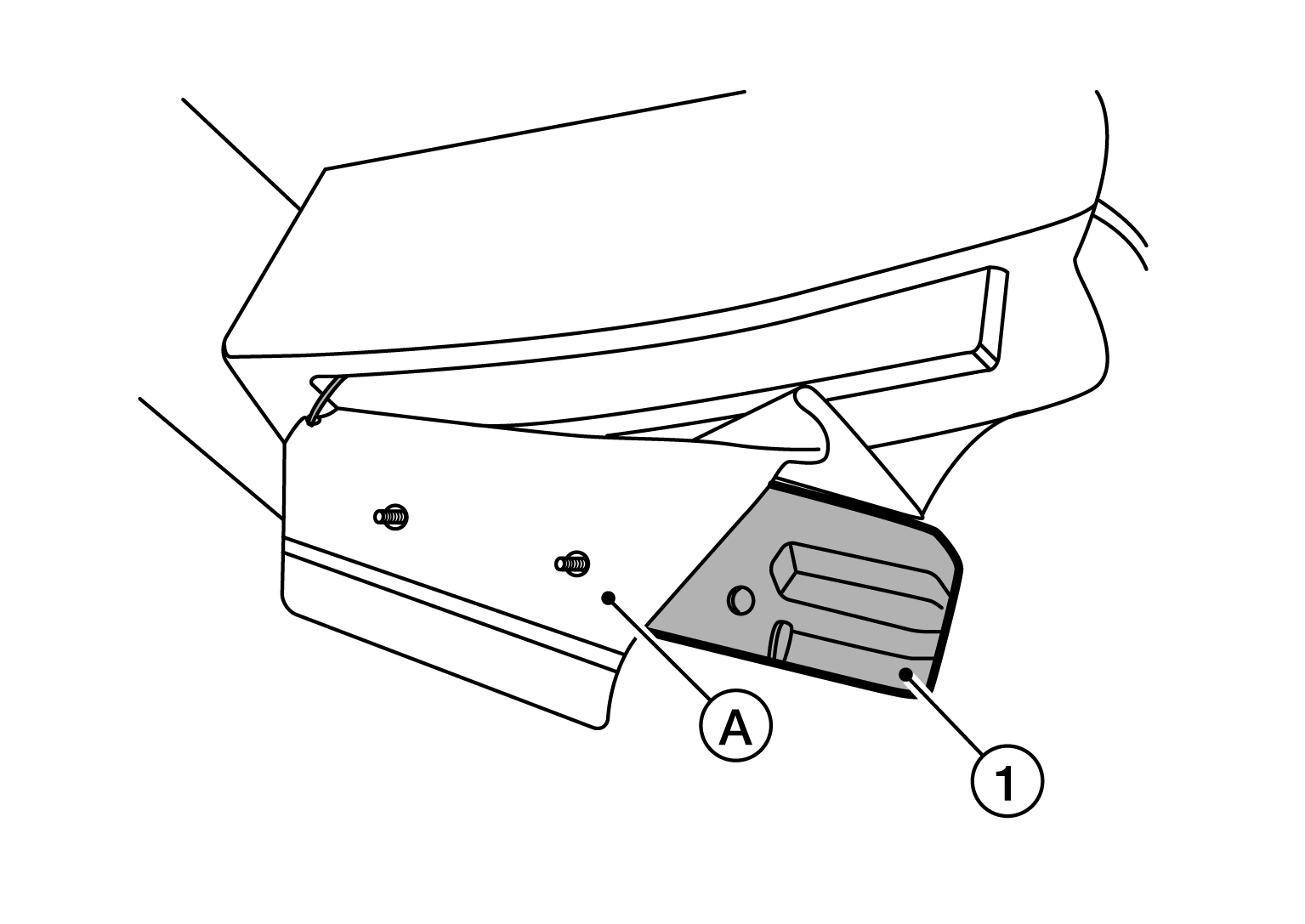

    Fig 1: Identifying Side Air Bag Module And Chute
    G09015330Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Replace the side air bag module if it has been dropped or sustained an impact.
    • Do not strike the side air bag module.

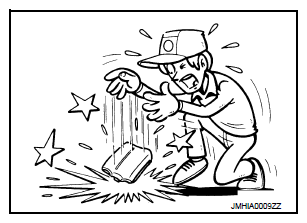

    Fig 2: Caution - Do Not Strike Side Air Bag Module
    G07015588Courtesy of NISSAN NORTH AMERICA, INC.
