Connector End Views

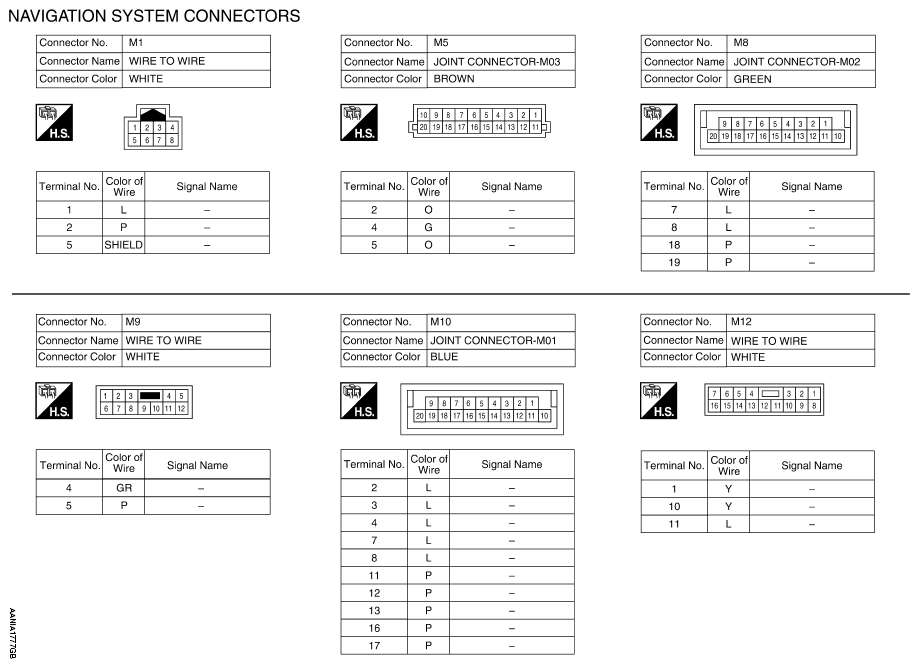

Fig 1: Navigation System Connector End View (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Navigation System Connector End View (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Navigation System Connector End View (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Navigation System Connector End View (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Navigation System Connector End View (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Navigation System Connector End View (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Navigation System Connector End View (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Navigation System Connector End View (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Navigation System Connector End View (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Navigation System Connector End View (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Navigation System Connector End View (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Navigation System Connector End View (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Navigation System Connector End View (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
