Symptom Table

  1. Perform the data monitor of CONSULT to check for any malfunctioning item.
  2. Check the malfunction combinations.

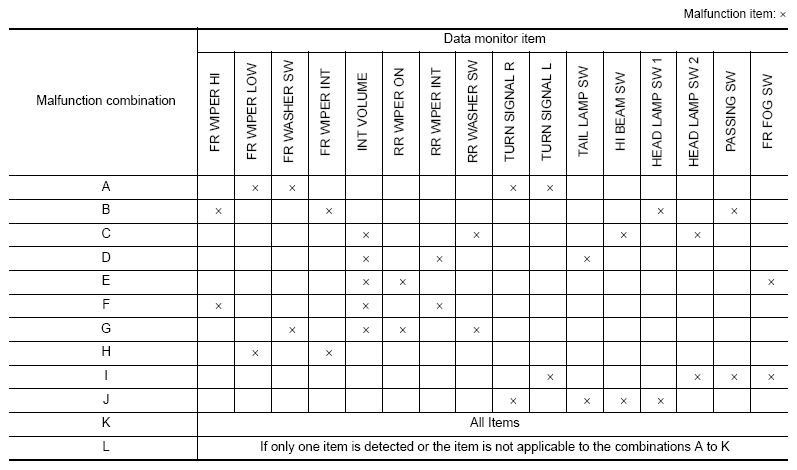

    Fig 1: Combination Switch System Symptoms Chart
    G09604930Courtesy of NISSAN NORTH AMERICA, INC.
  3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
    Malfunction combination Malfunctioning part Repair or replace
    A Combination switch INPUT 1 circuit Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    B Combination switch INPUT 2 circuit
    C Combination switch INPUT 3 circuit
    D Combination switch INPUT 4 circuit
    E Combination switch INPUT 5 circuit
    F Combination switch OUTPUT 1 circuit Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    G Combination switch OUTPUT 2 circuit
    H Combination switch OUTPUT 3 circuit
    I Combination switch OUTPUT 4 circuit
    J Combination switch OUTPUT 5 circuit
    K BCM Replace BCM. Refer to "REMOVAL AND INSTALLATION ".
    L Combination switch Replace the combination switch. Refer to "REMOVAL AND INSTALLATION ".
