Rear Side Air Bag Satellite Sensor

The rear side air bag satellite sensors are located behind the dash side lower finisher LH and RH. The rear side air bag satellite sensors send signals to the air bag diagnosis sensor unit during a side collision. These sensors may be identified by yellow connectors.

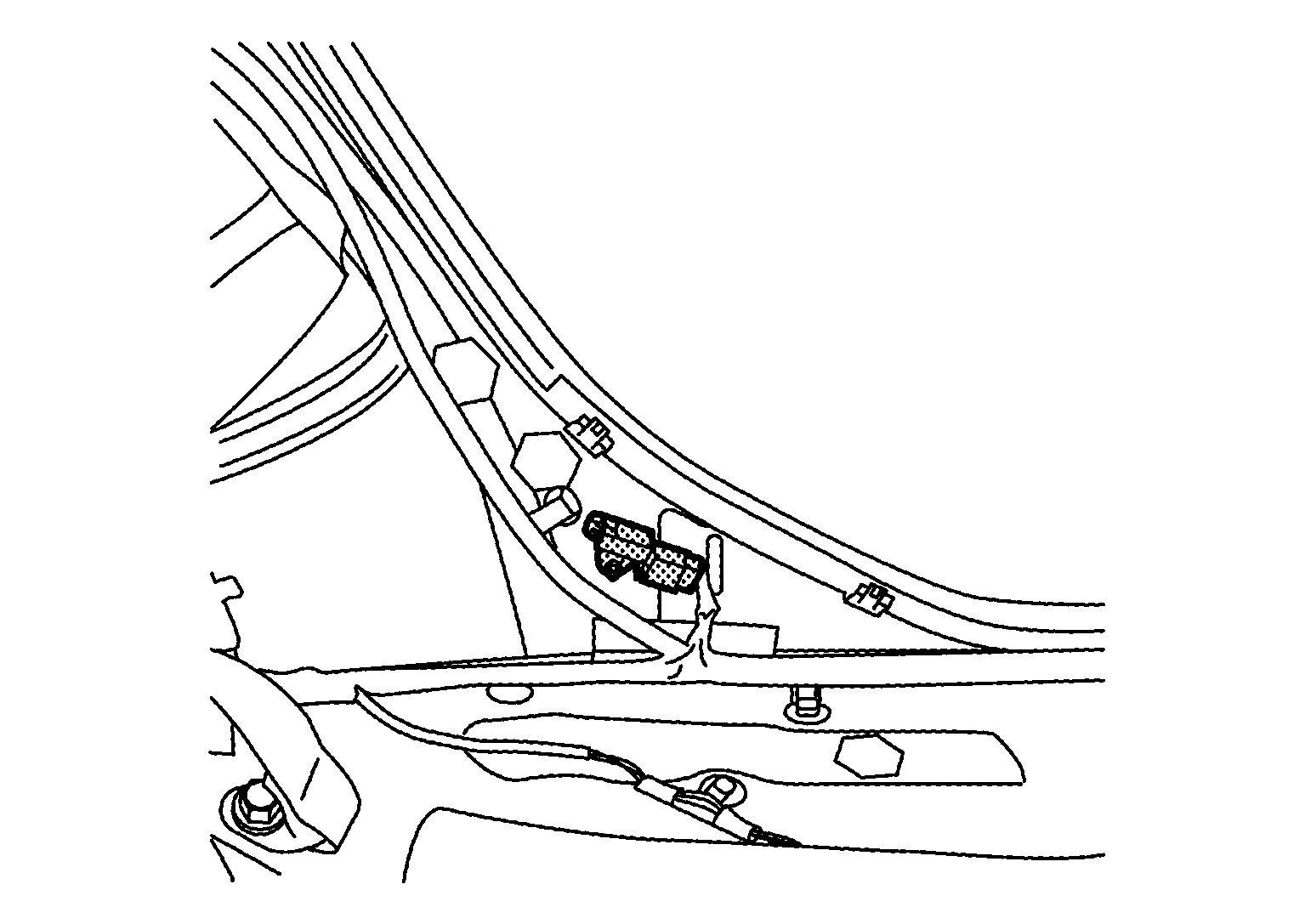

Fig 1: Identifying Rear Side Air Bag Satellite Sensor

Courtesy of NISSAN NORTH AMERICA, INC.
